EMLOK-16
MONITORING AND TRACKING SYSTEM EMLOK-16
CERTIFICATE:
EMLOK-16 is a security support system
In some situations, the ability to locate people effectively is one of the basic conditions for their safety. In mining / industrial facilities there may be places where hazardous substances are released as well as areas with very high or very low temperatures, and areas with potentially explosive atmospheres. People are not allowed to stay in such places for long periods of time. When a person is injured or loses consciousness, he or she needs help and thus needs to be located.
DESCRIPTION
EMLOK-16 is a security support system. It determines employee’s location using the TDOA method (Time Difference Of Arrival). It uses SID-16 and EMTAG-16 elements.
FEATURES/TECHNICAL SPECIFICATION
Key functions:

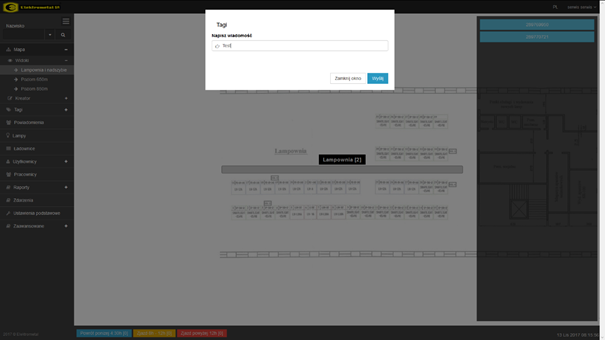

- Sending a text message to the employee (shown on the lamp display) with feedback when the message is received and read.

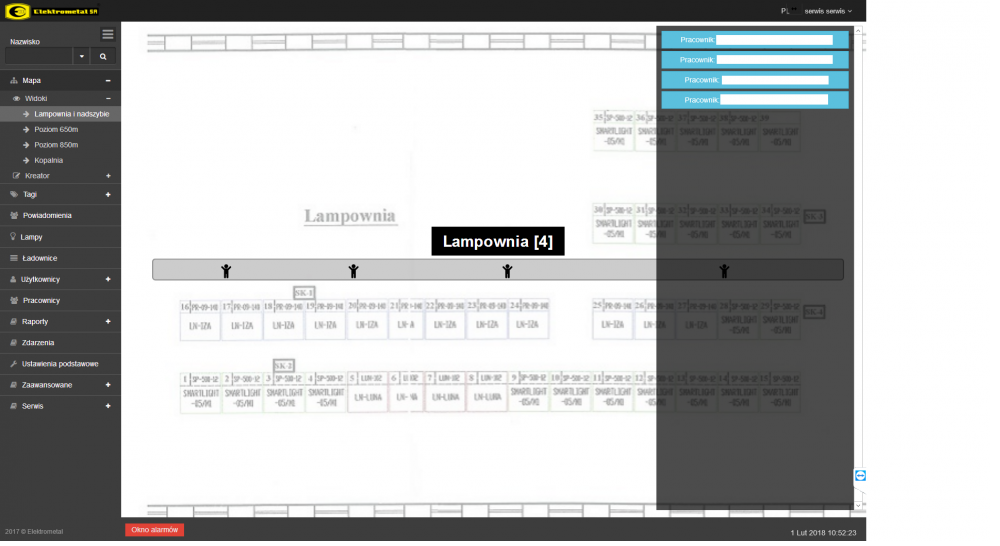

- Possibility to monitor the presence of employees in specific zones.
- Controlling the escape route by sending text messages and screening announcements on SLOGAN displays.

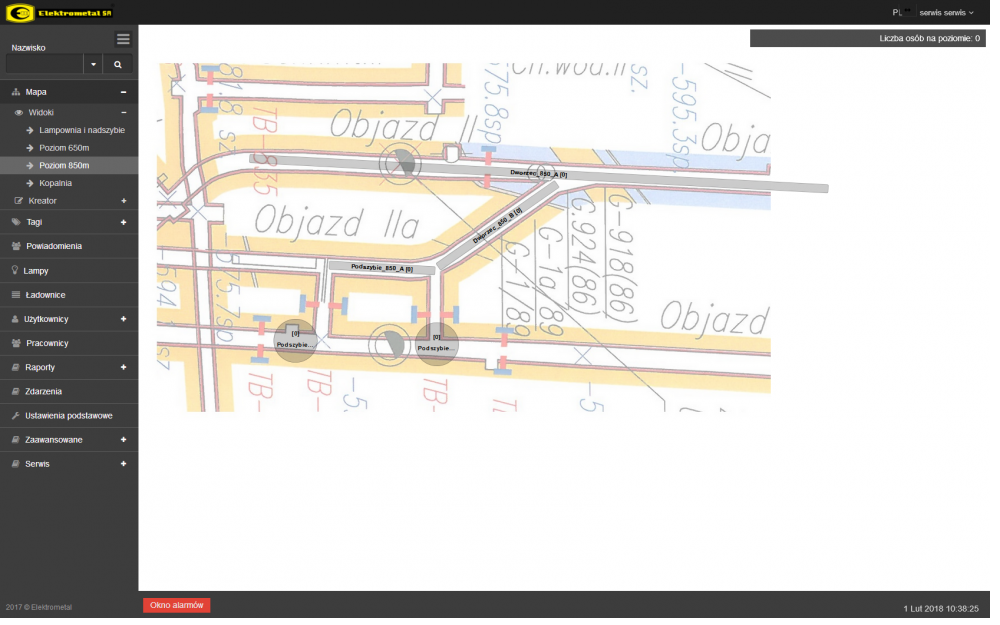

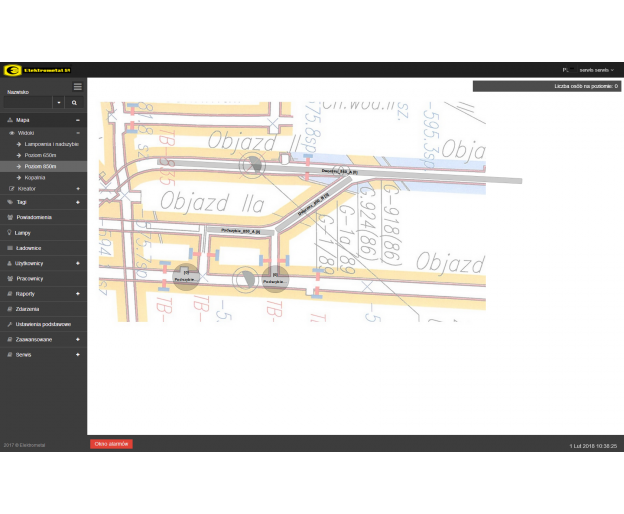

- Possibility to monitor the path taken by the employee.
- Full cooperation with SmartView.
- Ability to detect employee’s immobility (collapse).
- Ability to send messages to SLOGAN alphanumeric displays installed underground.
- In the event of a catastrophe, information about the last known location of the miners.
- Synchronisation with external databases.

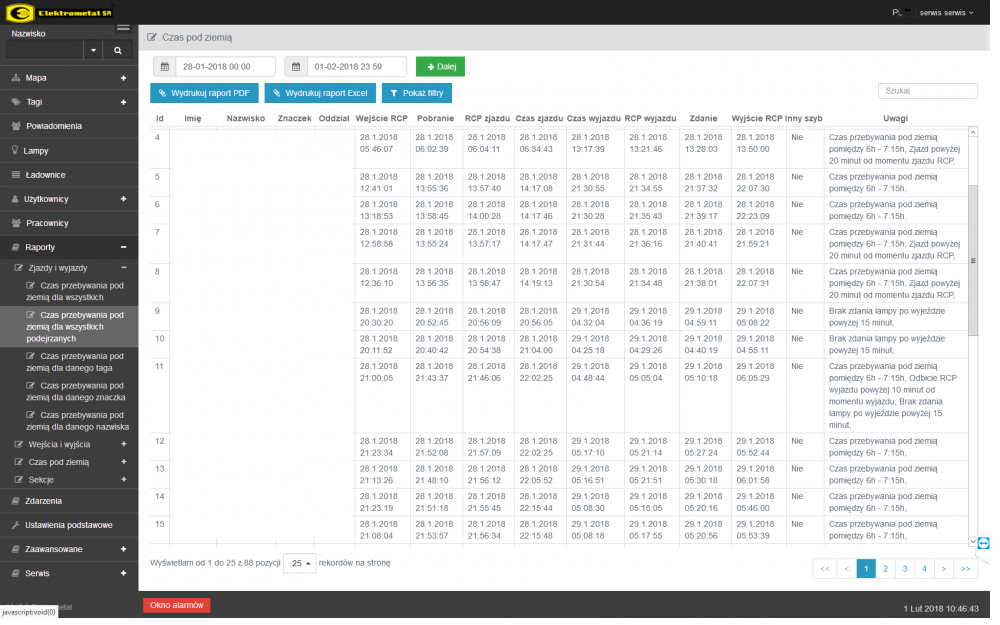

- Ability to report and export data to .pdf and .xls files.
- Possibility to adjust permissions to user needs.
- Possibility to limit access to personal data.
- Possibility to make data available to dispatch applications.
- Ability to synchronise employee’s data with Time and Attendance Systems.
- Warning about exceeded number of employees in danger zones.
- Possibility to install EMTAG-16 modules in other devices (e. g. methanometers) and transfer measurement data wirelessly to the surface.
