Intelligent ISO base control

ISO

CERTIFICATE:

The ISO Intelligent Haulage Control System is designed to optimise haulage operation and reduce losses caused by production stoppages.

Advantages:

Extension of the availability time of active haulage
Reduction of potential revenue losses
Low investment cost compared to potential benefits
Extending the life of machines and devices

DESCRIPTION

Implementation:

Installation of a COU-22 mined material presence sensor on each conveyor
Conveyor control system software update enabling implementation of the innovative haulage control algorithm
Optional SCADA system modification

FEATURES/TECHNICAL SPECIFICATION

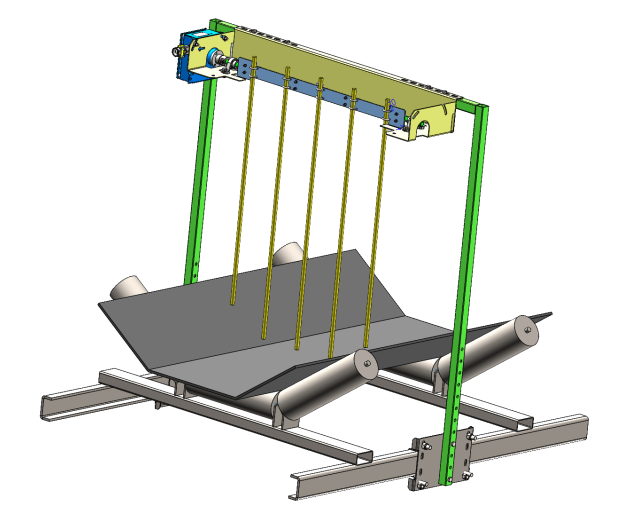

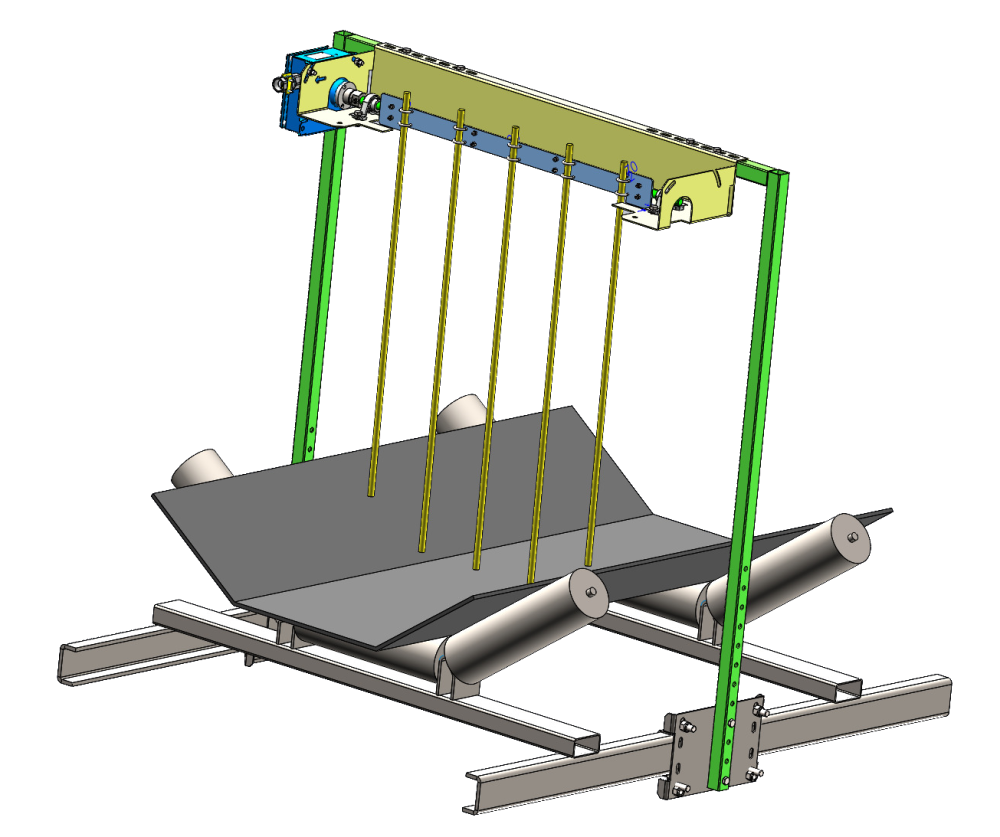

The main element of the intelligent ISO haulage control is the COU-22 mined material presence sensor, which, in cooperation with the ELSAP system controllers and the UGS-10 system, is a device for detecting mined material on the conveyor belt.
The operating status is indicated by a two-colour light-emitting diode placed in the device housing, while the output contacts connected to the terminal strip are appropriately controlled.

Device parameters.
Parameter name	Value (unit)
Rated supply voltage	11-15V
Power consumption	20mA
Inlet choke diameters	6-10 mm or 10-15 mm or 14-21 mm
External dimensions	240x233x123mm
Mass	3.2kg
Intrinsically safe parameters
ATEX marking	I M2 Ex ib I Mb
EC type examination certificate number	JSHP 22 ATEX 0050
Degree of protection	IP54
Ambient temperature range	-20°C to 40°C
Parameters of intrinsically safe circuits.
Pins Z+,Z-	Ui=15.8V, Ii=2A, L_and = 0; C_and = 0
Terminals WN1+, WN1-	AT_and = 30.0V ; I_and = 0.2A;P_and = 450mW; L_and = 0; C_and = 0
Terminals WN2+, WN2-	AT_and = 30.0V ; I_and = 0.2A;P_and = 450mW; L_and = 0; C_and = 0
