LiteCom PRO III Ex

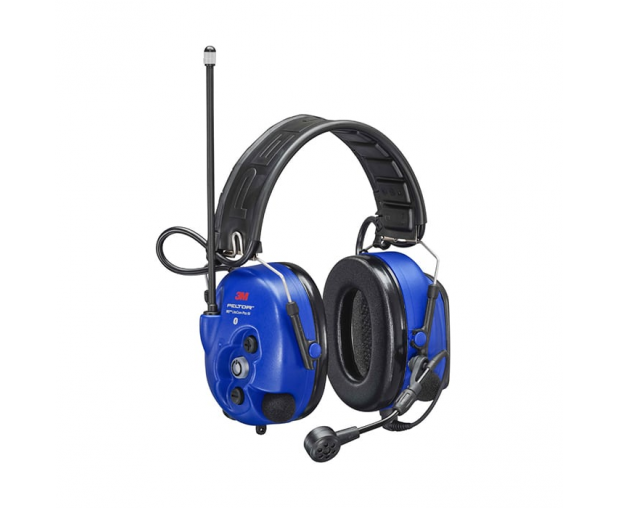

LiteCom PRO III Ex Wireless Headset
CERTIFICATE:
The ATEX approved LiteCom Pro III Ex headset offers wireless communication in noisy environments. Suitable for use in the oil and gas industry, mining and where intrinsic safety is required.
- I M1 Ex ia I Ma -20°C ≤ Ta: ≤ +50°C
- II 1G Ex ia IIC T4 Ga -20°C ≤ Ta ≤ +50°C Ga
- II 1D Ex ia IIIC T130°C Da -20°C ≤ Ta ≤ +50°C
DESCRIPTION
Functions
- Programmable two-way analog-digital DMR radio communication
- Multipoint Bluetooth® functionality
- Waterproof microphone (IP68)
- Listening to the environment with level-dependent hearing protection
- Voice menu with multiple language selection
- Push-to-Listen function
- Li-Ion battery
- Voice transmission (VOX)
- Busy channel indication
- Auto-off function
- Battery status indicator
- ATEX and IECEx intrinsically safe certificate
| Model | Libra |

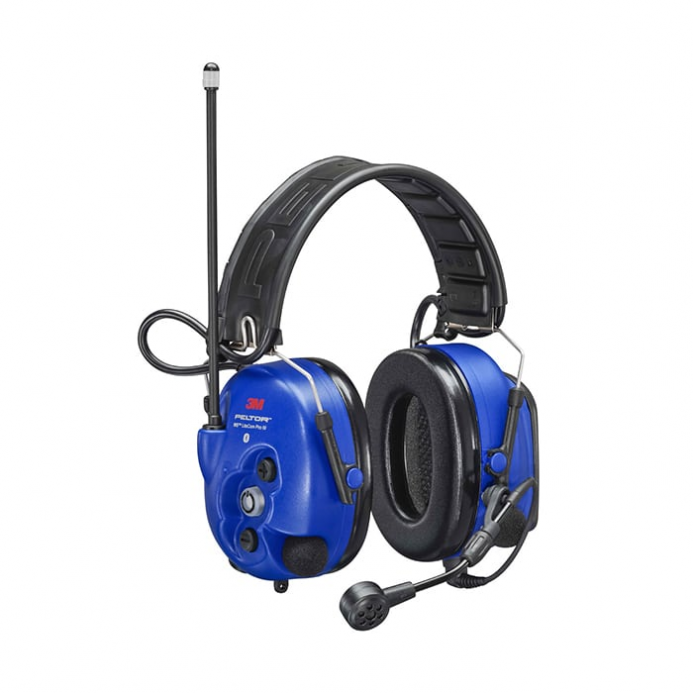

| Headband | 521g |

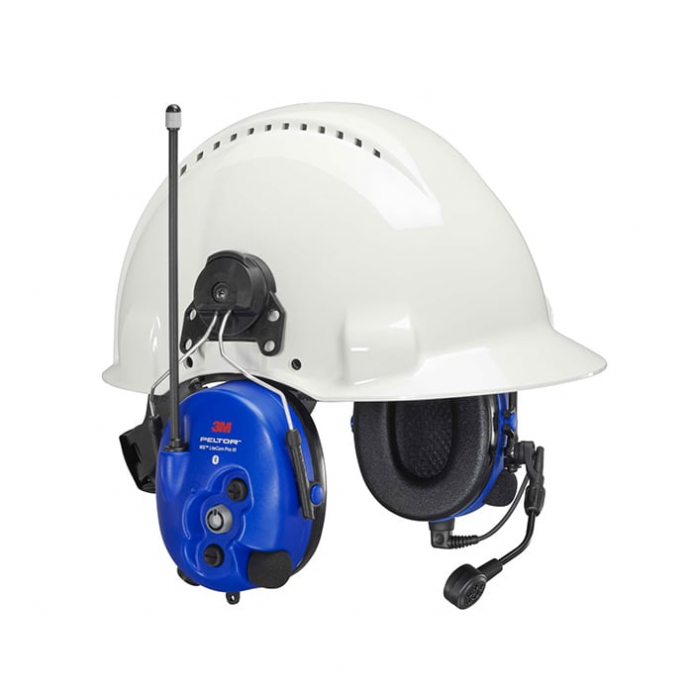

| Attached to the helmet | 512g |

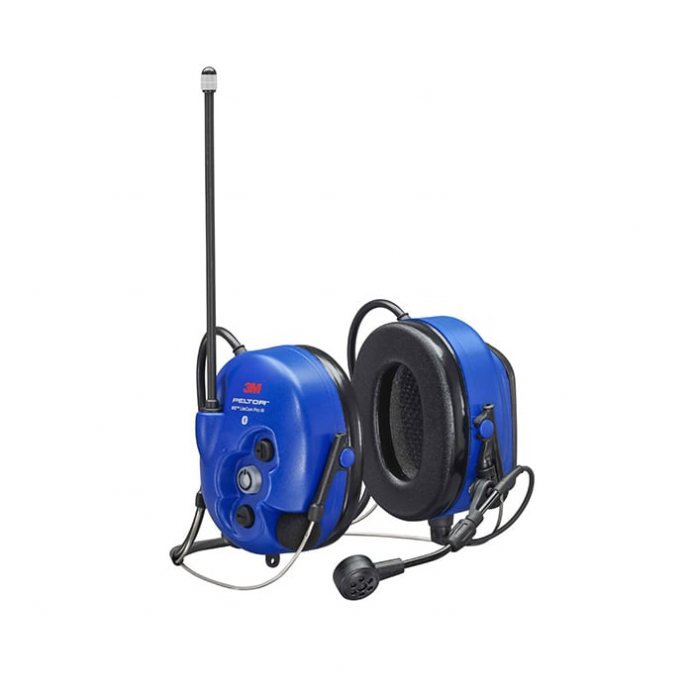

| Necklace | 475g |
FEATURES/TECHNICAL SPECIFICATION
| Technical data | |
| Frequency range | 403 -470 MHz |
| Mode of operation | Simplex |
| Channels | 70 programmable channels |
| Channel raster | 3.125 kHz |
| Channel separation | 12.5 kHz and 25 kHz |
| Modulation | Analog: 2.5 kHz (FM) and 5 kHz (FM) Digital: 2.5 kHz (4-level FSK) |
| Microphone type | Dynamic (MT73) |
| Receiver sensitivity | Typically -120dBm |
| Selective squelch | programmable (supports CTCSS and DCS) |
| Output power | 200 / 20 / 10 mW ER |
| Range | Outdoors up to 2km depending on conditions |
| Temperature range | -20 degrees C to + 50 degrees C |
| Power supply | |
| Li-Ion battery | ACK082 (included in delivery) |
| Charging time | approx. 10 - 12 hours |
| Capacity | 3.7V 1350mA, 5Wh |
| Operating time | 8h at 5/5/90 TX/RX/Standby) * It can be increased to 12 hours thanks to the energy saving function |
