EMWZ Ex

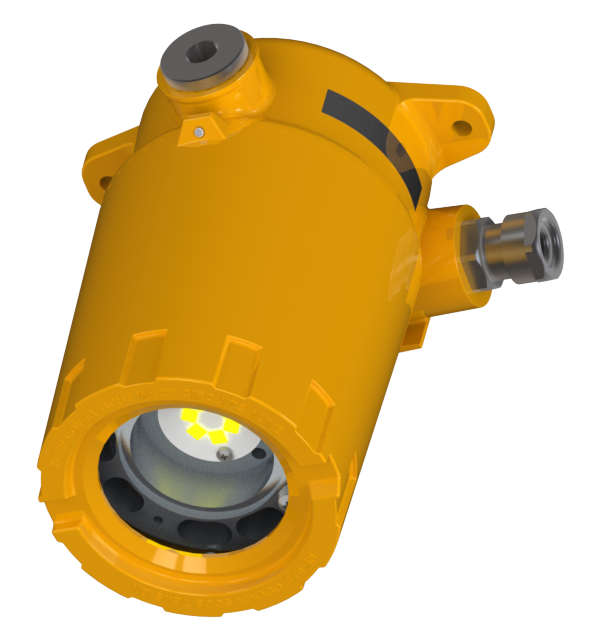

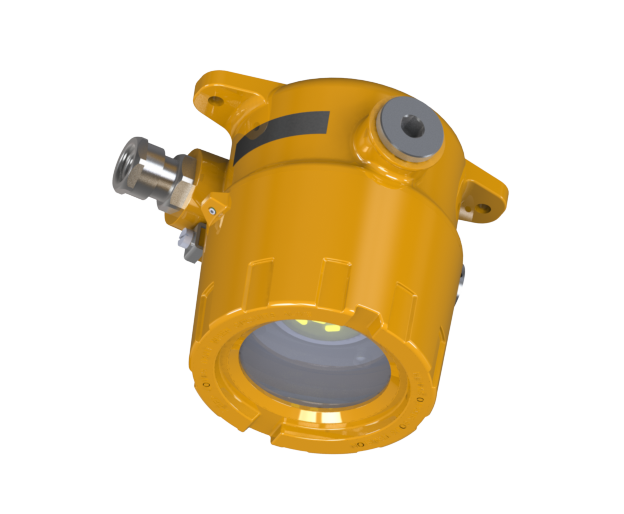

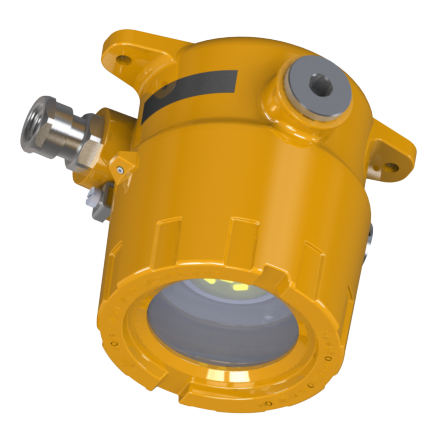

Sight glass fixture type EMWZ Ex
CERTIFICATE:
Zones 1, 21
II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC T85 C Db
DESCRIPTION
Sight glass fixture type EMWZ EX is used to iluminate flow viewfinders, pipelines, mixers, bioreactors, as well as
the interiors of pressure vessels, containers and other normally closed containers in potentially explosive
atmospheres. The flame-proof enclosure of the sight glass fixture type EMWZ Ex compries of body made of aluminium alloy, a sight glass (toughened sodium-silicon glass) and optional mounting elements.
the interiors of pressure vessels, containers and other normally closed containers in potentially explosive
atmospheres. The flame-proof enclosure of the sight glass fixture type EMWZ Ex compries of body made of aluminium alloy, a sight glass (toughened sodium-silicon glass) and optional mounting elements.
FEATURES/TECHNICAL SPECIFICATION
| Rated voltage |
220-240 V AC 50-60 Hz 12/24 V AC/DC - as option |
| Protection class | I |
| Ambient temperature | -35 C to + 55 C |
| Light sources | LEDs GU10, MR16 (4000 K other as option) |
| Ingress protection of luminarie | max IP 68 - depending of kable gland used in luminarie |
| Impact resistance | IK 08 |
| Weight | 1,7 kg |
