EMPC-15

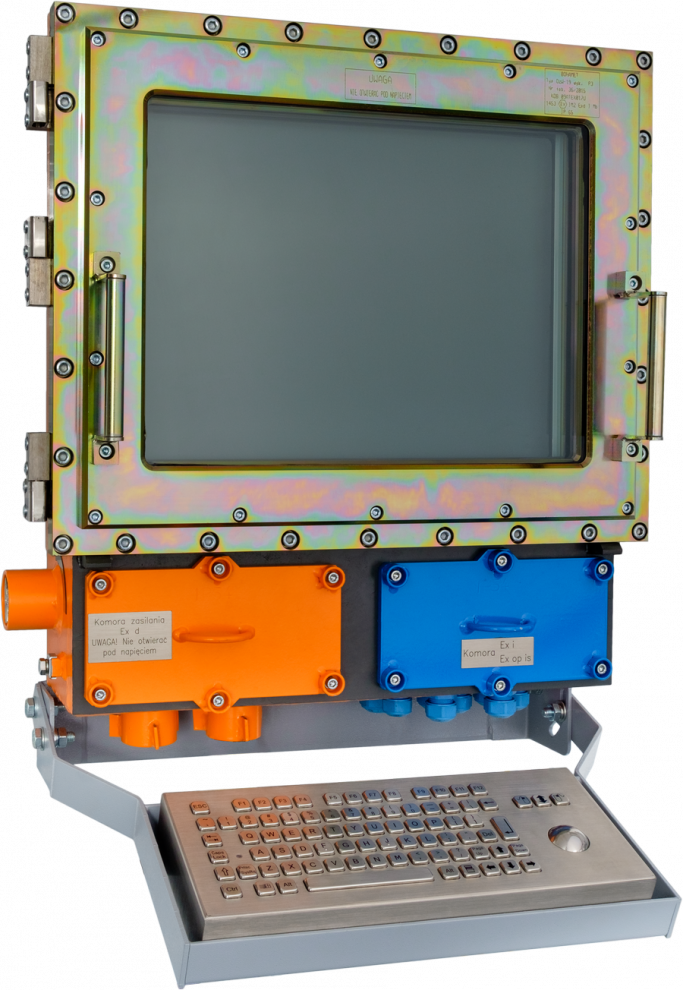

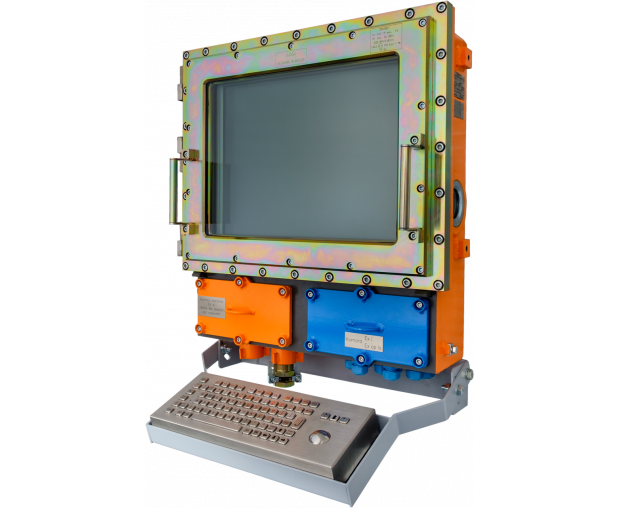

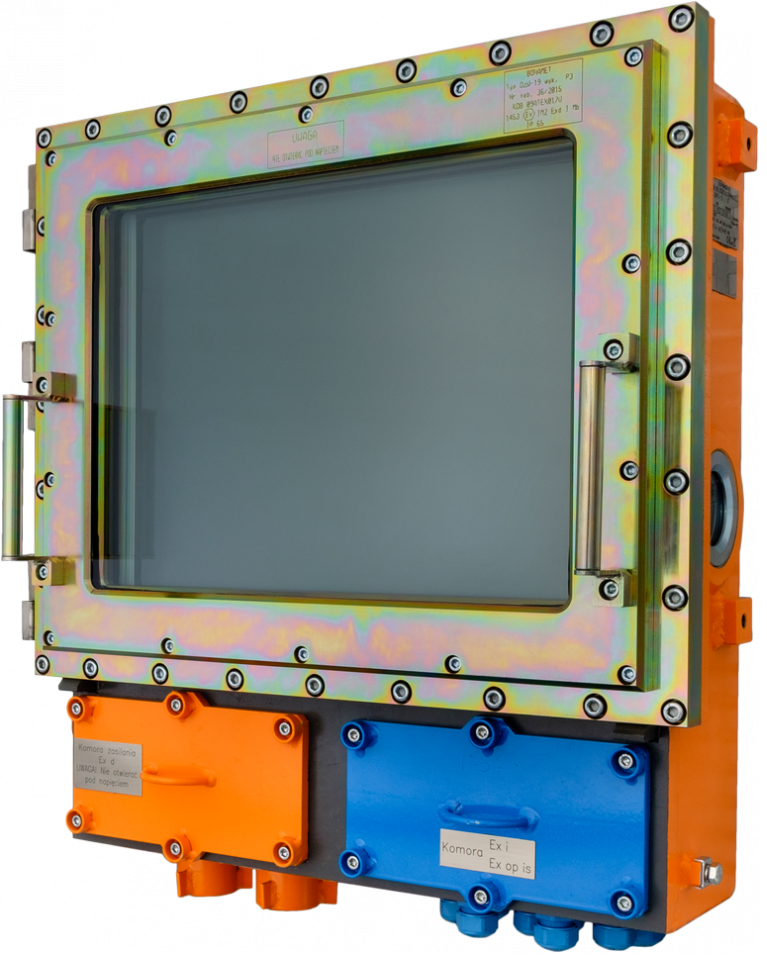

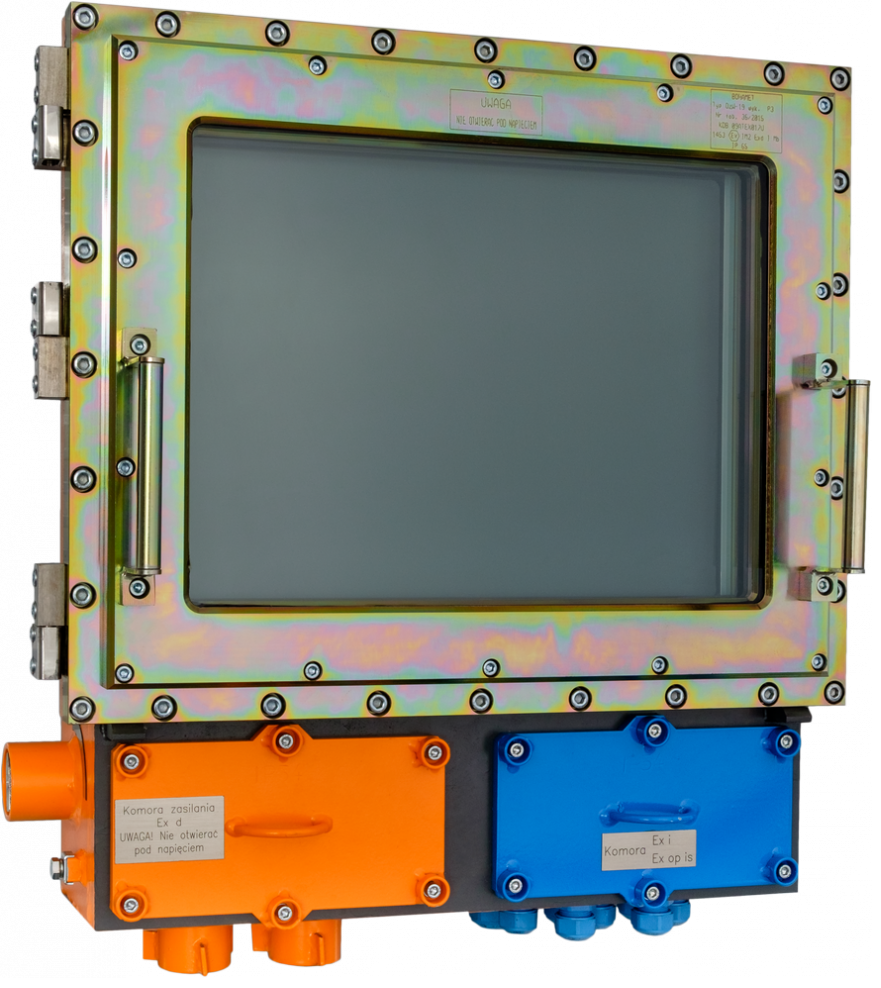

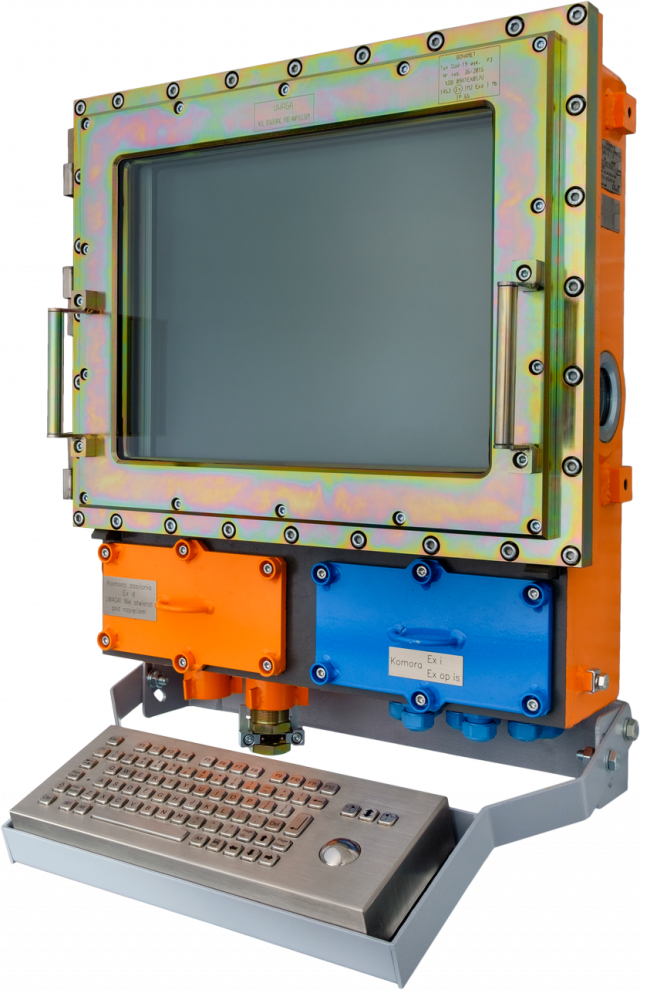

EMPC-15 FLAMEPROOF COMPUTER
Depending on the requirements, it is available in several different configuration options. It can be equipped with a 19 "or 24" screen.
Communication with other devices is possible via the RS-485 serial port, via PLC modems via the power supply line or via 100BaxeFX fiber optic Ethernet [op is].
As a standard, it can have from one to six fiber optic connectors, with the possibility of configuring connections in the RING topology (if necessary, guarantee a reliable connection with an external device).
Computers are powered by 42VAC or 127VAC to 230VAC guaranteeing full flexibility during installation.
The heart of the EMPC-15 computer is the central unit. It is a passively cooled industrial computer with an extended working temperature range and increased resistance to vibrations. Standard magnetic disks have been replaced by SSD disks with additional protection against sudden power loss.
Computers can be delivered with the Windows or Linux operating system installed.
Specially dedicated versions are also available for use in the underground chambers of the blasting shots. In this version, the computer is equipped with an additional QR code reader, WiFi network card and a double fiber-optic interface.
The computer may be equipped with an RFID card reader, then the user may log in to his account after reading the card correctly.
|
Parameter name |
Value (unit) |
|
|
Name |
EMPC-15 |
|
|
Screen diagonal |
19” LED |
24” LED |
|
Type of execution depending of the screen |
EMPC-15/19” |
EMPC-15/24” |
|
Screen resolution |
1280 x 1024 |
1920 x 1024 |
|
Nominal voltage: ver. 1,2,3,4,5,6,7,8,9 ver. 10 |
42V ±10% or 120 ÷ 230V -15% +8% 120 ÷ 230V -15% +8% |
|
|
Frequency |
50/60Hz |
|
|
Power consumption |
Max. 100W |
|
|
ATEX markings: ver. 1, 2, 6, 8 ver. 3, 4, 5, 10 ver. 7, 9 |
I M2(M1) Ex d [ib] [ia op is Ma] I Mb I M2(M1) Ex d [ib] [op is Ma] I Mb I M2(M1) Ex d [ib] [ia Ma] I Mb |
|
|
WE type certification number |
TEST 15 ATEX 0018X |
|
|
International protection rating |
IP65 – main chamber IP54 – connection chamber |
|
|
Ambient temperature range |
0°C - 40°C |
|
|
Humidity (in temperature 40°C) |
95% |
|
|
Weight |
~130kg |
~235kg |
|
Dimentions |
540 x 575 x 200/310mm |
760 x 740 x 400mm |
|
Power cable diameter |
15-25mm |
|
|
Cable diameters for intrinsically outputs |
gland M20: 6-8mm, 8-11mm, 11-15mm gland M25: 9.5-12.5mm, 12.5-16mm, 16-20.5mm |
|
