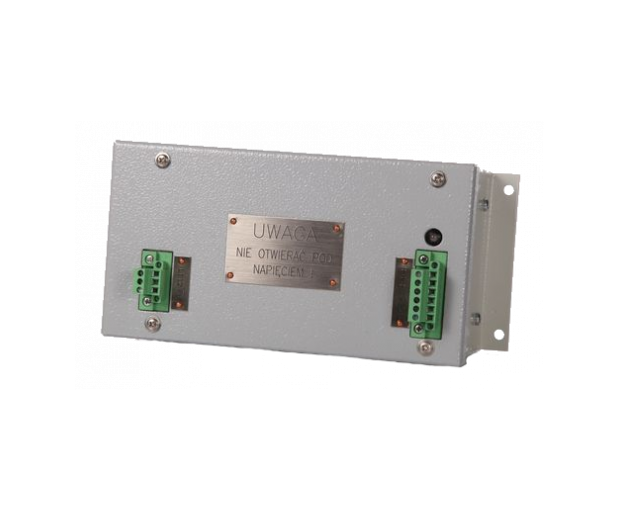

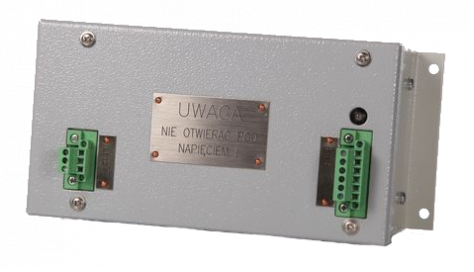

ZIL-17 Intrinsically Safe Power Supply
CERTIFICATE:
The power supply with intrinsically safe output was designed as an accompanying device with a degree of protection IP20.
It is designed for surface mounting outside the explosion hazard zone or inside a flameproof enclosure. It can be powered by a voltage from 42VAC to 250VAC or in a low voltage version from 24VAC to 42VAC.
The intrinsically safe output has standard parameters, i.e. voltage 12VDC or 15VDC with a current output of 0.85A; 1.45A or 1.9A
It is designed for surface mounting outside the explosion hazard zone or inside a flameproof enclosure. It can be powered by a voltage from 42VAC to 250VAC or in a low voltage version from 24VAC to 42VAC.
The intrinsically safe output has standard parameters, i.e. voltage 12VDC or 15VDC with a current output of 0.85A; 1.45A or 1.9A
DESCRIPTION
The basic function of the ZIL-17 power supply is to provide a constant voltage of 12 or 15 V, with a current limitation of 0.85 A, 1.45 A or 1.90 A. Each power supply has a two-color LED to indicate the operating status of the power supply (green - correct operation, red - failure).
Among all versions, any combination of output current and voltage is available.
The full name of the ZIL-x/17/y/z power supply contains the following defining elements:
x – output voltage typically 12V or 15V
/17/ - device model
y – maximum usable output current 0.85A, 1.45A or 1.9A
z – version (S – basic version, H – hermetic, HL – hermetic and low-voltage power input)
Example: ZIL-12/17/1,45/H – ZIL-17 power supply with output voltage of 12V, current of 1.45A in a hermetic design, power input type 42-250V.
Among all versions, any combination of output current and voltage is available.
The full name of the ZIL-x/17/y/z power supply contains the following defining elements:
x – output voltage typically 12V or 15V
/17/ - device model
y – maximum usable output current 0.85A, 1.45A or 1.9A
z – version (S – basic version, H – hermetic, HL – hermetic and low-voltage power input)
Example: ZIL-12/17/1,45/H – ZIL-17 power supply with output voltage of 12V, current of 1.45A in a hermetic design, power input type 42-250V.
FEATURES/TECHNICAL SPECIFICATION
| Parameter name | Value [unit] |
Rated supply voltage:
|
|
| Supply voltage frequency | AC: 50-60Hz DC: 0Hz |
| Maximum power | 75W |
| Maximum current | 3.5A 5A (perf. /HL) |
| ATEX marking | I (M2) [Ex ib Mb] I |
| Start time of power supplies typ. | <4s |
| Output voltage and current stabilization speed (for the worst result: ΔI=1.45A & ΔU=15V) | typ. 6.5ms |
| Maximum wire cross-section | 2.5mm2 |
| Ambient temperature range | -20 to 60 degrees Celsius |
| Permissible humidity (at 40°C) | 95% |
| Degree of protection | IP20 |
| Mass | 3kg (versions /S) 5kg (versions /H and /HL) |
| External dimensions (mm) | 245x117x127 |
