TAB-EX 01/ II 3G

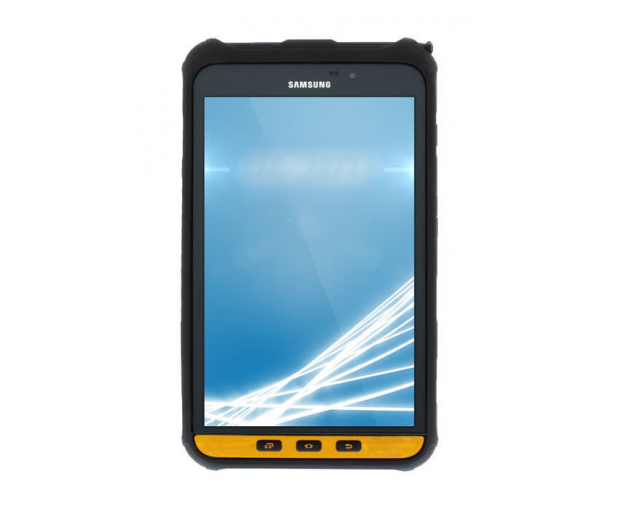

Tablet TAB-Ex 01/II 3G

CERTIFICATE:
Light tablet Ex 01 based on Samsung Galaxy Tab Active

The Tab-Ex 01 hazardous area tablet brings new customer-centric solutions and improved ease of use to mobile workers in the oil and gas, refining, chemical, pharmaceutical and other industries with hazardous areas.

  • II 3G Ex ic IIC T5 Gc Ta = -20 °C to +55 °C
DESCRIPTION
Lightweight and compact, running on Android 5.1.1 (optional 4.4.4), Tab-Ex® is suitable for a variety of mobile worker roles performing a range of applications such as asset surveys, material tracking, operator rounds, inspection and maintenance.
The 8-inch screen allows standard desktop applications to become mobile in hazardous areas, allowing workers to view and interact with SCADA/DCS systems, enterprise systems (SAP, Maximo), and computer-aided design systems.

Built-in cameras (optional) and a full range of wireless connectivity features that enable equipment faults to be detected during inspection and maintenance work, making them immediately visible to those who need to diagnose the problem and determine further action.

Functions
  • Replaceable sim card
  • Global Certificates - One Common Platform
  • Android 5.1.1 operating system (optional 4.4.4)
  • wireless capabilities such as WWAN, 4G LTE, WLAN, etc.
  • Camera: 3MPx with flash and barcode scanner (rear) and 1.3MPx (front)
  • Samsung KNOX
  • Can be used with gloves
  • NFC technology
  • GPS
  • IP67
FEATURES/TECHNICAL SPECIFICATION
Operating System Android™ 5.1.1 Lollipop (optionally 4.4.4 KitKat)
Processor Quad-core 1.2 GHz processor
Memory and
Storage
RAM 1.5GB
ROM 16 GB, with microSD up to 64 GB (optional)
Weight 562.1g
Dimensions 131.1 x 225.1 x 13.6 mm (incl. protective case)
world's thinnest Zone 2 / DIV 2 tablet - 13.6 mm
Display 8" TFT display with 1280 x 800 pixels
Environmental Operating temperature -20 ... +55 °C
WWAN 4G LTE* (optional)
Category 4: 800 / 850 / 900 / 1800 / 2100 / 2600
UMTS (3G) / HSPA (3.5G): 850 / 900 / 1900 / 2100
GPRS/EDGE (2G): 850/900/1800/1900
Bluetooth® Bluetooth SmartReady LE 4.0
Wireless LAN WiFi 802.11 a/b/g/n
Power up to 11 hours battery life / 4450 mAh
Camera 3 MP with rear camera
Flash with Barcode Scanner capability
1.3MP front camera
Security Samsung KNOX™
  • EMM (MDM+IAM)
  • Secure file management
  • H/W & S/W Secure platform
Programmable keys Yes
