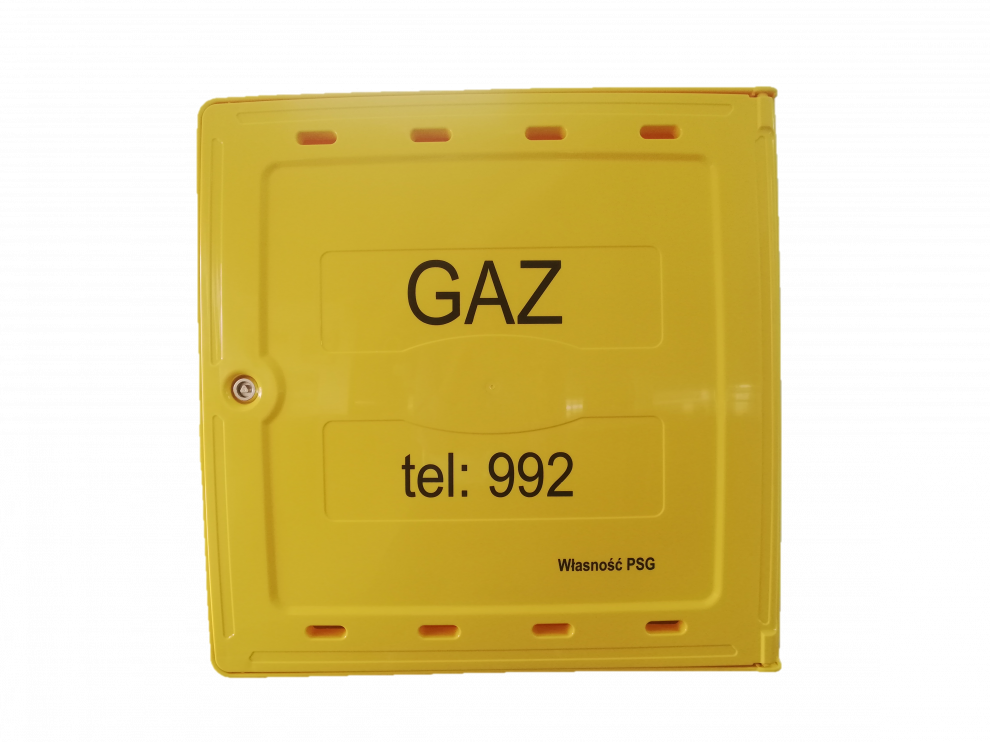

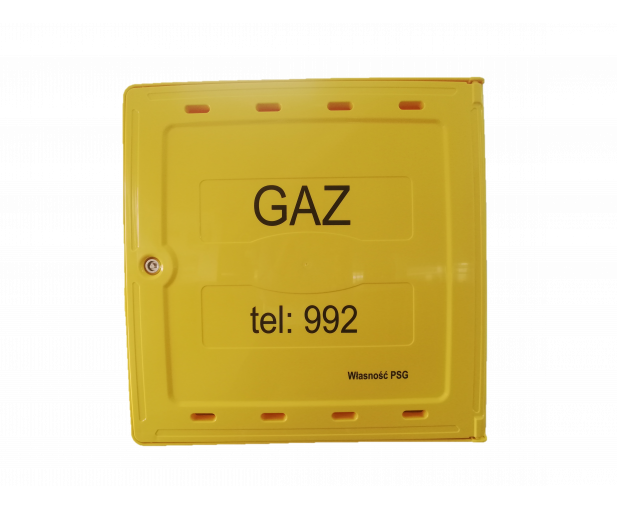

GAS CABINET SX600+

The cabinet allows for the assembly of a system with gas meters of the following types: G 1.6; G2.5; G4; G6 with a spacing of 130 mm. The cabinet is made of high-quality flame-retardant, self-extinguishing plastic with high mechanical strength, resistant to atmospheric factors, aggressive chemical factors and mechanical deformations. The cabinet has a smooth housing surface that prevents the deposition of impurities and increases resistance to moisture penetration, is resistant to ultraviolet radiation (UV) and does not require maintenance. The door is mounted on metal hinges that allow opening at an angle of up to 180°, and is equipped with a universal, metal lock, the end of which is made in the shape of an equilateral triangle with a side of 9 mm. Both the lock and the key are resistant to corrosion. The elements are adapted to be opened using a fireman's axe. The cabinet can be equipped with a monoconnector made in a way that prevents the relative position of the screw connections in which the gas meter is mounted from changing. Depending on the needs of the Ordering Party, the connection can be in the following configurations:

• with elbow and half screw on two sides (for low pressure supply) MW130-1
• with elbow and half screw on the right side and 180 degree outlet (with medium pressure supply) MW130-2

The cabinet set includes the following elements:

• SX600+ cabinet (body and door with metal lock),
• metal key,
• a handle that stabilizes the underground part of the gas connection installation in the cabinet.

On request: MW130 mono connector for measuring point or measuring reducer

• PTX600 plastic base,
