LS-12

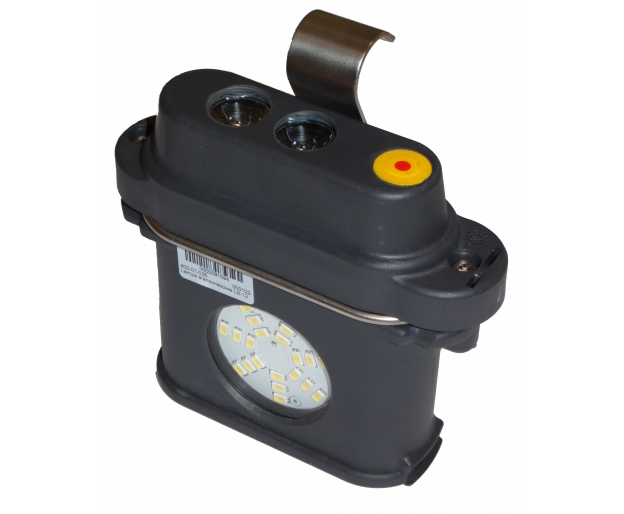

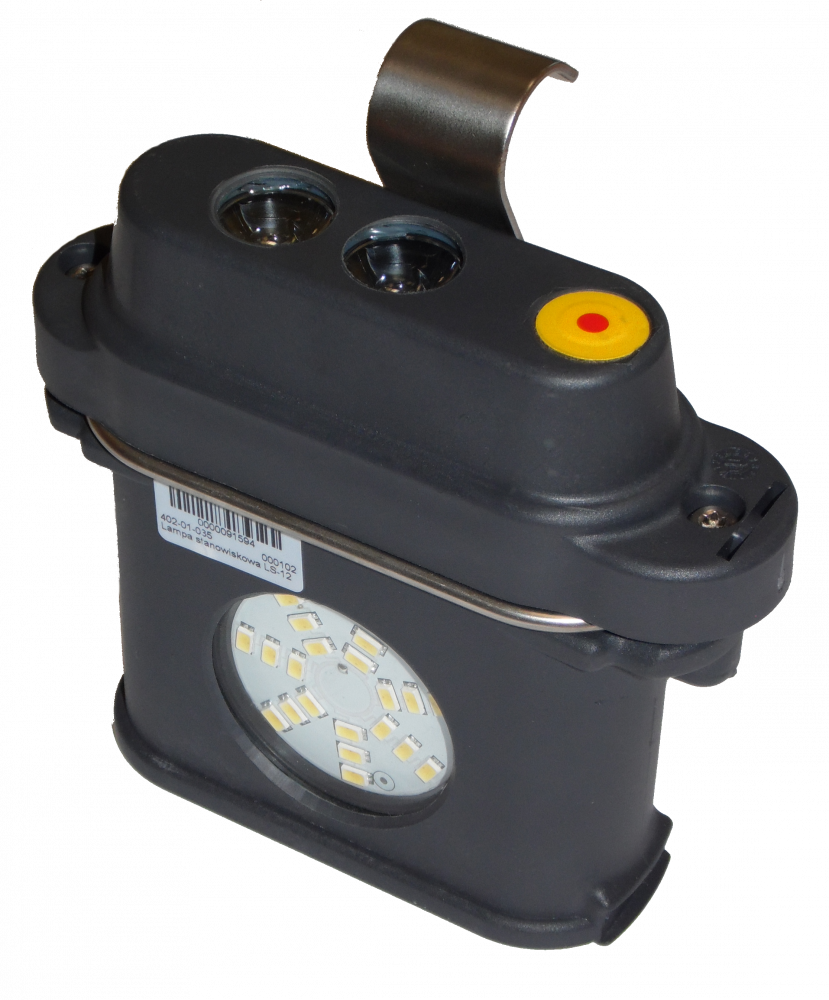

LS-12 PORTABLE LAMP
I M1 Ex ia I Ma
The LS-12 station lamp can be used for temporary auxiliary lighting of work places. The integrated battery eliminates the need for any external PSUs. The solution is intended for use in methane and/or coal dust explosive atmospheres. The Cat. M1 enclosure makes the product usable in explosive atmospheres.
The LS-12 station lamp is a small, lightweight device for temporary auxiliary illumination of work places. Its enclosure and other solutions come from the SMARTLIGHT-05 lamps. The lamp is charged with the same chargers as helmet lamps, which are available at virtually every mine in Poland.
The lamp features two LED light sources: the scattered LED light on the side panel and the focused beam LED, placed in the shroud. The nominal luminous flux of both light sources is ca. 100 lm. This gives the light intensity at 1 m of distance of ca. 1800 lx for the focused beam and 22 lx for the scattered LED. The lamp can shine in one of the three available modes, which are selected with the button on the shroud:
- Scattered light
- Focused beam light
- Focused beam light (at 20% of rated output)
|
Maintenance-free dry battery |
Li-Ion 9Ah |
|
Battery charging cycles |
min. 500 cycles |
|
Light source: (scattered) |
21 diodes LED |
|
Light source: (focused beam) |
2 diodes LED |
|
Light source life |
50 000 h |
|
Minimum light time (with operative and fully charged battery) |
24 h |
|
Maximum charging time |
10 h |
|
Ingress protection |
IP 65 |
|
Ambient temperature range |
between -5°C and +40°C |
|
Acceptable humidity at +40°C |
up to 95% |
|
Weight |
0,9 kg |
|
Outer dimensions |
142 x 130 x 72 mm |
