NLS-6 LED

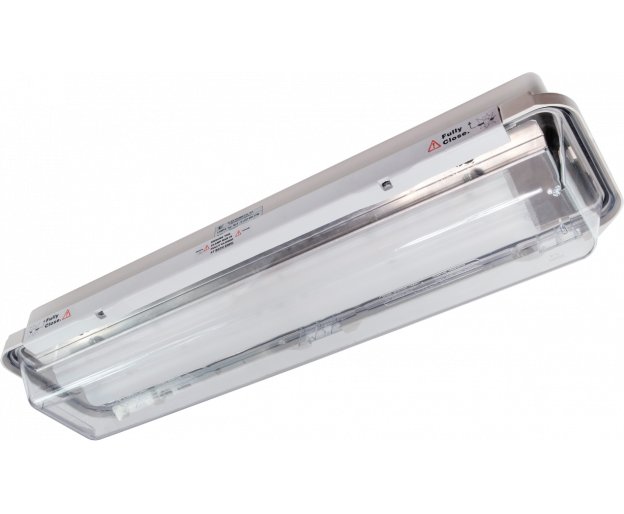

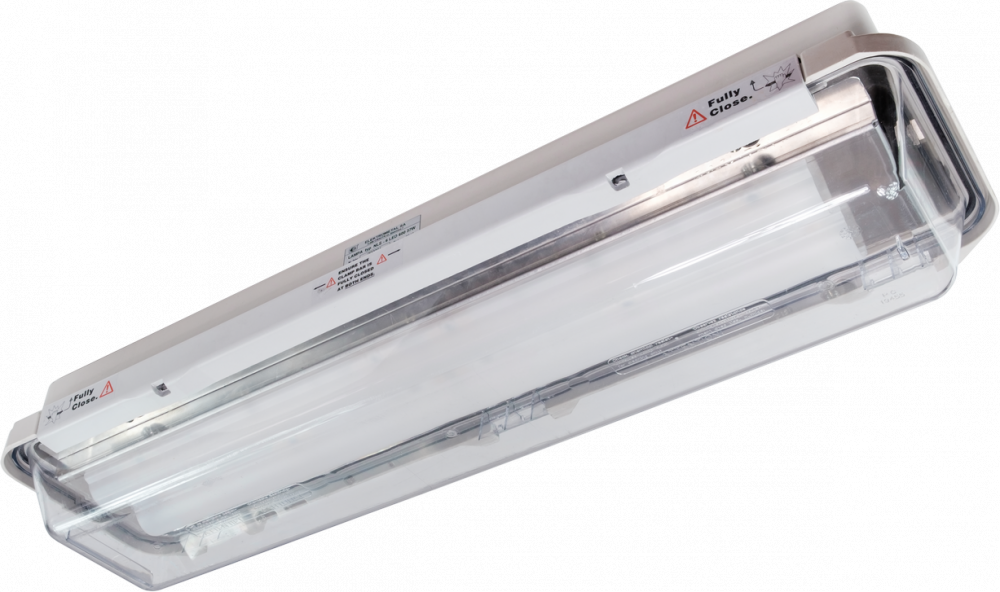

NLS-6 LED lamp
NLS-6 LED lamps are produced in several versions:
- Lamp type NLS-6 LED 600 20W - Power: 20W (1 row of LED modules)
- Lamp type NLS-6 LED 600 37W 1 - Power: 37W (1 row of LED modules)
- Lamp type NLS-6 LED 600 37W 2 - Power: 37W (2 rows of LED modules)
- Lamp type NLS-6 LED 600 37W 2 - Power: 37W (angular, 2 rows of LED modules)
- Lamp type NLS-6 LED 1200 37W - Power: 37W (1 row of LED modules)
- Lamp type NLS-6 LED 1200 70W 1 - Power: 70W (1 row of LED modules)
- Lamp type NLS-6 LED 1200 70W 2 - Power: 70W (2 rows of LED modules)
- Lamp type NLS-6 LED 1200 70W 2 - Power: 70W (angular, 2 rows of LED modules)
NLS-6 LED lamps can operate in any position and do not cause a stroboscopic effect
NLS-6 LED lamps are constructed using a corrosion-resistant glass fibre reinforced polyester body and a polycarbonate diffuser.
The lamps consist of three basic units: a complete housing, a reflector assembly and a lampshade. The electrical system is mounted partly in the complete housing, i.e. terminal strips and partly on the lamp reflector on which the LED module with a diffuser and the power supply are mounted. Access to the terminal strip is possible after tilting the lampshade on a hinge, secured with a mounting strip.
The lamps are equipped with two DPT 14-21 cable entries. The DPT 14-21 cable entries used do not require additional protection against pulling out the power cable.
The design of the lamp allows for a pass-through voltage supply with the possibility of checking the continuity of the protective conductor.
Two steel mounts with holes for M10 screws are used to mount the lamps. Two brass sleeves with M8 thread are used to screw the mounts to the lamp housing.
Technical parameters | ||||
Parameter name | Value (unit) | |||
Making a lamp | NLS-6 LED 600 20W | NLS-6 LED 600 37W 1 | NLS-6 LED 600 37W 2 | NLS-6 LED (angle) |
Rated supply voltage | 120-277VAC (max. 305VAC) | |||
Supply voltage frequency | 50-60Hz | |||
Power | 20 W | 37 In | 37 In | 37 In |
Number of LED modules | 1 row | 1 row | 2 rows | 2 rows |
Lifespan of LED modules [1] | 50,000 hours | 24,000 hours | 50,000 hours | 50,000 hours |
Degree of protection | IP66/67 | |||
Light source | LED | |||
Lamp luminous flux | 2490lm | 4850lm | ||
Cable entry | DPT 14-21 | |||
Maximum core cross-section | 6mm 2 | |||
Current terminal load capacity | 36A | |||
Protection class | AND | |||
Ambient temperature range | -10°C to +60°C | |||
Permissible humidity (at a temperature of +35°C) | 95% | |||
Mass | 5.0 kg | |||
External dimensions (length x width x height) | 742 x 209 x 147 mm | |||
Technical parameters | ||||
Parameter name | Value (unit) | |||
Making a lamp | NLS-6 LED 1200 37W | NLS-6 LED 1200 70W 1 | NLS-6 LED 1200 70W 2 | NLS-6 LED (angle) |
Rated supply voltage | 120-277V | |||
Supply voltage frequency | 50-60Hz | |||
Power | 37 In | 70 W | 70 W | 70 W |
Number of LED modules | 1 row | 1 row | 2 rows | 2 rows |
Lifespan of LED modules [1] | 50,000 hours | 24,000 hours | 50,000 hours | 50,000 hours |
Degree of protection | IP66/67 | |||
Light source | LED | |||
Lamp luminous flux | 5015lm | 9940lm | ||
Cable entry | DPT 14-21 | |||
Maximum core cross-section | 6mm 2 | |||
Current terminal load capacity | 36A | |||
Protection class | AND | |||
Ambient temperature range | -10°C to +60°C | |||
Permissible humidity (at a temperature of +35°C) | 95% | |||
Mass | 8.5 kg | |||
External dimensions (L x W x H) | 1352 x 209 x 147 mm | |||
