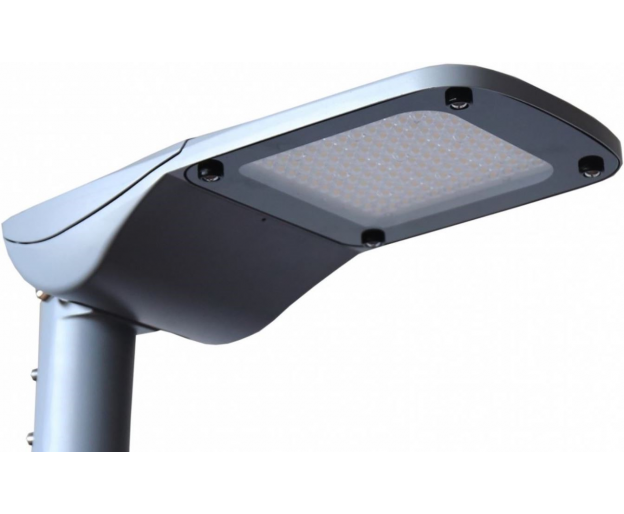

STREET LAMP EMSL 3
LED street light EMSL 3 is designed to illuminate roads, spaces, industrial utility areas. Suitable for lighting areas adjacent to industrial production installations outdoors.
FEATURES/TECHNICAL SPECIFICATION
| Order code | Luminous flux [lm] | Power [W] |
| EM35SL3 | 4,900 +/-5% | 35 |
| EM50SL3 | 7,000 +/-5% | 50 |
| EM60SL3 | 8,400 +/-5% | 60 |
| EM80SL3 | 11,200 +/-5% | 80 |
| EM100SL3 | 14,000 +/-5% | 100 |
| EM120SL3 | 16,800 +/-5% | 120 |
| EM150SL3 | 21,000 +/-5% | 150 |
Nominal voltage | AC 100-277V |
Protection class | AND |
CRI | ≥70 |
Angle of light rays | 120°x70° |
Degree of protection | IP65 |
Impact resistance | IK 10 |
Permissible ambient temperature | -30°C to +45°C |
Light sources | LEDs |
Lifespan | 100,000 h (at 30°C) |
Housing material | glass, aluminum, steel |
Optics type | lens |
Control options (optional) | twilight sensor, intensity sensor, DALI, 1-10V |
Surge protection | 10kV |
