MineEye 2.0 System
The MineEye 2.0 system is a tool that works perfectly in mining plants. It is a superior system that collects and stores data, enabling its further analysis. The information collected in real time is used to monitor, manage and optimize ongoing mining processes.
DESCRIPTION
The MineEye system is a modular application that provides the ability to monitor and control mining automation devices. The application's functionality has been divided into separate parts, allowing for its easy expansion and configuration to suit the customer's needs. The system is prepared to support multiple users simultaneously, ensuring mutual exchange of data in real time. The application also has the ability to exchange data with existing systems. The heart of the entire system is the MineEye Server, responsible for communication with dedicated devices and data management and synchronization.
MineEye Module - ELSAP-05

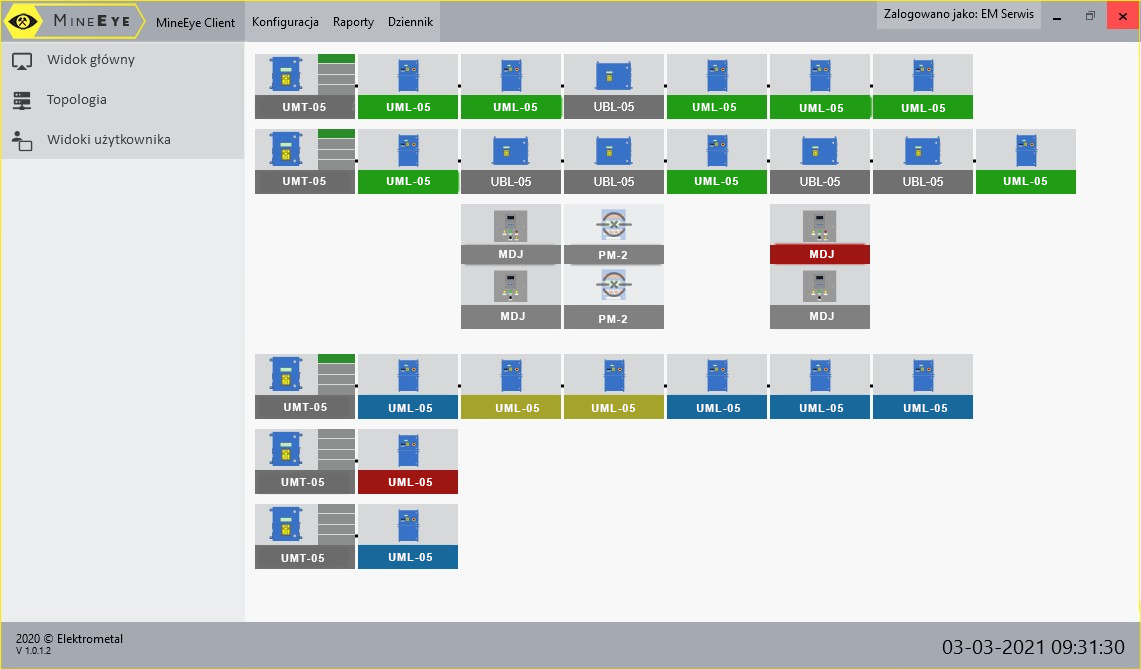

It enables monitoring and control of the ELSAP-05 automation system, in the control of belt conveyors, pumping station operation or transport using railways.
MineEye - POWER module

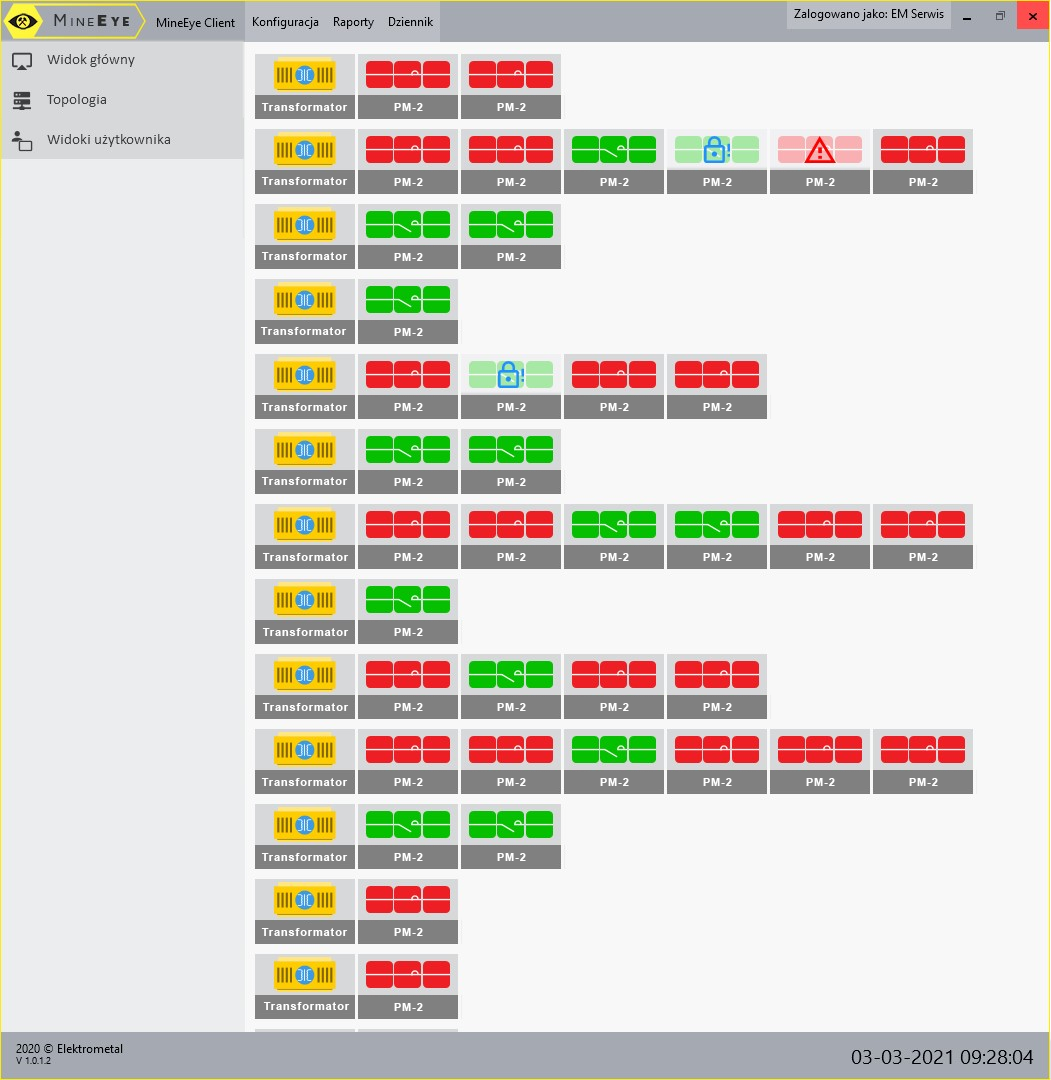

It enables monitoring and control of transformers, contactor switches and motors with integrated frequency converters.
MineEye Module - ELSAP-05
It enables monitoring and control of the ELSAP-05 automation system, in the control of belt conveyors, pumping station operation or transport using railways.
MineEye - POWER module
It enables monitoring and control of transformers, contactor switches and motors with integrated frequency converters.
FEATURES/TECHNICAL SPECIFICATION
Most important functionalities:
- Adding, editing, removing devices without interrupting the program.
- Remote control of automation devices.
- Possibility of simultaneous multi-station work.
- Individual user accounts with fully personalized permissions.
- Possibility to limit access to data to individual users.
- Configuring connection parameters and selected modules. All parameters have default optimal values.
- Logging of important actions performed by the user that affect the operation of the entire system.
- Device operating time reports.
- Alarm/lock reports from devices.
- All reports can be filtered, personalized and saved to pdf files.
- Import and export of data to external systems ( OPC UA, Modbus TCP/IP, WebApi )

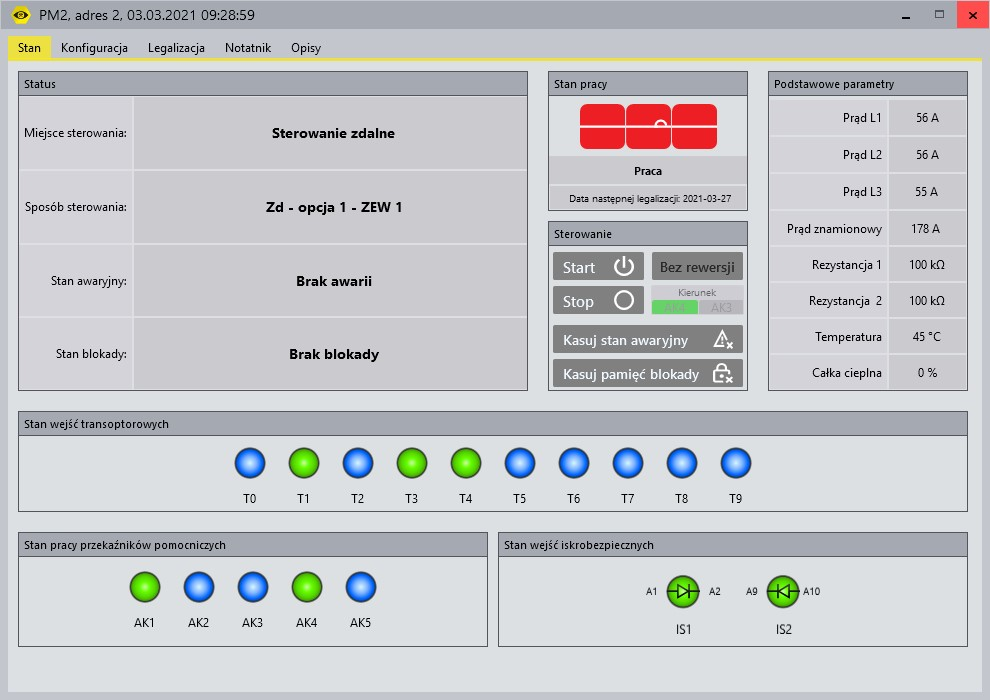

- Communication with PM-2 devices
- Communication with PS-2008 devices
- Communication with UMT-05 devices,
- Configuration of controller operating parameters UML-05,
- Configuration of the controller input and output operating parameters UBL-05 and additional modules for the controller UML-05,
- Configure block sources,

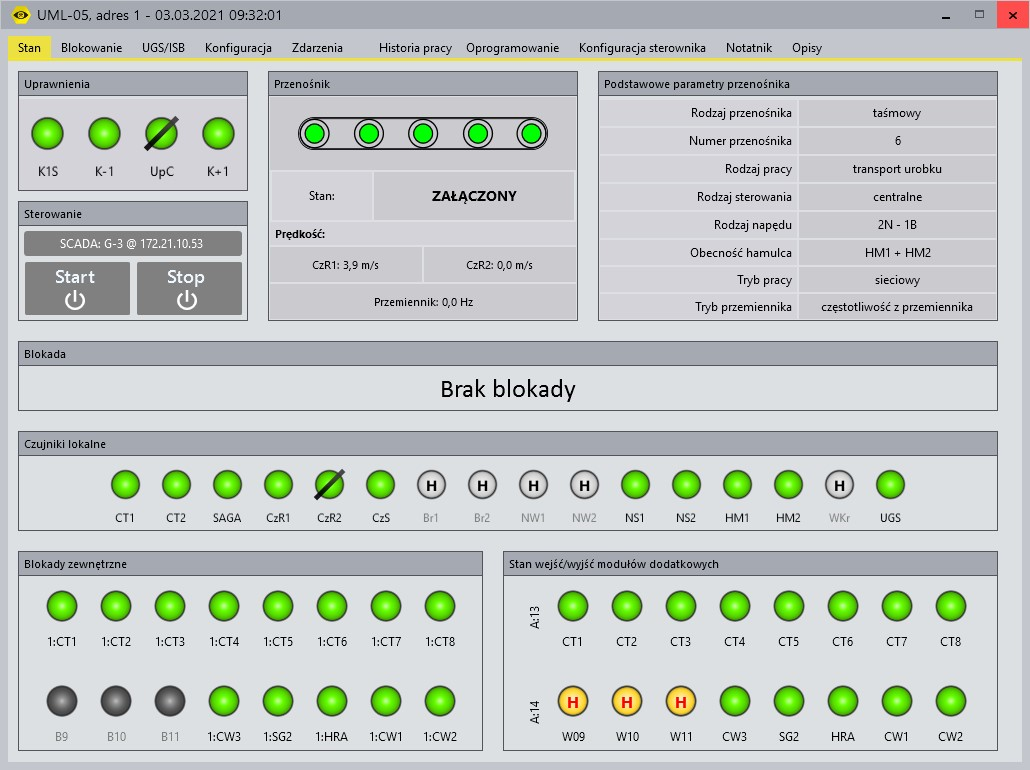

- Presentation of the current operating parameters of the conveyor: operating status, speed, conveyor type, type of work,
- Signaling of blockage occurrence,
- Possibility to deactivate (block) the blocking source,
- Remotely switching the conveyor on and off,
- Archiving events (controller status, lock occurrences, user actions),
- Print current settings.
- Possibility for operators to enter descriptions and notes.
