EM-eGx

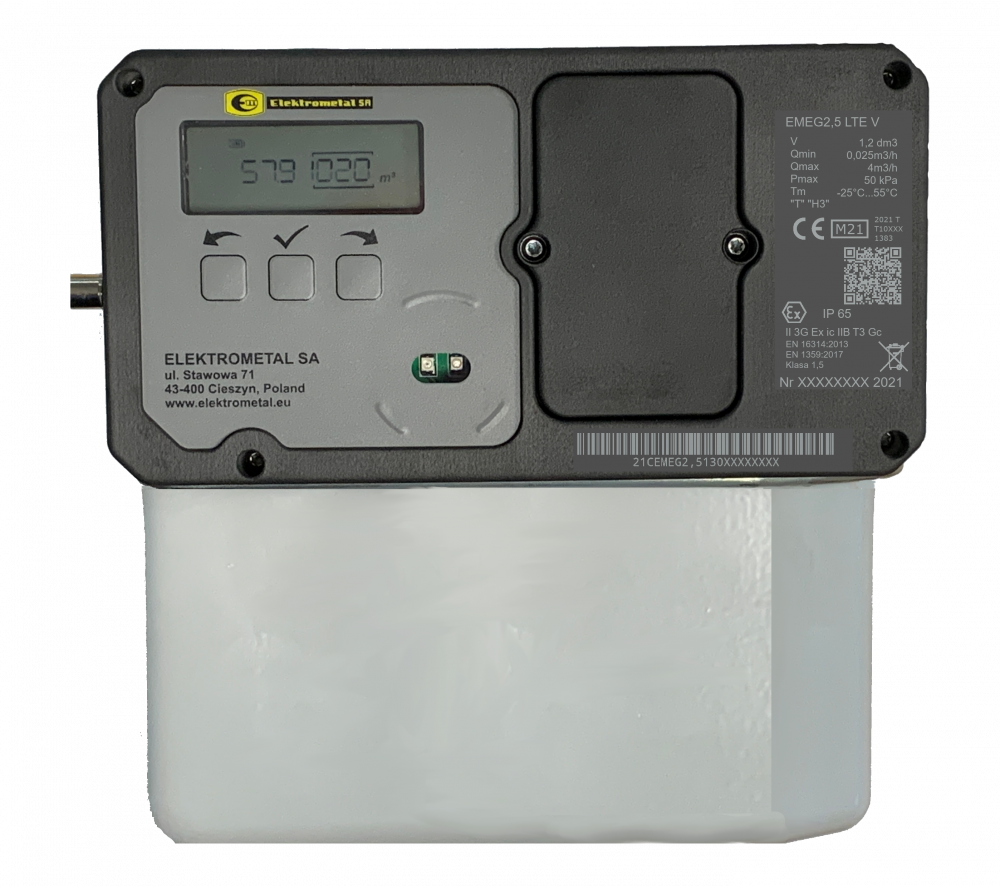

Domestic digital gas meter
Domestic digital gas meter EM-eGx are designed to measure the consumption of gaseous fuels according to PN-C-04750 in households and industry.
Additional functions compared to mechanical gas meters::
- Convenient user interface (3 buttons)
- Two independent cells to power measurement and communication circuits
- Possibility to replace the communication link
- Ongoing monitoring of the discharge of power cells
- Electronic anti-theft security (control of opening the power cell cover, detection of external magnetic field)
- Optional pre-payment valve
- Optional measurement of gas volume under normal conditions (0°C; 1013.25 hPa) or standard conditions (15°C; 1013.25 hPa)
- Possibility to use selected radio interfaces
- Archiving of measurement data
- Event archiving
- Possibility of remote software update
|
Type |
Cyclic volume (dm3) |
Measurement range (m3/h) |
Connection |
Weight |
|
|
EM-eG1,6 |
1,2 |
0,016 ÷ 2,5 |
G1 1/4, G1 |
DN 32, DN25 |
2 kg |
|
EM-eG2,5 |
1,2 |
0,025 ÷ 4 |
G1 1/4, G1 |
DN 32, DN25 |
2 kg |
|
EM-eG4 |
1,2 |
0,04 ÷ 6 |
G1 1/4, G1 |
DN 32, DN25 |
2 kg |
|
Parameter |
Value |
|
Legal requirements and applicable standards |
2004/22/EC (MID), 2004/108/EC (EMC), 2014/53/EU (RED), EN1359:2017, EN16314:2013 |
|
Metrological class of the gas meter |
1,5 |
|
Mechanical class |
M1 |
|
Operating pressure |
max. 50 kPa |
|
Display resolution |
0,001 m3 |
|
Spacing |
110, 130 mm |
|
Dimentions |
217x199x169 mm |
|
Temperature range |
-25ºC ÷ +55ºC |
|
Storage temperature |
-30ºC ÷ +60ºC |
|
Ingress protection rating |
IP 65 according to EN 60529 |
|
Power transmission |
magnetic |
|
Resistance to neodymium magnets |
Yes |
|
ATEX |
Zone Z2 |
|
Prepayment valve |
Ball valve |
|
Power cells |
Litowe, rozmiar D |
|
Display |
LCD (volume, volume under standard or normal conditions, gas temperature, gas pressure, radio signal level, current gas consumption, energy) |
|
Antenna |
Internal or external |
|
Service link |
Optical (IEC 62056-21) |
|
Communication link |
GSM, NB-IoT/LTE CAT-M, LORA, Wireless MBus |
|
Application protocol |
Smart-Gas (ST-IGG-0201:2018) |
