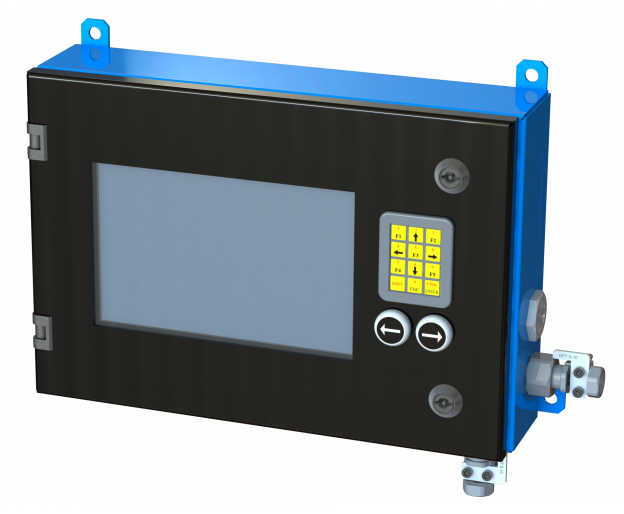

MIP-19 IP Monitoring Controller
CERTIFICATE:
The MIP-19 controller is designed to display images from ISK-11/M2 and ISK-16 cameras. It has a built-in EM471 module with a 10-inch display and a 4-port Ethernet switch. The EM471 module works with digital and analog cameras (max. 4 analog inputs).
Ex I M1 Ex ia I Ma
Ex I M1 Ex ia I Ma
DESCRIPTION
The MIP-19 controller is designed to display images from ISK-11/M2 and ISK-16 cameras. It has a built-in EM471 module with a 10-inch display and a 4-port Ethernet switch. The EM471 module works with digital and analog cameras (max. 4 analog inputs).
The EM471 module consists of a 10” TFT-LCD display with a resolution of 1920x1200. The module is managed by a Zynq processor. The module software runs under the control of the Linux system. All communication interface connectors protrude above the molding on the rear wall of the module.
The MIP-19 controller can be used in underground mining excavations:
- not at risk of methane explosion with the "a" degree of explosion hazard,
- at risk of methane explosion with a "b" or "c" degree of explosion hazard,
- not at risk of coal dust explosion,
− Class A and B coal dust explosion hazard.
The EM471 module consists of a 10” TFT-LCD display with a resolution of 1920x1200. The module is managed by a Zynq processor. The module software runs under the control of the Linux system. All communication interface connectors protrude above the molding on the rear wall of the module.
The MIP-19 controller can be used in underground mining excavations:
- not at risk of methane explosion with the "a" degree of explosion hazard,
- at risk of methane explosion with a "b" or "c" degree of explosion hazard,
- not at risk of coal dust explosion,
− Class A and B coal dust explosion hazard.
FEATURES/TECHNICAL SPECIFICATION
Execution 1
Technical data MIP-19 (Version 1) | |
Parameter name | Value (unit) |
Rated supply voltage | 12÷15VDC |
Maximum current consumption | 1100mA |
Degree of protection | IP54 |
Explosion-proof construction feature | I M1 Ex ia I Ma |
Ambient temperature range | -20°C to +40°C |
Weight max. | 15kg |
External dimensions | 500x360x120mm |
ATEX marking of MIP-19 components | |
Item name | Certificate number |
EM471 | JSHP 19 ATEX 0014X |
PSU-EOS | FTZU 05 ATEX 0013 |
