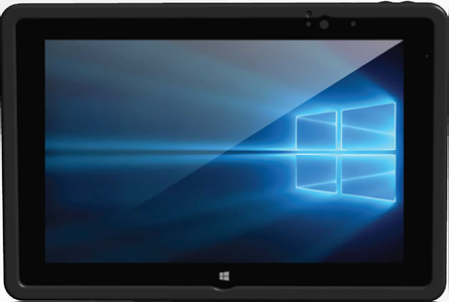

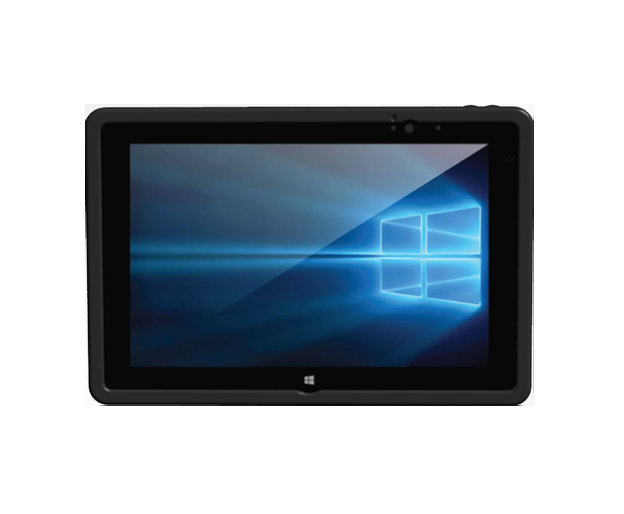

AEGEX-10 Intrinsically Safe Tablet

AEGEX-10

CERTIFICATE:

10.1" WIN10 Tablet with ATEX approval

Intrinsically safe tablets enable real-time use and exchange of data by personnel located in explosion-hazardous areas, helping to leverage available data to optimize efficiency, safety and productivity.

DESCRIPTION

Tablet with ATEX approval allowing its use in explosion hazard zones. The housing has been additionally adapted for use in difficult conditions by increasing the level of protection to IP65 and applying an additional layer of protective silicone.

FEATURES/TECHNICAL SPECIFICATION

The tablet has a 10.1" display with a resolution of 1920 x 1200, an Intel Atom Quad-Core 2.39GHz processor, 4GB of RAM and a 128GB disk. In underground conditions, it can communicate with other devices via a wireless network thanks to the built-in dual-band WIFI card 802.11 a/b/g/n 2.4GHz and 5GHz. The battery life is up to 12 hours. It has the Windows 10Pro operating system installed as standard.

Technical data of the AEGEX10 Tablet
Battery life	up to 12 hours of web browsing (3.8V 8700mAh, 33Wh)
Charging time (standby)	Docking station: 0-900% in 2.5h. To 100% in approx. 3.5h USB charger: 0-90% in 4h. To 100% in approx. 5.5h
Available Memory / RAM / CPU	128GB non-volatile memory / 4GB RAM / Intel® Atom Z3795 Quad-Core processor 2.39GHz
Wireless connectivity	Available 4G LTE, WI-FI 802.11AC/802.11 a/b/g/n dual band (2.4GHz and 5GHz), Bluetooth 4.0 low energy, NFC & RFID technology (HF: 13.56MHz), Intel Wireless Display technology
Location	GPS/GLONASS (cold start <30s, hot start <5s)
Ports	full-size USB 2.0, USB 3.0 and HDMI in system connector, micro USB for charging, charging connector (up to 12V), microSDXC connector (supports up to 2TB), headphone jack
Software	Windows 10 IOT Enterprise, Android 6.0 (without GMS)
Multimedia	main camera (rear) 8.0 megapixels with autofocus and flash in full HD resolution, front camera 2.0 megapixels in full HD resolution, full HD video, front and rear microphone, stereo speaker Optional without cameras
Sensors	light sensor, accelerometer, e-compass, gyroscope, SAR proximity sensor
Security	Silicon level, Intel Security (SMEP, PPDRNG FTP and TMP2.0), Software Level, Device Control, BitLocker, Windows 10 Mobile Device Management
Kit Contents	Aegex 10 Intrinsically Safe Tablet + Power Supply + USB Cable
Certificates intrinsically safe	UL913 5th edition: Class I, II, III Div 1 Group AG T4, Tamb -10°C…+50°, IP65 Class I, Zone 0 Group IIC T4, Tamb -10°C…+50°C, IP65 CAN/CSA-22.2 Part 157 IECEx 60079-0 and -11: Ex ib IIC T4 Gb, -10°C ≤ Tamb ≤ +50°C Ex ib IIIC T135°C Db IP6X, -10°C ≤ Tamb ≤ +50°C ATEX 60079-0 and -11: Il 2G Ex ib IIC T4 Gb, -10°C ≤ Tamb ≤ +50°C Il 2D Ex ib IIIC T135°C Db IP6X, -10°C ≤ Tamb ≤ +50°C
Dimensions and weight	Dimensions: 273 x 185 x 16.8mm (10.75” x 7.28” x 0.66”) weight: 980g degree of protection: IP65
Display	Display 10.1” AHVA Full HD Plus Resolution 1920x1200 Capacitive touch screen, 800:1 contrast Viewing angle (up / down, right / left) 170 °C
