SAL-16

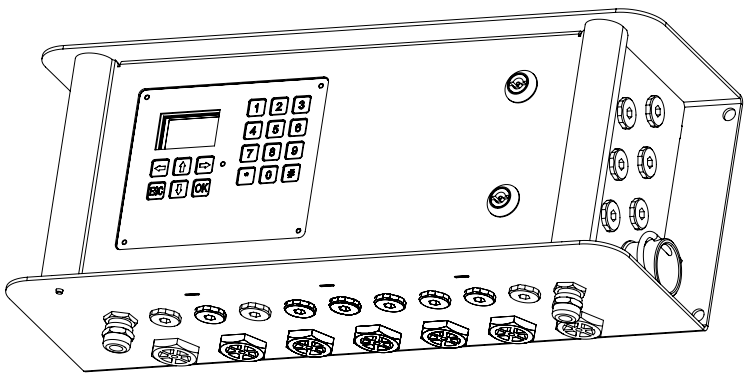

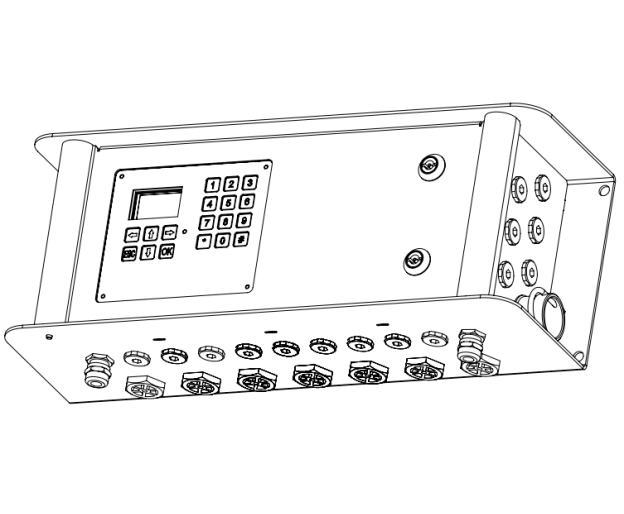

System Local Adapter SAL-16
The SAL-16 Local System Adapter is designed to connect additional inputs and outputs to the UGS-10 system. The device is not made in an explosion-proof version, it is designed to work in an atmosphere free from explosive gases and dust.
DESCRIPTION
The device is intended to be included in the UGS-10 system structure as a network node.
It is powered from the system mains power supply. After the mains power supply is switched off, the communication part is powered from the built-in source (battery) type 3ZZI-5/3/24V, while the inputs / outputs do not function.
The device has eight configurable analog inputs INA1-INA8, each of which can function as:
The adapter has four isolated potential-free outputs OUT1-OUT4 of the electronic contact type, including one with the possibility of frequency control and pulse width modulation (PWM) and two galvanically isolated digital-to-analog converter outputs with the possibility of voltage operation 0-10V or current operation 4-20mA.
Four contact control inputs WE1-WE4 and two contact outputs WY1, WY2 of the BI-SGW block are connected to the additional leads of the multi-level terminal strip. The outputs can operate as a clean contact or a contact with an additional series diode.
It is powered from the system mains power supply. After the mains power supply is switched off, the communication part is powered from the built-in source (battery) type 3ZZI-5/3/24V, while the inputs / outputs do not function.
The device has eight configurable analog inputs INA1-INA8, each of which can function as:
- voltage measurement 0-10V
- receiving a 0-20mA current loop signal
- temperature measurement using a PT100 sensor in a two- or four-wire configuration
- control of a contact equipped with a set of ZRK resistors.
The adapter has four isolated potential-free outputs OUT1-OUT4 of the electronic contact type, including one with the possibility of frequency control and pulse width modulation (PWM) and two galvanically isolated digital-to-analog converter outputs with the possibility of voltage operation 0-10V or current operation 4-20mA.
Four contact control inputs WE1-WE4 and two contact outputs WY1, WY2 of the BI-SGW block are connected to the additional leads of the multi-level terminal strip. The outputs can operate as a clean contact or a contact with an additional series diode.
FEATURES/TECHNICAL SPECIFICATION
| Device parameters | |
| Parameter name | Value (unit) |
| Rated supply voltage | 24V (+15%; -30%) |
| Power consumption | 250mA |
| Operating time when powered from a 3ZZI-5/3/24V source (transmission) | 8h |
| External dimensions | 552x250x173mm |
| Mass | 16kg |
| Ambient temperature range | -20°C to +50°C |
| Analog input parameters | |
| Voltage measurement range | 0-10VDC / 12bit |
| Current measurement range | 0-20mA / 12bit |
| PT100 temperature measurement range | -40°C to 300°C / 12bit |
| Contact control (equipped with ZRK unit) | Contact Status + Line Control |
| Contact control input parameters | |
| Contact control (equipped with ZRK unit) | Contact Status + Line Control |
| Counter input parameters | |
| Counting frequency range | 100Hz |
| OUT 1-4 contact output parameters | |
| Permissible voltage | U=36V |
| Permissible current | I=2A |
| Parameters of contact outputs WY1, WY2 | |
| Permissible voltage | U=36V |
| Permissible current | I=0.1A |
| Frequency output parameters | |
| Frequency range | 1-650Hz |
| Filling | 0-100% |
| Analog output parameters | |
| Voltage range | 0-10VDC / 16bit |
| Current range | 0-20mA / 16bit |
| Maximum current loop resistance | 400 ohm |
| Minimum resistance of a voltage controlled circuit | 10k ohm |
