SZ-10

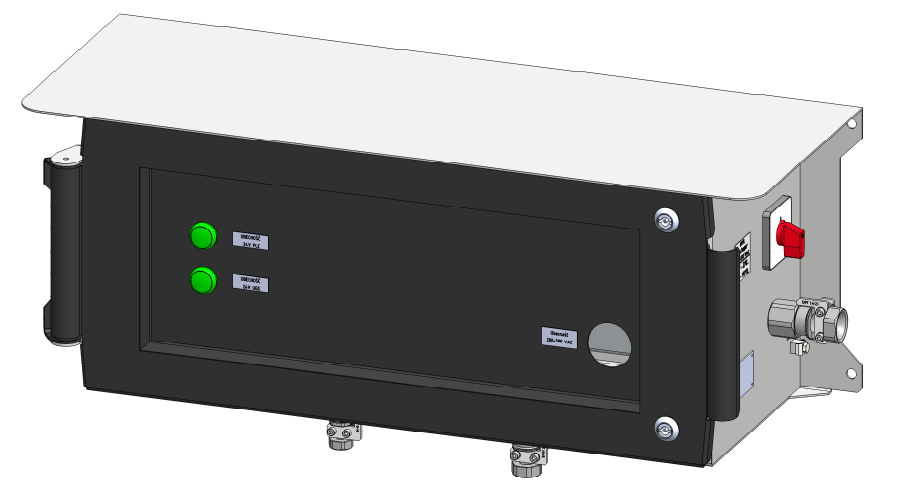

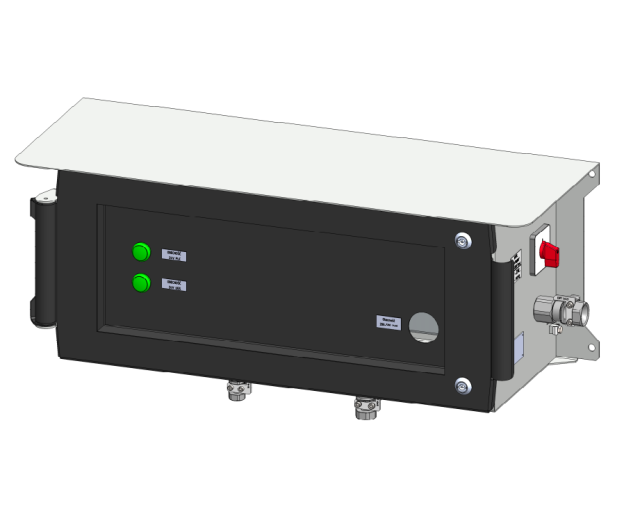

Power box SZ-10

The SZ-10 type power supply box is a device with a standard design intended for powering devices in installations built in underground workings of non-methane mines and in installations on the surface. The device allows for powering up to 3 receiving tracks. The SZ-10 device is intended for use in an industrial environment, for power supply from an industrial power supply network.
DESCRIPTION
The basic function of the SZ-10 box is to provide a constant supply voltage intended for cooperating receiving devices. The SZ-10 power supply box can operate as a stand-alone device or as a component of the SGA-16 controller. The device is equipped with two power supplies that allow for powering three independent output paths with a voltage of 24 VDC. The power supply for paths marked as UGS1_24VDC (XZ2; terminals 3,4) and UGS2_24VDC (XZ2; terminals 5,6) can be switched depending on the needs from the controller level (e.g. SGA-16) using the K1, K2 and K3 relays built into the device.
In the event of a mains power failure, the PLC_24VDC output track (XZ2; terminals 1,2) is buffer-powered from the battery built into the device.
FEATURES/TECHNICAL SPECIFICATION
The SZ-10 power box is available in four versions, differing in the supply voltage and current efficiency of the power supplies used.

Power box SZ-10
Parameter name Value [unit]
Rated supply voltage
- execution 1 and 2
- execution 3 and 4

200-500VAC
16.8-33.6VDC
Supply voltage frequency
- execution 1 and 2
- execution 3 and 4

47-63Hz
-
Nominal voltage of power supply outputs 2x24VDC
Maximum current consumption:
- version 1 (Mean Well WDR-120-24 power supply)
- version 2 (Mean Well WDR-240-24 power supply)
- version 3 (Mean Well DDR-120B-24 power supply)
- version 4 (Mean Well DDR-240B-24 power supply)

2x5A
2x10A
2x5A
2x10A
Output voltage ripple
- execution 1 and 2
- execution 3 and 4

150mV
50mV
Degree of protection IP65
Ambient temperature range 0°C to 70°C
Mass 20kg
External dimensions 840 x 407.5 x 318 mm
