EFI-BRI-24n

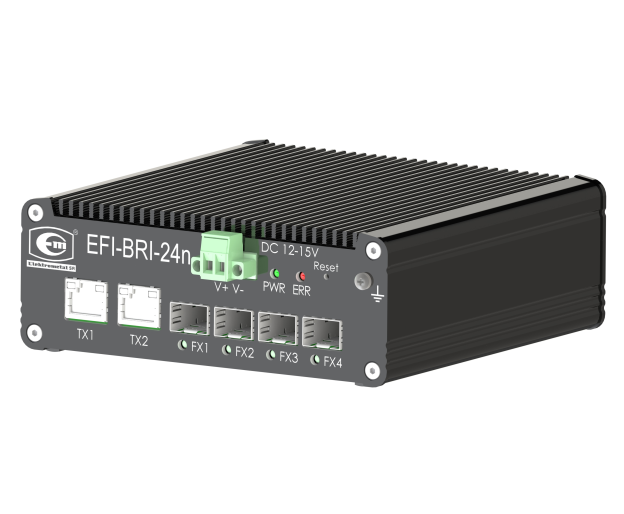

EFI-BRI-24n module
The EFI-BRI-24n module is a multi-port, manageable, gigabit Ethernet switch. It can be used as:
- 6-port Ethernet switch: 2 x RJ-45 Gigabit Ethernet ports, 4 x SFP slots
- copper twisted pair to fiber optic ethernet medium converter
The module acts as a 6-port switch. It is equipped with two RJ-45 connectors and four SFP slots, designed for mounting dedicated fiber optic/wired inserts.
Parameter name | Value (unit) |
Device name | EFI-BRI-24n |
Supply voltage | 12÷15VDC |
Maximum current consumption | 700mA |
Number of Ethernet ports - TX standard | 2 |
Number of SFP slots | 4 |
Maximum power connector wire diameter | 2.5mm2 |
Maximum fiber length | Depending on the SFP insert used |
Operating temperature range | -20°C ÷ +40°C |
Housing protection class | IP20 |
Classification of fiber optic transmitters | Class 1 |
Module dimensions | 155.5x141x51mm |
Mass | 0.8kg |
Switch hardware parameters:
- Packet queue buffer: 1Mb
- MAC address memory size: 8k
Switch software parameters:
- VLAN Support: Port-based, 802.11Q
- Maximum number of VLANs: 4096
- Maximum number of independent VLANs: 256
- Features:
- Double Tagging(Q in Q)
- Trunking: port/VLAN
- Flow Control
- 1D Spanning Tree
- Link Aggregation
Protocol Compliance:
- IEEE 802.3 (Ethernet)
- IEEE 802.3ab (1000Base-T)
- IEEE 802.3u (Fast Ethernet)
- IEEE 802.1D (Spanning Tree)
- IEEE 802.1Q (VLANs)
- IEEE 802.3x (full-duplex flow control)
- IEEE 802.1w (Rapid Spanning Tree)
System configuration:
- via browser (Web browser)
- SNMP/RMON
