EMLG 1 Ex
EMLG 1 Ex

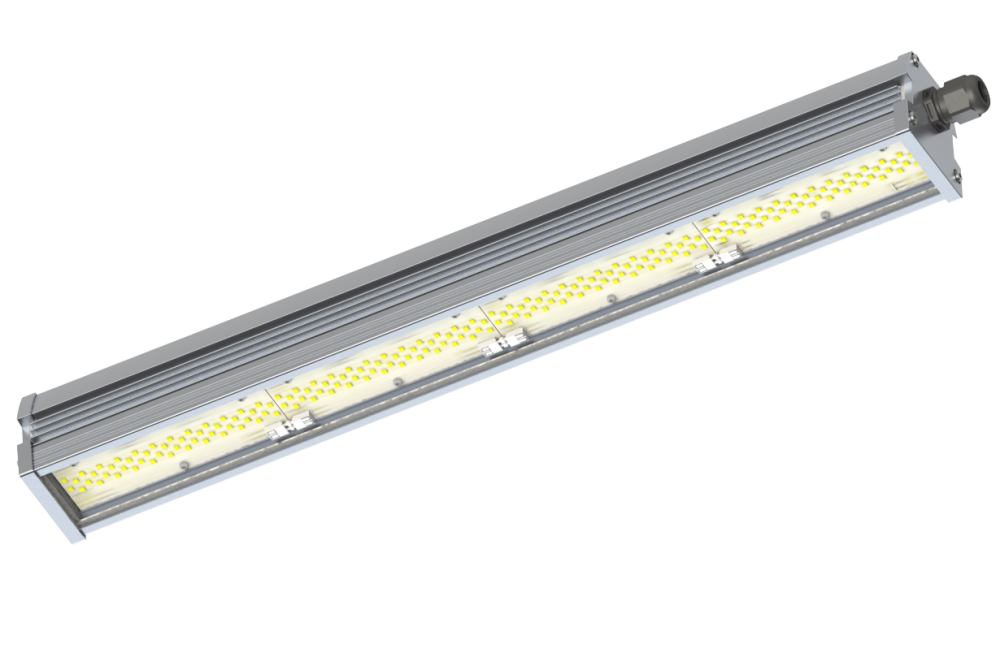

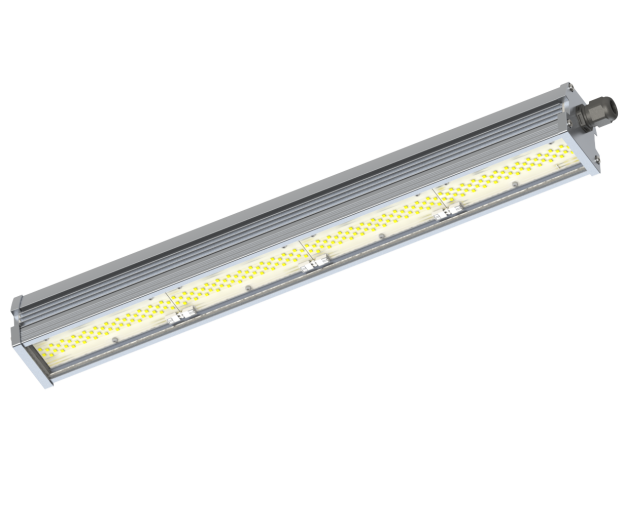

The EMLG 1 Ex luminaire is designed for illuminating:
- industrial halls and spaces classified as zones 1, 21 where there is a risk of explosion of dust, gases, vapors and mists of flammable liquids;
- auxiliary rooms with high dustiness with the possibility of water splashes, i.e.: boiler rooms, waterworks, baths, garages, shelters, warehouses,
- process lines of the chemical, oil, petrochemical, gas industries, gas distribution, processing of loose mining and construction materials;
- premises of public utility facilities, including health care facilities, as well as plants of the pharmaceutical industry, cosmetics industry, meat processing, food production and storage, food industry and catering facilities.
FEATURES/TECHNICAL SPECIFICATION
Supply voltage | 198-277 VAC, 198-250 VDC, 50-60(0) Hz 100-277 VAC, 100-250 VDC, 50-60 Hz (optional) |
| Power | max 60W +/-10% (according to the performance table) |
| ATEX designation |
|
| Certificate number | OBAC 24 ATEX 0173X |
| Standards | PN-EN IEC 60079-0:2018-09 PN-EN 60079-11:2012 |
| Degree of protection | IP 66 |
| IK protection class | IK 08 |
| Protection class | AND |
| Permissible ambient temperature | -32 ° C to +55 ° C |
| Connection terminals | 4 mm 2 |
| Current-carrying capacity of through terminals | min. 32A |
| Libra | EMLG 1 Ex 300 - 1.65 kg EMLG 1 Ex 600 - 2.65 kg EMLG 1 Ex 900 - 3.65 kg EMLG 1 Ex 1200 - 4.74 kg |
| Dimensions [mm] | 302 x 88 x 70 - frame 300 |
| Light source | LED diodes |
| Color temperature | 4000K +/- 5% (as option 3000K, 5000K, 6500 +/-10%) |
| Color rendering index | CRI 80 (others as an option) |
| Vitality | L80B50 >100,000h at 25°C °C (others on request) |
II 2G Ex eb ib mb op is IIC T5 Gb
