OLC-2

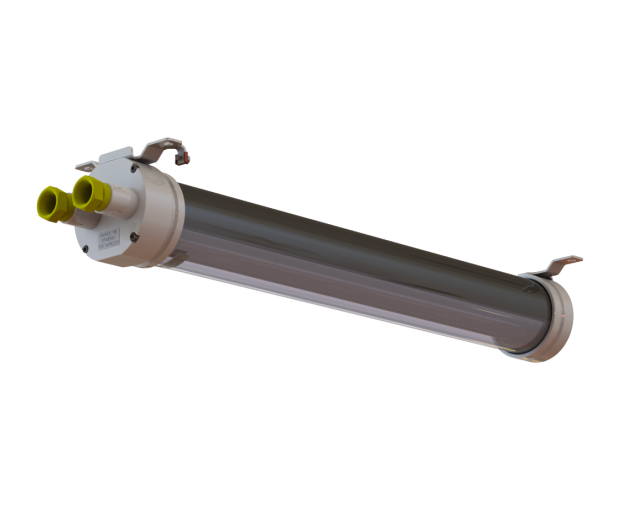

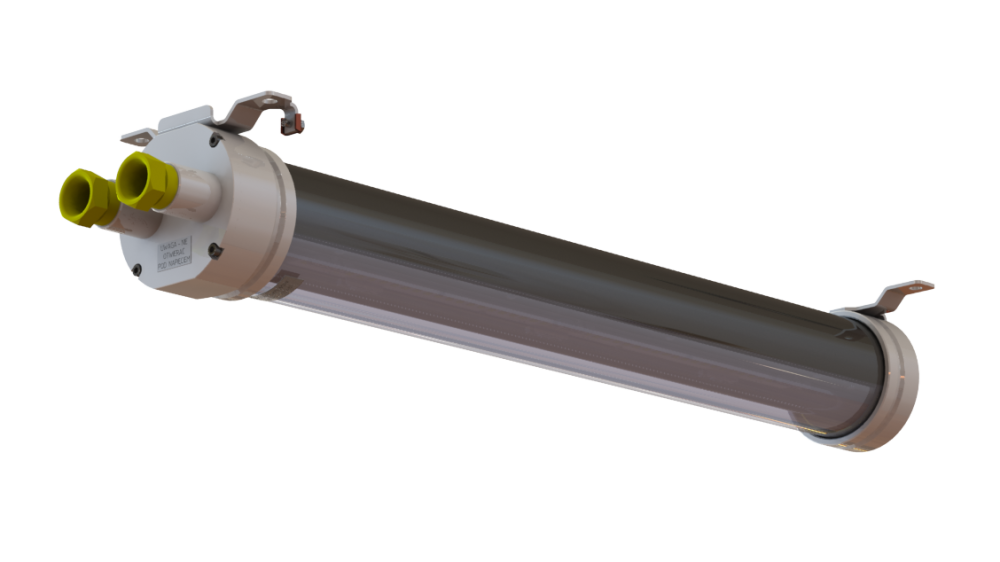

Lamp type OLC-2
− walls and workings in underground mining plants,
− charging rooms for traction batteries and underground fuel and lubricant storage facilities,
− hal przemysłowych i przestrzeni zaliczanych do stref 1, 2, 21 i 22 zagrożenia wybuchem pyłów, gazów, par i mgieł cieczy palnych,
- explosion-proof mud type - reinforced structure "Ex e"
- material - PMMA pipe with a diameter of 100 mm, steel fittings
- lighting system - LED matrix with a dispersing diffuser
- power supply from the UNIvEx family
- supply voltage 42-277 VAC
|
Technical parameters |
|
|
Parameter name |
Value (unit) |
|
Supply voltage |
42-277VAC 100-250VDC |
|
Power consumption |
max. 40W |
|
Power factor l |
0.98 |
|
Light source |
LED module |
|
Color temperature |
4000K |
|
Usable luminous flux |
6500lm |
|
ATEX marking |
AND M2 Ex eb ib mb AND Mb ANDAND 2G Ex eb ib mb ANDANDC T5 Gb ANDAND 2D Ex tb ANDANDANDC T85°C Db |
|
EU Type Examination Certificate Number |
OBAC 24 ATEX 0073X |
|
Standards |
PN-EN ANDEC 60079-0:2018 PN-EN 60079-7:2016 PN-EN 60079-11:2012 PN-EN 60079-18:2015 PE-EN 60079-31:2014 |
|
Degree of protection |
ANDP65 |
|
Cable entry |
WK 6-20 (thread M32x1.5) |
|
Dummy plug |
72.091 |
|
Cross section of veins |
1.5 ÷ 6 mm2 |
|
Current terminal load capacity |
Max. 41A |
|
Protection class |
AND |
|
Ambient temperature range |
-10°C to +40°C |
|
Permissible humidity (at +35°C) |
95% |
|
Mass |
6.7 kg |
|
External dimensions |
845 x 160 x 128mm |
