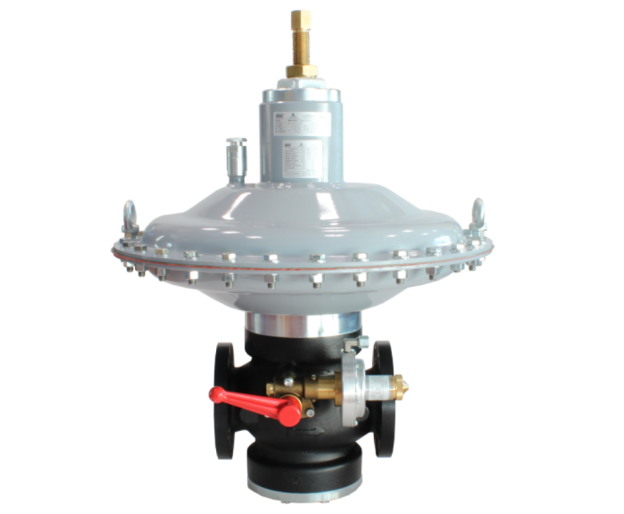

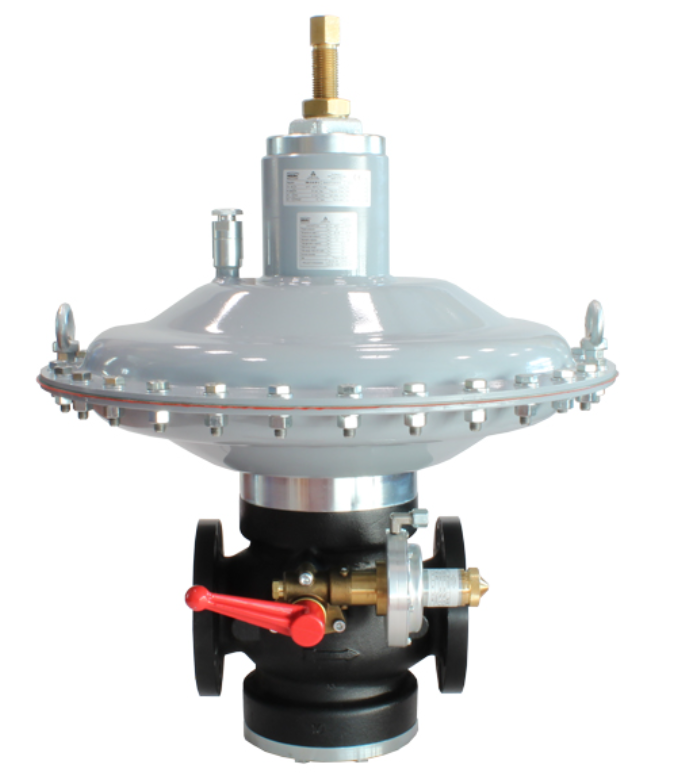

DIRECT-ACTING PRESSURE REDUCER S23

The S23 reducers are a new line of direct acting pressure reducers designed to guarantee high regulation accuracy and ease of use. These devices are typically used in distribution and industrial systems and are intended for installation in pressure regulation stations in natural gas, industrial gas and LPG networks or other non-corrosive gases, previously filtered.

The S23 pressure regulator is classified as a “Fail to Open” type according to the European standard EN 334, which means that in the event of a failure due to a ruptured main diaphragm or due to a lack of downstream impulse, the regulator will open fully.

The S23 pressure regulators feature a top entry design (inspection opening from the top), which allows maintenance work to be carried out without having to dismantle the body from the pipeline.

Modularity allows for changing the configuration even when already installed in the system. Furthermore, the modules can be easily removed for possible control.
