EM-EVDC2-180
EM-EVDC2-180 Electric Vehicle Charger

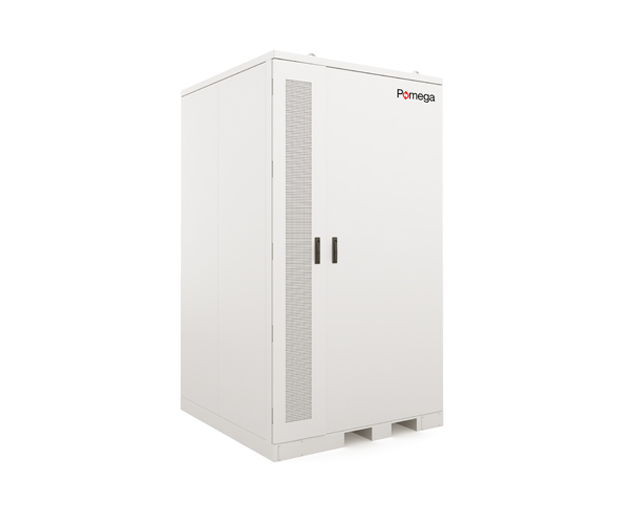

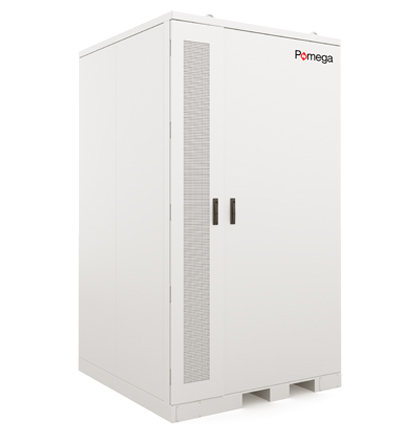

POD-A100 energy storage This device is designed to store electrical energy in industrial and power installations. Its housing design, adapted for outdoor installation, ensures reliable operation in variable environmental conditions.
DESCRIPTION
The EM-EVDC2 charger is a device designed for building electric vehicle charging stations. One or two DC charging ports ensure rapid recharging of charged vehicles, while advanced communication features enable efficient management of the charging station.
The charger power is configurable in the range of 50-180kW depending on the customer's needs.
The charger power is configurable in the range of 50-180kW depending on the customer's needs.
FEATURES/TECHNICAL SPECIFICATION
The EM-EVDC charger has the following properties and functional features:
- possibility of charging electric vehicles equipped with a CCS type 2 connector:
- charging a single vehicle with maximum charger power,
- simultaneous charging of two vehicles with a maximum of half the charger power,
- charging voltage range 150-1000 VDC,
- LED indicators informing about the charger's operating status,
- display with charging parameters and the ability to change power and SOC level,
- user authorization via RFID card reader or physical key,
- providing charging data to the remote management system – communication in the OCPP standard.
| TYPE | EM-EVDCx-180 |
| Power supply | 3x400V |
| Recommended connection power | 192kW |
| Supply voltage frequency | 50-60 Hz |
| Power supply system | TN-S, TN-C |
| Protection class | AND |
| Maximum charging power of charging point 1 and 2 | 180 kW or 2x90 kW |
| Nominal charging current of charging point 1 and 2 | max 250 |
| Charging point 1 and 2 voltage adjustment range | 150 - 1000V DC |
| System efficiency for nominal load | ≥ 95% |
| Power factor | ≥ 0.99 |
| Charging point connector type 1 and 2 | CCS (Combo2) 250A, IEC 62196-3 |
| Communication with the vehicle | ISO 15118 |
| Communication with the master system | Ethernet, 2G/3G/4G |
| Charging point 1 and 2 cable length | 6.5 m |
| Degree of protection | IP54 |
| mechanical impact resistance classification | IK10 (IK8 display) |
| Cooling | air - fan |
| Noise level | ≤ 65dB (for operation at nominal parameters at a temperature of +25°C) |
| Ambient temperature range | from -30°C to +50°C |
| Relative humidity | 5...95% (non-condensing) |
| Mass | ~530kg |
| External dimensions [width x height x depth] | 1320 x 2225 x 1200mm |
| Housing material | stainless steel, powder-coated black steel |
| Color | RAL palette |
| Options | Cooperation with an external energy storage facility |
