EME 1 Ex

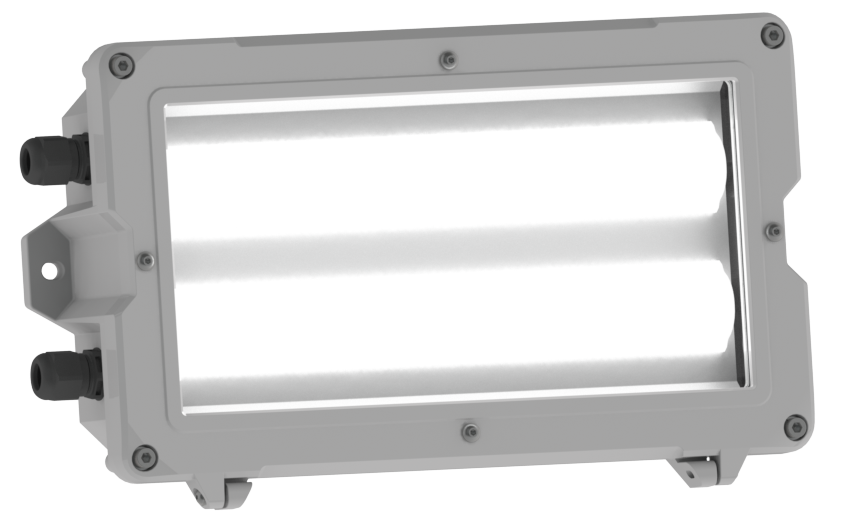

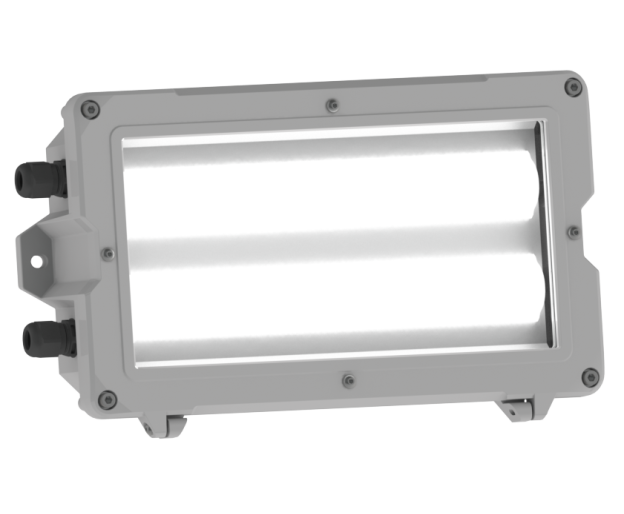

EME 1 Ex fixture
The EME 1.2 Ex luminaire is designed to illuminate:
- industrial halls, tunnels and spaces classified as zones 1, 2, 21 and 22 of explosion hazard due to dust, gases, vapors and mists of flammable liquids,
- auxiliary rooms with high dust levels and the possibility of water splashes, i.e.:
boiler rooms, water supply systems, baths, garages, shelters, warehouses, - process lines of the chemical, oil, petrochemical and gas industries, gas distribution, processing of bulk mining and construction materials,
- public utility premises, including healthcare facilities, as well as pharmaceutical industry plants, cosmetics industry plants, meat processing plants, food production and storage plants, food industry plants and catering facilities.
Parameter name | Value (unit) | |
Supply voltage [1] | 198-277 VAC, 200-250 VDC 100-277 VAC, 100-250 VDC 220-240 VAC, 200-250VDC (dADR, EM) | |
ATEX designation | II 2G Ex eb ib mb IIC T5 Gb II 2G Ex db eb ib mb IIC T5 Gb II 2D Ex tb IIIC T80°C Db | |
Certificate number EU type examination | OBAC 26 ATEX 0015X | |
Standards | PN-EN IEC 60079-0:2018, PN-EN 60079-1:2014, PN-EN 60079-7:2016, PN-EN 60079-11:2012, PN-EN 60079-18:2015, PN-EN 60079-31:2014 | |
Degree of protection | IP 66/67 (according to versions) | |
Protection class | AND | |
Permissible ambient temperature and maximum power | standard finish | power |
-32°C to +50°C | 20W | |
version with EM battery | power | |
0°C to +50°C 3h | 12W | |
Cable entry | M20 or M25 as an option | |
Connection terminals | 4 mm 2 or 6mm 2 as an option | |
Current carrying capacity | min. 32A | |
Mass | 4.0-6.0 kg (according to versions) | |
Dimensions | 409 x 238 x 85 | |
Light sources | LED diodes | |
Color temperature | 4000K +/- 5% (as option 3000K, 5000K, 6500K +/- 10%) | |
Color rendering index | CRI80 (others as option) | |
