EMHB

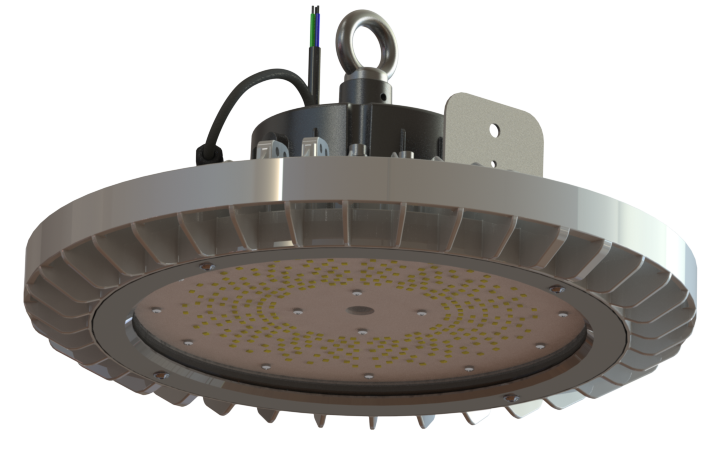

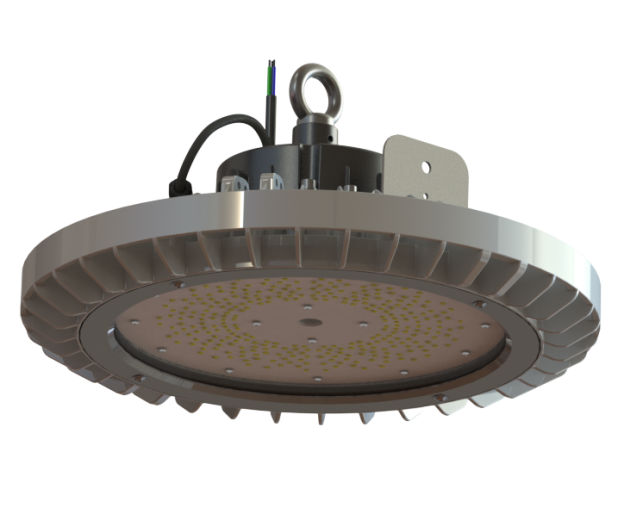

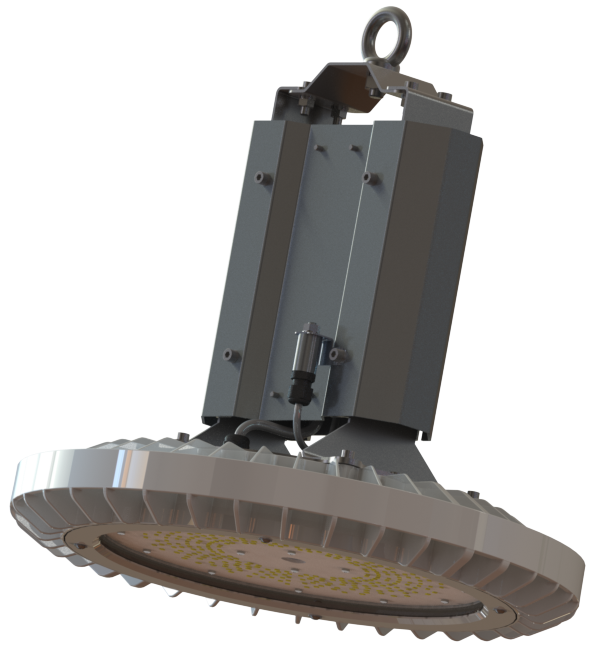

INDUSTRIAL FIXTURE EMHB, EMHB /HT
The EMHB luminaire is designed mainly for general lighting of high halls, shelters, tunnels, industrial, production and storage spaces with the possibility of occurrence of high dust, moisture, water splashes, high and low temperatures in the working environment, including: technological lines of the chemical, oil, petrochemical, gas, energy, mining, wood, metallurgical, steel, paper, processing of loose mining, construction and food materials industries.
Technical parameters | ||
Parameter name | Value (unit) | |
Supply voltage | 90-305 VAC 140-250 VDC 50-60/0Hz | |
Power | 40-270W ±5% | |
Power factor | PF ≥ 0.95 * * | |
Light source | ultra bright LEDs | |
Color temperature | 4000K ±10% | |
Luminous flux | 155lm/W ±10% | |
Protection class | AND | |
Protection level | IP66/67 | IK 10 |
Permissible temperature | according to the table below | |
Mass | 6.8kg | |
External dimensions | Ø380x150mm | |
Permissible ambient temperature | -32°C to +55°C – versions 40-120W; | |
* According to the table of types of execution, ** At a voltage of 230VAC and a power of 160W
