3ZZI-5/x

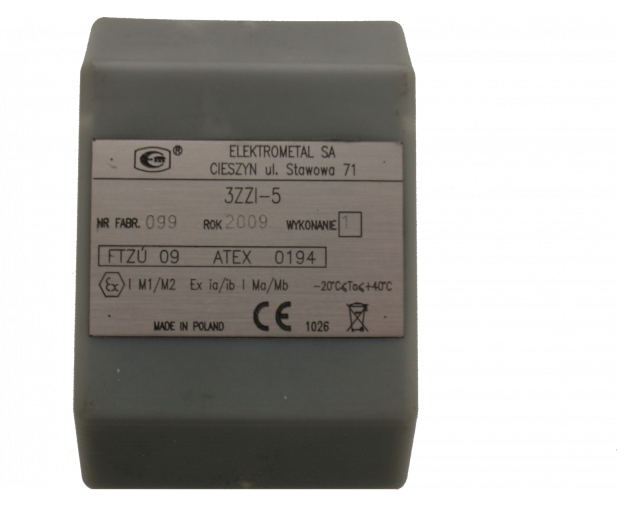

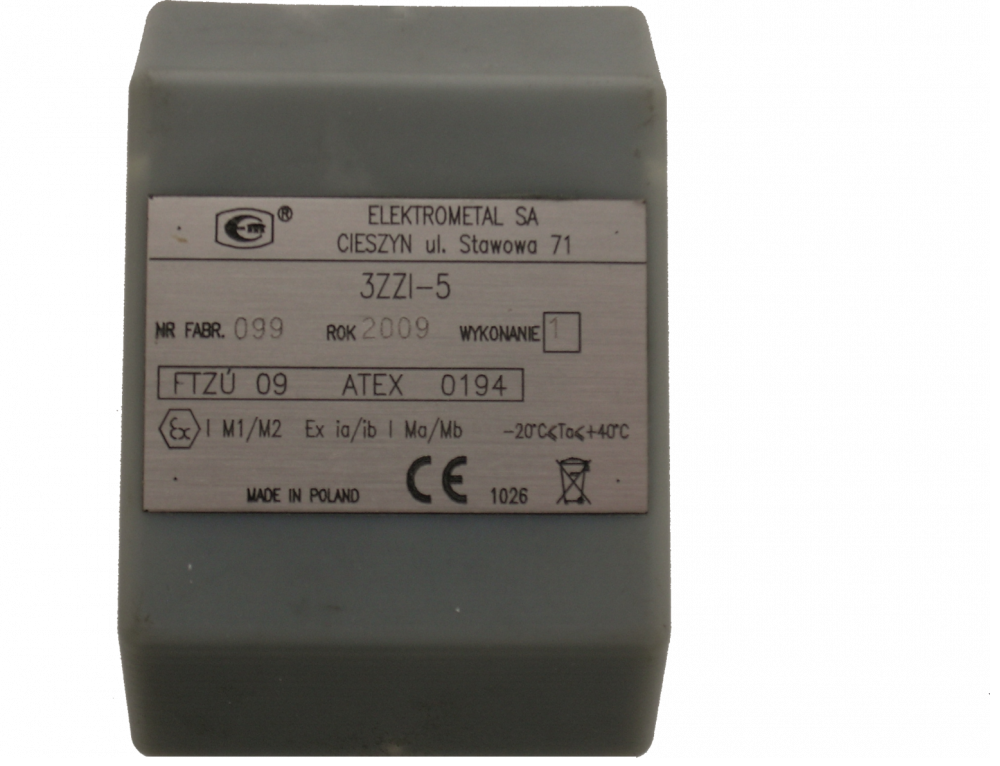

POWER SOURCE 3ZZI-5/x
Batteries 3ZZI-5/x are the power source for intrinsically safe devices in underground mining plants.
The 3ZZI-5/3 power source is used to power devices that draw a small current in the idle state, e.g. loudspeaker alarms, and is also used to power devices that draw a higher current, e.g. limit alarms.
The source elements are mounted in a plastic housing and hermeticized with a chemically hardened filler, creating a non-detachable functional block. The housing is equipped with two special connectors that prevent improper connections of the source with the powered system. The electronic system is assembled on a printed circuit.
Power supply type | 3ZZI-5/1 | 3ZZI-5/2 |
Rated supply voltage | 3.6V | |
Rated output current | 0.45A | |
Nominal capacity | 4.5Ah | |
Supply voltage | 11-15V | 14-15V |
Current consumption max. | 0.060A | 0.100A |
Charging current | 100mA | 200mA |
Fast charging current | 450mA | |
| 450mA | ||
Final discharge voltage | 3.0V | |
Final charge voltage | 4.2V | |
Durability | approx. 1000 charging cycles or 2 years | |
Dimensions | 105x80x40mm | |
Mass | approx. 0.4 kg | |
