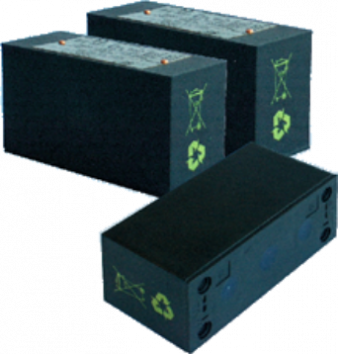

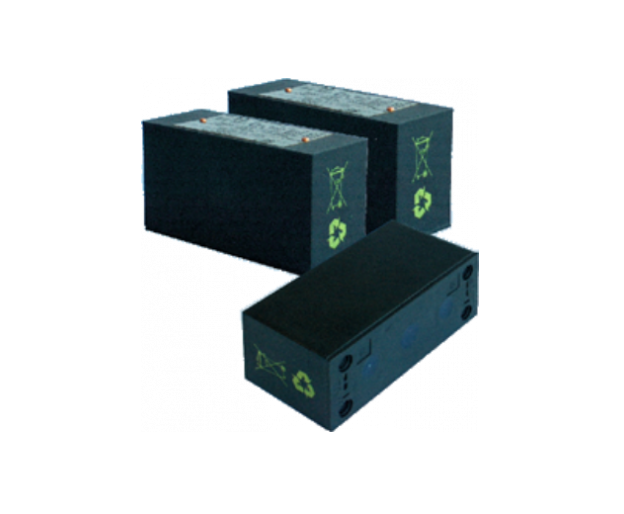

POWER SOURCE 9ZZI-xx/03/x/x
9ZZI-xx/03/xx power supplies are used to power devices that draw a low current in the idle state, e.g. hands-free devices.
- in sources 9ZZI-07/03/CD – NiCd battery 8 x 700mAh
- in 9ZZI-07/03/x sources – 8 x 700 mAh NiCd battery pack
- in 9ZZI-1.5/03/MH sources – 8 x 1500 mAh NiMH battery pack
Nominal voltage | 9.6V |
Nominal capacity: | |
9ZZI-07/03/x | 700mAh |
9ZZI-1.5/03/MH | 1500mAh |
Entrance 1a - 3a | Ui = 15.8 V, Ii = 1A, Li = 0, Ci = 0 |
Exit 1b - 3b | Uo = 12.6 V, Io = 1.45 A, Po = 3.12 W, Li = 0, Ci = 0, Lo = 270 µH, Co = 12 µF |
Exit 2b - 3b | Uo = 12.6 V, Io = 345 mA, Po = 0.73 W, Li = 0, Ci = 0 Lo = 4 mH, Co = 12 µF |
Charging current: | |
9ZZI-07/03/x | 70 mA for t = 15 h |
9ZZI-1.5/03/MH | 150 mA for t = 15 h |
Fast charging current: | |
9ZZI-07/03/Cont | 233 mA for t = 4.5 h |
9ZZI-07/03/MH | 0.7 A for t = 1.2 h |
9ZZI-1.5/03/MH | 1 A for t = 1.8 h |
Final discharge voltage | 8V |
Final charge voltage | approx. 13V |
Charging temperature | from +50C to +400C |
Discharge temperature | from -200C to +450C |
Durability | approx. 1000 charging cycles or 2 years |
Degree of protection | IP20 |
Dimensions | 115x44x60mm |
Mass | approx. 0.56 kg |
