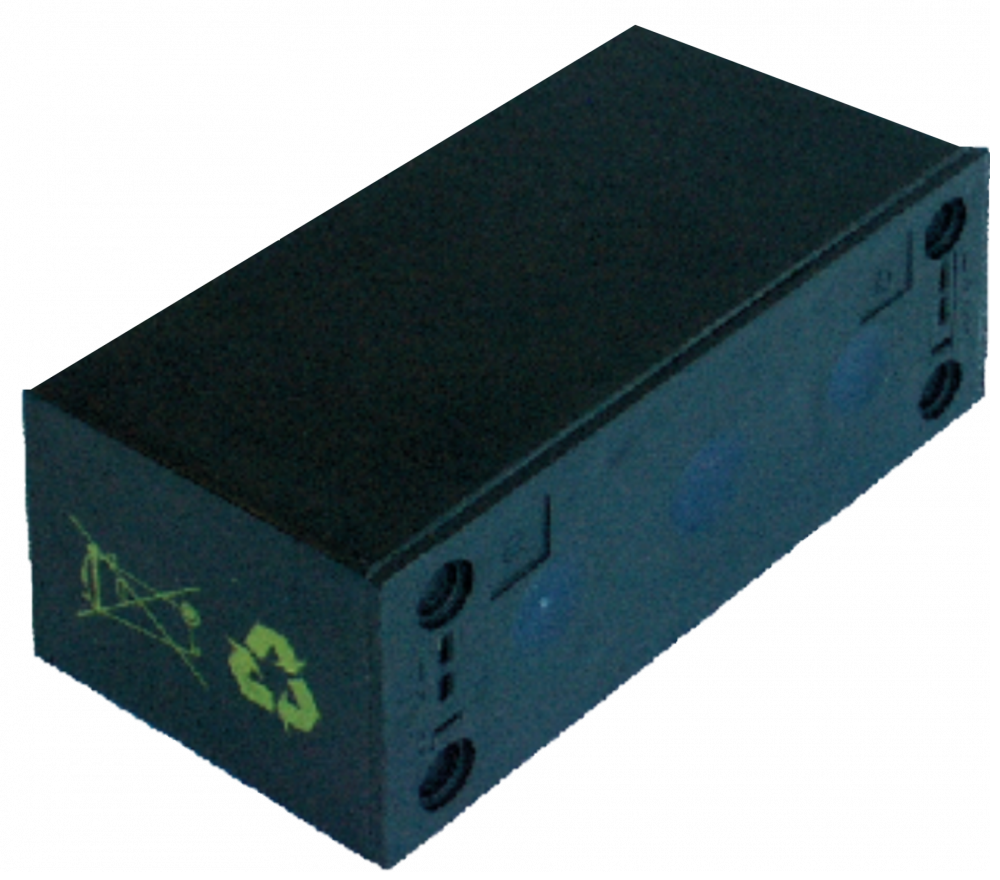

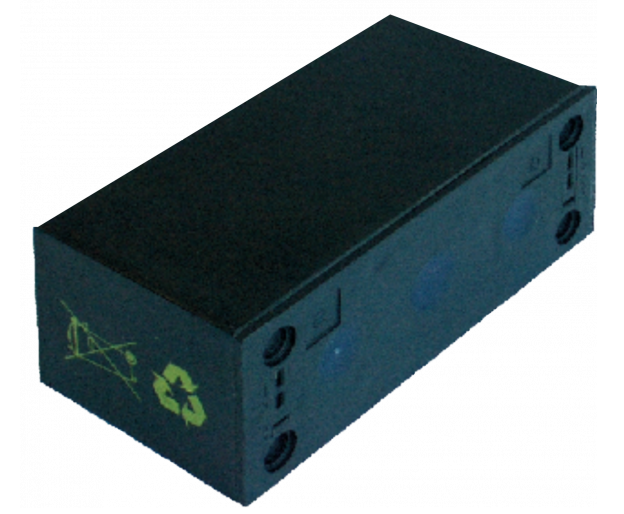

POWER SOURCE 10ZZI-1.5/03/MH
The 10ZZI-1.5/03/MH power source is used to power devices that constantly consume a relatively large current.
The 10ZZI-1.5/03/MH power source is used to power devices that constantly consume a relatively large current, e.g. microprocessor controllers.
The source uses a NiMH battery with a voltage of 10.8 V and a capacity of 1.5 Ah.
Nominal voltage | 10.8V |
Nominal capacity | 1500mAh |
Entrance 1a - 3a | Ui = 16V, Ii = 1A, Li = 0, Ci = 0 |
Exit 1b - 3b | Uo = 16 V, Io = 2 A, Po = 8.01 W, Lo = 150 µH, Co = 9 µF |
Exit 2b - 3b | Uo = 16 V, Io = 0.247 A, Po = 0.99 W, Lo = 8 mH, Co = 12 µF |
Charging voltage | 15V for 15 hours |
Final discharge voltage | 9V |
Final charge voltage | approx. 15V |
Charging temperature | from +50C to +400C |
Discharge temperature Durability | from -200C to +450C approx. 800 charging cycles or 2 years |
Degree of protection | IP20 |
Dimensions | 115x44x60mm |
Mass | approx. 0.56 kg |
