12ZZI-xx/03/xx i 12ZZI-1,5/03/1/mh

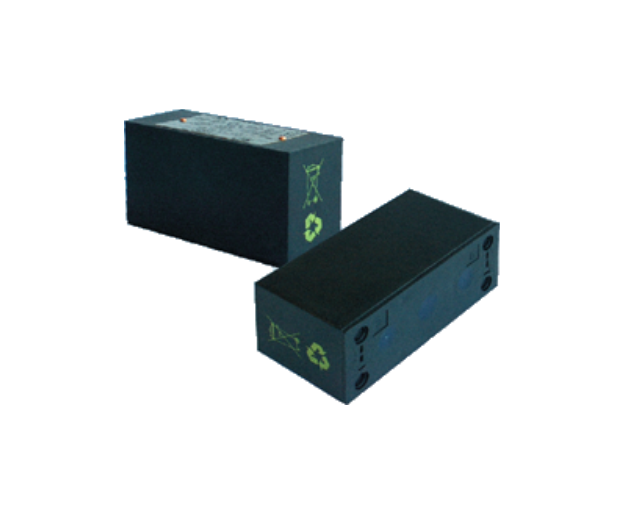

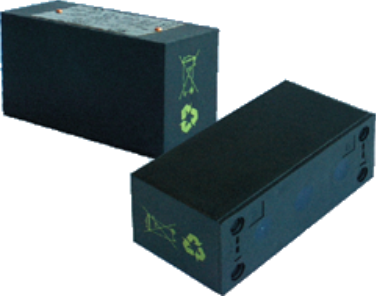

POWER SOURCE 12ZZI-xx/03/xx and 12ZZI-1.5/03/1/mh
12ZZI-xx/03/x power sources are used to power devices.
12ZZI-xx/03/x power sources are used to power devices that consume a low current in the idle state, e.g. hands-free devices.
The 12ZZI-1.5/03/1/MH power source is used to power devices that constantly consume a relatively large current, e.g. microprocessor controllers.
Used:
- in the sources 12ZZI-07/03/Cont – 10 x 700 mAh NiCd battery pack
- in the sources 12ZZI-07/03/MH – NiMH 10 x 700 mAh battery
- in the sources 12ZZI-1.5/03/MH, 12ZZI-1.5/03/1/MH – NiMH battery 10 x 1500 mAh
Nominal voltage | 12V |
Nominal capacity: | |
12ZZI-07/03/xx | 700mAh |
12ZZI-1.5/03/MH | 1500mAh |
12ZZI-1.5/03/1/MH | 1500mAh |
Entrance 1a - 3a | Ui = 16V, Ii = 1A, Li = 0, Ci = 0 |
Exit 1b - 3b | Uo = 16 V, Io = 1.95 A, Po = 7.8 W, Li = 0, Ci = 0, Lo = 160 µH, Co = 16 µF |
Exit 2b - 3b | Uo = 16 V, Io = 0.195 A, Po = 0.8 W, Li = 0, Ci = 0 Lo = 11 mH, Co = 16 µF |
Charging current or voltage: | |
12ZZI-07/03/xx | 70 mA for t = 15 h |
12ZZI-1.5/03/MH | 150 mA for t = 15 h |
12ZZI-1.5/03/1/MH | 15 V for t = 15 h |
Fast charging current: | |
12ZZI-07/03/Cont | 233 mA for t = 4.5 h |
12ZZI-07/03/MH | 0.7 A for t = 1.2 h |
12ZZI-1.5/03/MH | 1 A for t = 1.8 h |
Final discharge voltage | 10V |
Final charge voltage | approx. 15V |
Charging temperature | from +5°C to +40°C |
Discharge temperature | from -20°C to +45°C |
Durability | approx. 1000 charging cycles or 2 years |
Degree of protection | IP20 |
Dimensions | 115x44x60mm |
Mass | approx. 0.56 kg |
