POWER SUPPLY ZIS-x/10/y, ZIS-x/10/y/T, ZIS-x/10/y/L, ZIS-x/10/y/TL
The intrinsically safe mains power supply is designed to power intrinsically safe devices in underground mining facilities.
The ZIS-x/10/y type power supply is designed to power intrinsically safe devices in underground mining plants, with the "ib" output protection degree, M2.

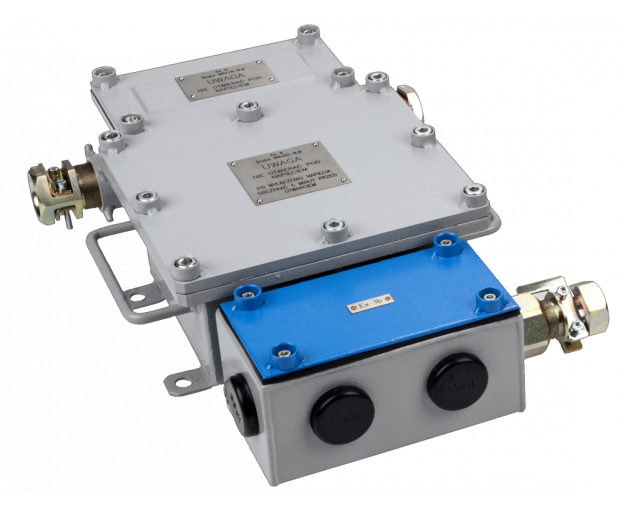

The power supply is housed in a durable metal housing covered with an anti-corrosion galvanic coating and powder coating, which has three chambers: the upper one – for connecting the mains power supply (pass-through), the middle one – for housing the power supply electronics assembly, and the lower one – for connecting the output circuits.
The power supply is available in 4 main versions:
ZIS-x/10/y – basic version with relay contact to confirm output voltage. Supply voltage range 42-230Vac.
ZIS-x/10/y/ T – version with added RS485/Modbus communication module. Communication allows remote reading of power supply parameters and the ability to remotely turn off the output voltage.
ZIS-x/10/y/L and ZIS-x/10/y/TL – versions with similar functionality adapted to low-voltage power supply in the range of 24-42Vac, 24-60Vdc.
Each power supply has an LED to indicate the operating status of the power supply.
Each power supply comes in any combination of output current and voltage, as shown in the table below.
Output and intrinsically safe parameters depending on the version | ||||||
ZIS-15/10/1.45 | ZIS-15/10/0.85 | ZIS-12/10/1.45 | ZIS-12/10/0.85 | ZIS-12/10/1.9 | ZIS-15/10/1.9 | |
Output voltage | 15V +/-0.4V | 15V +/-0.4V | 12V +/-0.4V | 12V +/-0.4V | 12.2V -0.7V +0.2 | 15.2V -0.7V +0.2 |
Rated load current | 1.45A | 0.85A | 1.45A | 0.85A | 1.9A | 1.9A |
Output voltage ripple max. /for Uzas=38Vac/ | 100mVpp | 100mVpp | 100mVpp | 100mVpp | 100mVpp | 100mVpp |
Uo | 15.4V | 15.4V | 12.6V | 12.6V | 12.6V | 15.8V |
Io | 1.5A | 1A | 1.5A | 1A | 2A | 2A |
Lo | 290μH 1) | 290μH 2) | 290μH 1) | 290μH 2) | 200μH 3) | 115μH 4) |
What | 12μF 1) | 12μF 2) | 12μF 1) | 12μF 2) | 10.5μF 3) | 6.2μF 4), 5) |
- Alternatively – cable with core cross-section ≤ 4mm 2, up to 450m long
- Alternatively – cable with core cross-section ≤ 4mm 2, of unlimited length
- Alternatively – cable with core cross-section ≤ 4mm 2, up to 270m long
- Alternatively – cable with core cross-section ≤ 4mm 2, up to 280m long
- For low voltage versions ZIS-15/10/1.9/L and ZIS-15/10/1.9/TL Co=6.5μF
Ad 3) and 4) it is permissible to use a cable with a core-core inductance of L≤0.8mH/km and a core-core capacitance of C≤259nF/km
Technical data | |
Parameter name | Value (unit) |
Nominal supply voltage ZIS-x/10/y | 42V - 230VAC 50-60Hz |
Maximum supply voltage Um (ATEX) | Um = 250V |
Nominal supply voltage ZIS-x/10/y/L | 24 – 42VAC 50-60Hz, 24 - 60VDC +/- 5% |
Maximum supply voltage Um (ATEX) | Um = 66V |
Maximum power (versions 1-4, 11-14) | <60VA, 50W |
Maximum power (versions 5-6, 11-15) | <70VA, 60W |
ATEX marking | I M2 Ex db ib [ib] I Mb |
EC type examination certificate number | FTZU 09 ATEX 0042X |
Output voltage and current stabilization speed (for worst condition: ΔI=1.45A & ΔU=15V) | type 6.5ms. |
Power supply start time typ. | <2sec. |
Ambient temperature range | -20°C to 40°C |
Permissible humidity (at 40°C) | 95% |
Degree of protection | IP54 |
Mass | 14kg |
External dimensions | 425mm x 315mm x 122mm |
