ZIS-x/04/x

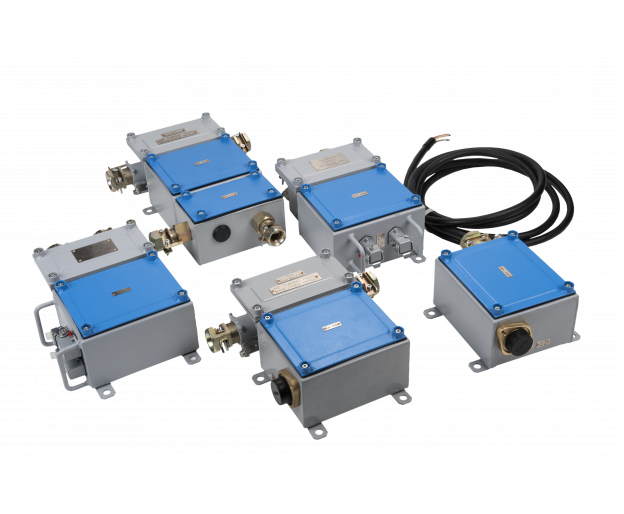

POWER SUPPLY ZIS-x/04/x
The basic function of the ZIS-x/04/x power supplies is to provide a constant intrinsically safe voltage intended to power devices in underground mines.
| ZIS-x/04/x/Z | ZIS-x/04/x/W | ZIS-x/04/x/K | |
Connecting element | connectors | inlets | with cable |
Supply voltage | 42V -15% to 230V +10% | ||
Supply voltage frequency | 50Hz or 60Hz | ||
Power cord type and length | OnGcekżi-G 3x2.5mm² - 3m | ||
Power consumption | ≤40VA | ||
Degree of protection | IP54 | ||
Operating temperature range | from +5°C to 40°C | ||
Relative humidity at operating temperature 40°C | up to 95% | ||
External dimensions | 280x300x122mm | 425 x 315 x 122mm | 200x300x122mm |
Mass | 12kg | 14kg | 9kg |
ZIS-5/04/3/x | |||
Output voltage | 5V ±0.2V | ||
Rated load shedding current | 2.2A | ||
Maximum output voltage ripple | 50mVpp (for Uzas=35.7Vac) | ||
Output circuit parameters | Uo=5.4V, Io=3A, Lo=10µH, Co=3µF | Uo=5.4V, Io=3A, Lo=10µH, Co=3µF | |
ZIS-12/04/2/x | |||
Output voltage | 12V ±0.5V | ||
Rated load shedding current | 1.5A | ||
Maximum output voltage ripple | 100mVpp (for Uzas=35.7Vac) | ||
Output circuit parameters | Uo=12.6V, Io=2A, Lo=16µH, Co=1.5µF | ||
ZIS-15/04/1.5/x | |||
Output voltage | 15V ±0.5V | ||
Rated load shedding current | 1.1A | ||
Maximum output voltage ripple | 100mVpp (for Uzas=35.7Vac) | ||
Output circuit parameters | Uo=15.8V, Io=1.5A, Lo=20µH, Co=1.2µF | ||
ZIS-24/04/1/x | |||
Output voltage | 24V ±15V | ||
Rated load shedding current | 0.75A | ||
Maximum output voltage ripple | 100mVpp (for Uzas=35.7Vac) | ||
Output circuit parameters | Uo=25.2V, Io=1A, Lo=25µH, Co=0.8µF | ||
