ZISD-13

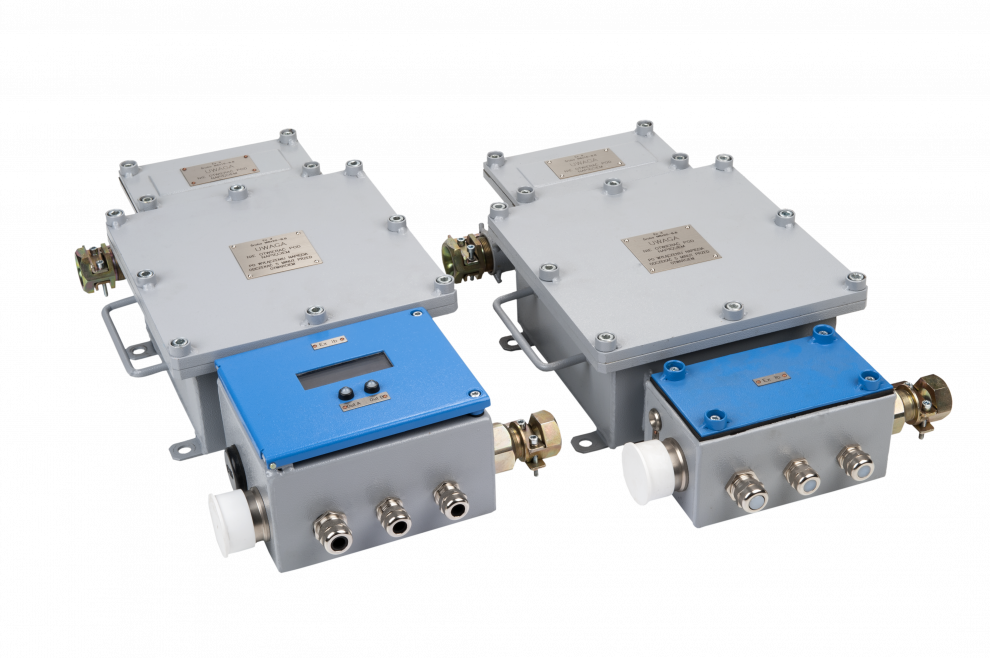

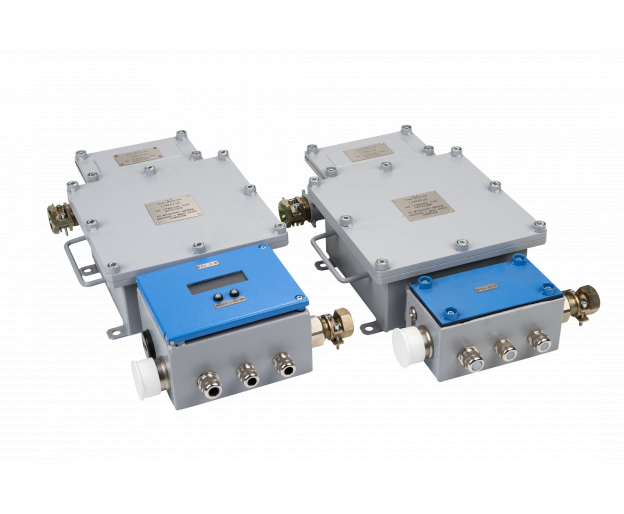

ZISD-13 ITRINSICALLY SAFE PSU
CERTIFICATE:
The ZISD-13 two-power supply PSU (power supply unit) is intended for simultaneous power feeding of IS equipment from two independent output feeders. The solution is intended for use in methane and/or coal dust explosive atmospheres. This is a Cat. M2 device with an IS output rated at „ib”.
FEATURES/TECHNICAL SPECIFICATION
|
Rated supply voltage |
42V ÷ 250VAC + 0% -5%, |
|
Supply voltage frequency |
50-60Hz |
|
Maximum power output |
<75W |
|
ATEX mark |
I M2 Ex d [ib] I Mb |
|
EC Type Test Certificate no. |
TEST 14 ATEX 0002X |
|
Typical PSU startup time |
<2s. |
|
Ambient temperature range |
between -20oC and 40oC |
|
Permissible humidity at +40°C |
95% |
|
Protection rating |
IP54 |
|
Weight |
24kg |
|
Outer dimensions |
550 x 320 x 140mm |
