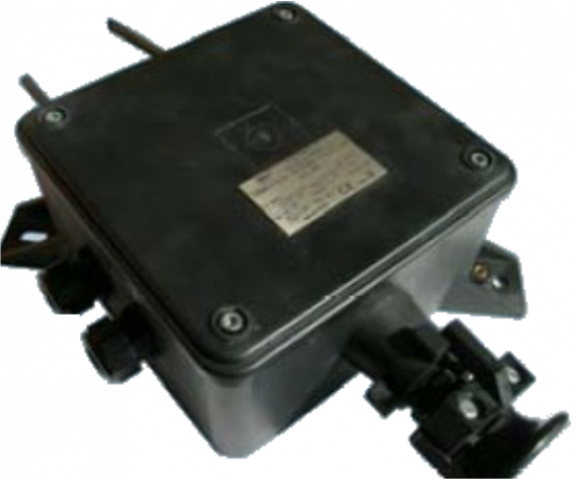

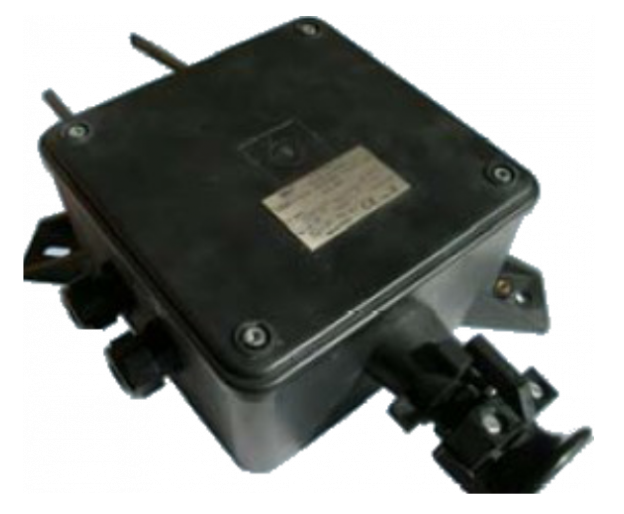

TRANSFORMER POWER SUPPLY FOR CONTROL CIRCUITS TOS-01/24
CERTIFICATE:
The power supply is designed to supply 24 V AC voltage to devices in automation systems of machines and devices, e.g. in hoistway devices of mine shafts. The power supply is supplied with 230 V or 127 V.
FEATURES/TECHNICAL SPECIFICATION
Degree of protection | IP65 |
Operating temperature range | from -5°C to +40°C |
Mass | 3.5kg |
Humidity relative to air | Up to 95% |
Permissible deviation from the vertical | any position |
Height above sea level | -2000m to 1000m |
U1 | 230/127V |
U2 | 24V |
Uz | 8% |
Explosion-proof construction feature | Ex IM2 Ex e mb I |
