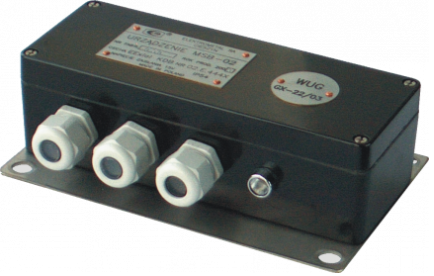

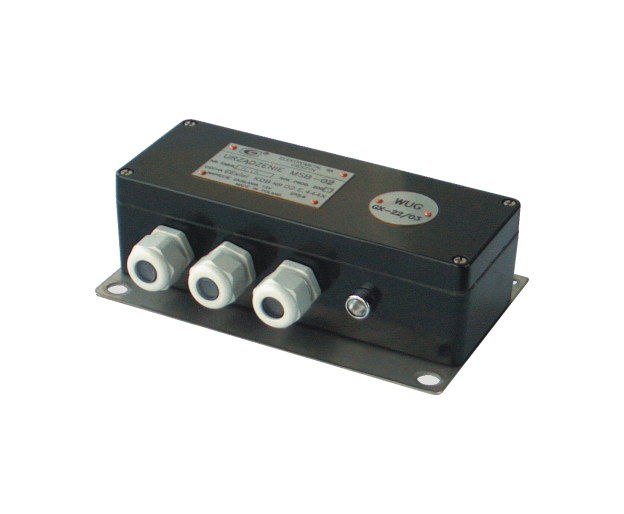

MSB-02/1 COUPLING DEVICE
The MSB-02/1 coupling device is used in conveyor automation systems.
It enables cooperation of the "BOCIAN-2p" spoil accumulation sensor with a conveyor automation system, e.g. ELSAP-01/2 equipped with devices with an input adapted to work with UML-01/2 contact sensors or with the UBL-01/2 locking device.
- cooperation with the "Bocian-2p" spoil accumulation sensor,
- cooperation with a local microprocessor device, e.g. UML-01/2 type,
- cooperation with the UBL-01/2 type locking device,
- cooperation with category "ib" control circuits of approved devices,
- optical indication of the device's operating status (light-emitting diode),
- selection of the type of output circuit using the SW switch.
The MSB-02/1 device acts as an intermediary between the "Bocian-2p" type spoil accumulation sensor and the conveyor automation system, e.g. ELSAP-01/2 type. In the normal operating state, the LED diode lights up and the output terminals of the device are shorted. Detection of a spoil accumulation by the "Bocian-2p" sensor causes the output terminals to open, the LED diode goes out. The type of output circuit (contact, contact with diode, contact with ZRK) can be selected with the SW switch.
Supply voltage (terminals Z+, Z-) | 15V DC |
Current consumption (terminals Z+, Z-) | max. 50mA |
Surge sensor type | "BOCIAN-2 p" with a transformer with a primary winding inductance of 3.0-5.0 H |
Delay in operation | approx. 1 sec |
Types of output circuit | "clean" contact, diode contact, ZRK contact |
Outer diameter of connecting cables | from 6 to 12 mm |
Distance of the sensor from the MSB-02/1 device | ≤20m |
Operating temperature range | from +5°C to +40°C |
Relative humidity at 40°C | up to 95% |
Degree of protection | IP54 |
Dimensions and weight | 190 x 120 x 60 mm, 0.5 kg |
Input circuit parameters | |
terminals Z+, Z- | Ui = 15.8 V, Ii = 0.7 A, Li = 0µH, Ci = 0µF |
terminals +Wn, -Wn | Ui = 40 V, Ii = 0.3 A, Li = 0µH, Ci = 0µF, Pi = 3.3 W |
-RW, GND | Uo = 15.8 V, Io = 9.2 mA, Lo = 20 mH, Co = 2 µF |
- WN, WN, WND | Ui = 60 V, Ii = 0.2 mA, Pi = 3.3 W, Li = 0, Ci = 0 |
EC Type Examination Certificate No. | FTZÚ 04 ATEX 0269X |
Explosion-proof construction feature | Ex I M2 Ex ib I Mb |
