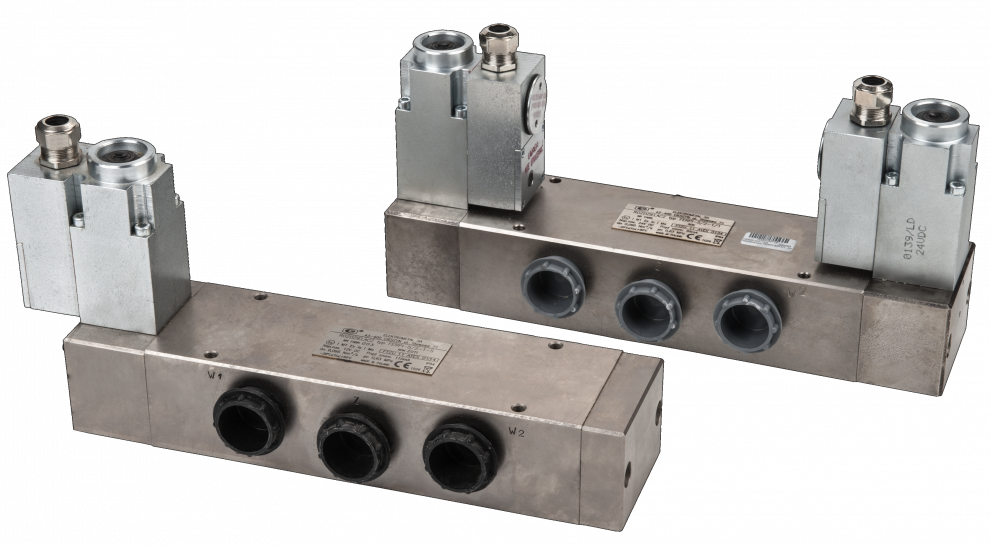

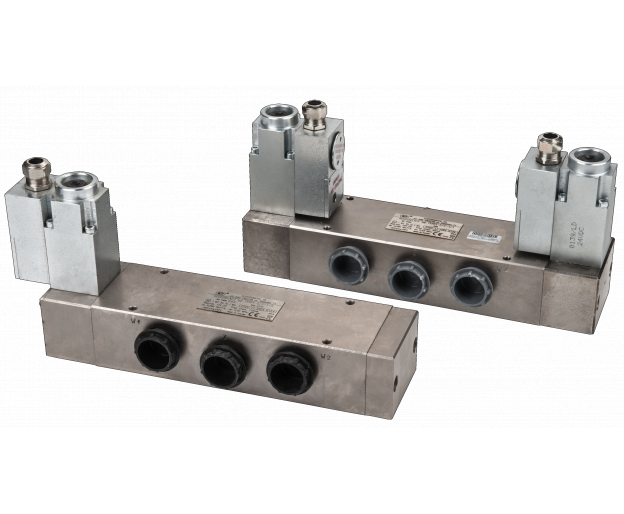

FERPI-5 ELECTROPNEUMATIC DISTRIBUTOR INTRINSICALLY SAFE
FERPI type spark-safe electropneumatic distributors are used in machines and devices operating in underground mining excavations.
FERPI type spark-safe electropneumatic distributors are designed for electrical control of the flow direction of compressed air supplying receivers such as actuators and pneumatic motors used in machines and devices operating in underground mining excavations:
- at risk of methane explosion with a "b" or "c" degree of explosion hazard,
- Class A and B coal dust explosion hazard.
FERPI type intrinsically safe electropneumatic distributors are category M1 devices and their power supply does not have to be switched off in the event of an explosive atmosphere.
Technical data of intrinsically safe pneumatic distributors type:
FERPI-5/2-1-S and FERPI-5/2-1 | ||||
Parameter name | Value (unit) | |||
Nominal air flow rate | Q n | Nl/min Nm 3 /s | 5700 0.095 | |
Maximum operating pressure | p max | MPa | 1 | |
Nominal pressure | p n | MPa | 0.63 | |
Minimum pressure | p minutes | MPa | 0.20 | |
Lubrication | Oil mist – mineral oil free from water and acids with a viscosity of 2-4ºE/50ºC HL32 | |||
Nominal passage diameter | D n | mm | 25 | |
Recommended filtering accuracy on power supply | δ | μm | 25 | |
Relative humidity | - | - | up to 95% | |
Ambient temperature range | T about | °C | -20 - +60 | |
12V DC | Operating supply voltage | AT | V | 12-15 DC |
Rated current | AND n | I have | 110 -140 | |
Maximum voltage | AT and | V | 15.8 | |
Maximum current of the power supply used | AND and | AND | 2 | |
Over current protection (fuse) | AND b | I have | 250 | |
24V DC | Operating supply voltage | AT | V | 24 DC |
Rated current | AND n | I have | 65 | |
Maximum voltage | AT and | V | 25.2 | |
Maximum current of the power supply used | AND and | AND | 1 | |
Over current protection (fuse) | AND b | I have | 125 | |
Allowable amount of overdrive | ƒ max | number of cycles/min | 60 | |
Maximum duration of the solenoid operating cycle | t max | s | continuous work | |
Housing protection class | - | - | IP54 | |
Type of explosion-proof construction | - | - | Ex ia I Ma | |
Device group and category | - | - | And M1 | |
ATEX marking - for electromagnet | I M1 Ex ia I Ma | |||
EU Type Examination Certificate Number | FTZÚ 11 ATEX 0134 | |||
Type of connection thread | Cylindrical pipe thread G1” | |||
Type of construction | Slide, valve | |||
Indication of voltage presence on the coil | LED diode | |||
Mass FERPI-5/2-1-S FERPI-5/2-1 | m | kg | 8.8 11 | |
