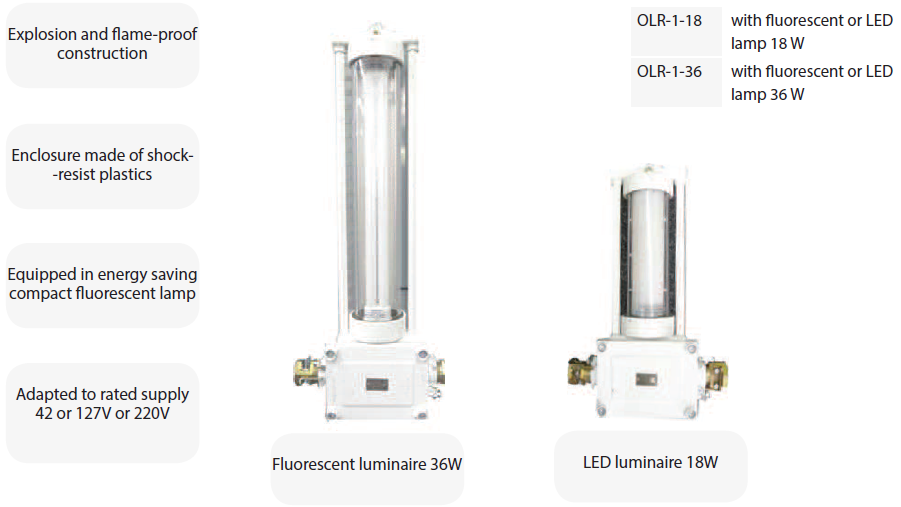

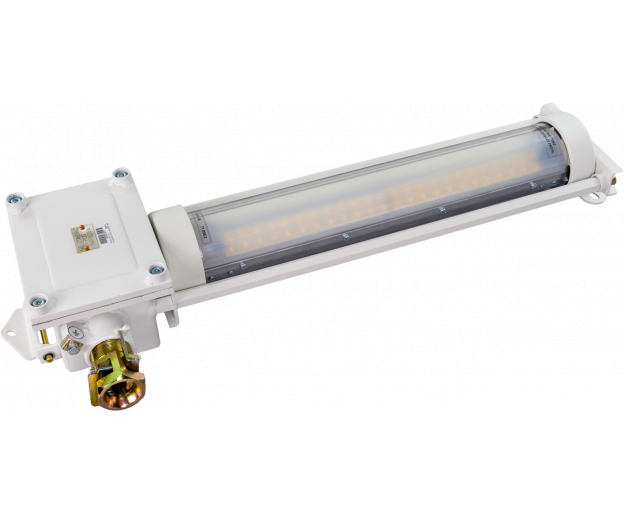

Explosion-proof lamp OLR-1 is available with

LED’s as a source of light:

• OLR-1-18 – LED’s of 12W power and voltage between 100-250V or 22-50V,
• OLR-1-36 – LED’s of 24W power and voltage between 100-250V or 22-50V,

or with fluorescent tubes:

• OLR-1-18 – fluorescent tube of 18W and voltage between 100-250V or 22-50V,
• OLR-1-36 – fluorescent tube of 36W and voltage between 100-250V or 22-50V.

Lamp available with or without a light matting element a to reduce the glare effect. It allows to reduce the uncomfortable  visual sensation, however it also may cause a light intensity drop for about 20-30%.

Source of light: LED

Product	OLR-1-18	OLR-1-36
Version	230V ver. LED 42V ver. LED	230V ver. LED 42V ver. LED
Voltage	100-250 VAC, 140-340VDC, 22-50 VAC/DC	100-270 VAC, 140-380VDC, 22-50 VAC/DC
Frequency	50-60 Hz (AC) or direct voltage (DC)
Power	12W	24W
Maximum current consumption	0.6A for 24 VDC 0.6A for 42 VAC 200 mA for 133 VAC 130 mA for 230 VAC	1.7A for 24 VDC 1.1A for 42 VAC 220 mA for 133 VAC 130 mA for 230 VAC
Luminous flux of the light source	1500 lm	3000 lm
ATEX marking	I M2 Ex db I Mb
Ingress protection	IP54
Cable gland	WKE 17-23
Ex blanking plug	72.090
Max. conductor cross-section	4mm2
Terminals	Terminal strip type 616M
Current carrying capacity of the terminals	25A
Protection class	I
Ambient temperature	-10oC up to +40oC
Acceptable humidity at +35oC	95%
Weight	8.7 kg	9.8 kg
External dimensions	510 x 285 x 115mm	700 x 285 x 115mm

Source of light: fluorescent tube:

Product	OLR-1-18	OLR-1-36
Voltage	230V, 127V or 42V
Frequency	50-60 Hz
Power consumption	18W	36W
Light source	DULUX L18 W/21 or PL-L 18 W/840	DULUX L36 W/21 OR PL-L 36 W/840
ATEX marking	I M2 Ex d I Mb
Luminous flux of the light source	1200 lm	2900 lm
Supply cable	5 x 4 mm2
Cable glands	WKE 17-23
Current carrying capacity of the terminals	20A
Terminals	Terminal strip type 616M
Ingress protection	IP54
Protection class	I
Ambient temperature	-10oC ≤ Ta ≤ +40°C
Acceptable humidity at +35oC	up to 95%
External dimensions	510 x 285 x 115 mm	700 x 285 x 115 mm
Mounting holes distance	487 mm	677 m
Weight	8.7 kg	9.8 kg
