OLR-2D

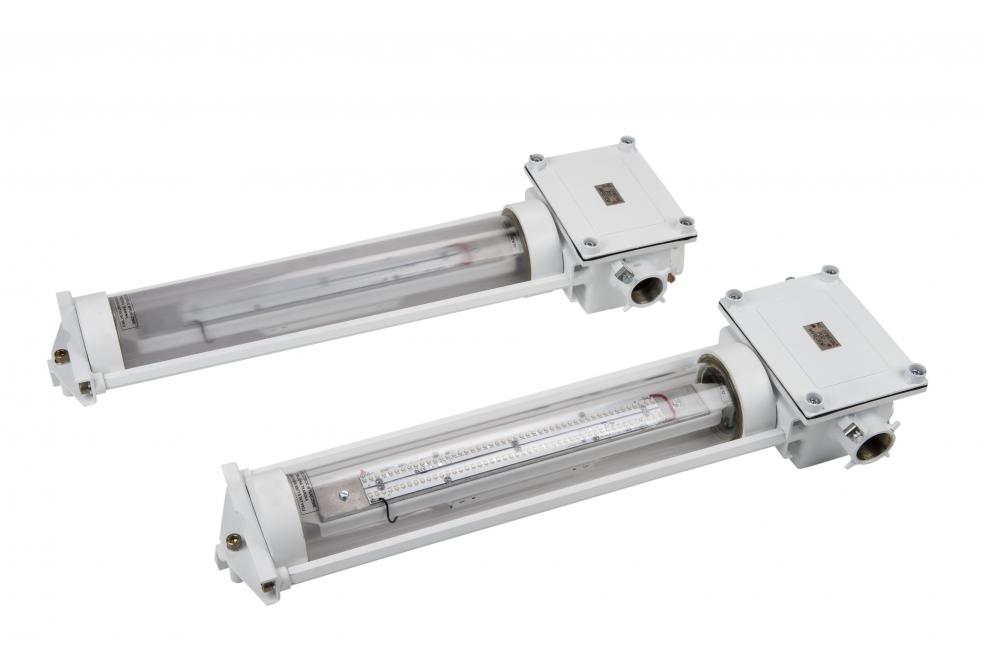

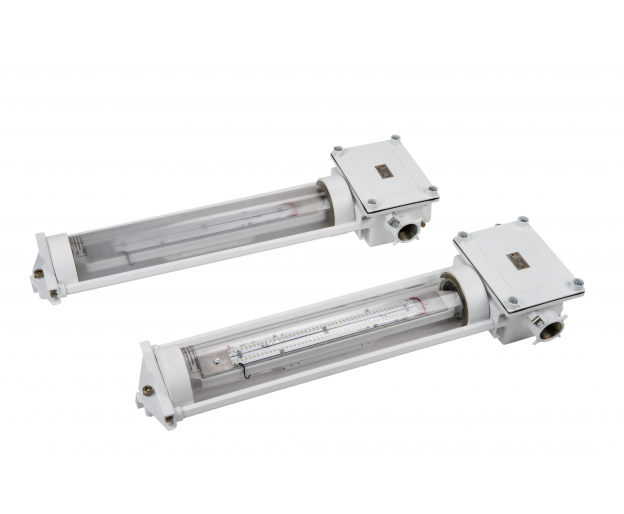

OLR-2D double approval lamp
CERTIFICATE:
I M2 Ex de I Mb
II 2G Ex de IIB+H2 T6 Gb
II 2D Ex tb IIIC T70oC Db; IP65
The OLR-2 is one of the very few mining lamps with the double approval for use in areas where methane and coal dust may be present with hydrogen. That is why it can be used to illuminate traction battery charging stations, or underground fuel and lubricant storage rooms. The light fixture is Cat. M2.
FEATURES/TECHNICAL SPECIFICATION
| Parameter | Value |
|
Supply voltage |
230V ±10% |
|
Supply voltage frequency |
50/60 Hz |
|
Current load |
0,14 A |
|
Power factor |
0,95 |
|
Light source |
LED |
| Light source power | 24W |
|
Light source luminous flux |
3000 lm |
|
Ingress protection |
IP65 |
|
ATEX Certificate no. |
FTZÚ 13 ATEX 0012X |
|
Cable gland |
WKE 17-23 |
|
Fire-proof plug |
72.090 |
|
Wire size |
1,5 - 4 mm2 |
|
Terminals |
Type 616M terminal strip |
| Terminal strip | Phoenix Contact |
| Currenty carrying capacity of the terminals | 20A |
| Protection class | I |
| Ambient temperature range | -10oC up to +40oC |
| Acceptable humidity at +35oC | 95% |
| Weight | 8,7 kg |
| Dimensions | 703 x 285 x 117 mm |
