OLC-1

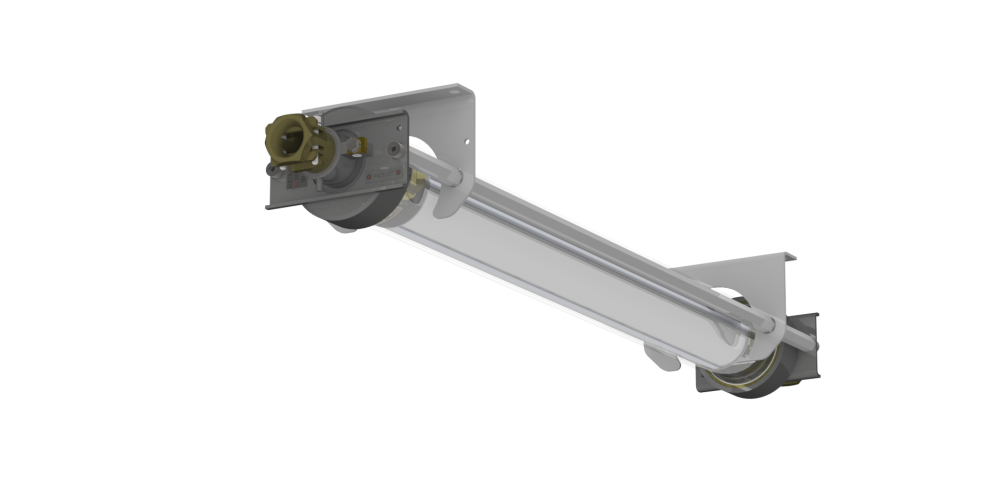

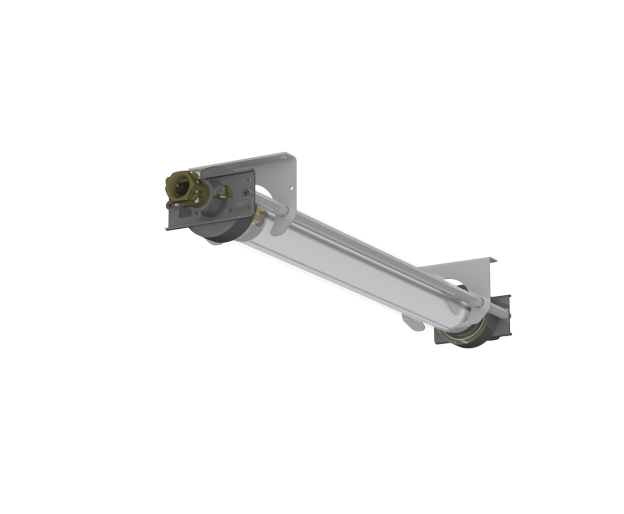

OLC-1 EXPLOSION-PROOF LAMP
CERTIFICATE:
I M2 Ex db I Mb
Explosion-proof mining lamp. ATEX certified product of Group I, Category M2.
Lamp designed for mining longwalls, tunnels, underground railway platforms and all areas with explosive environments. For areas with methane and coal dust explosion hazard.
FEATURES/TECHNICAL SPECIFICATION
|
Parameter |
Value |
|

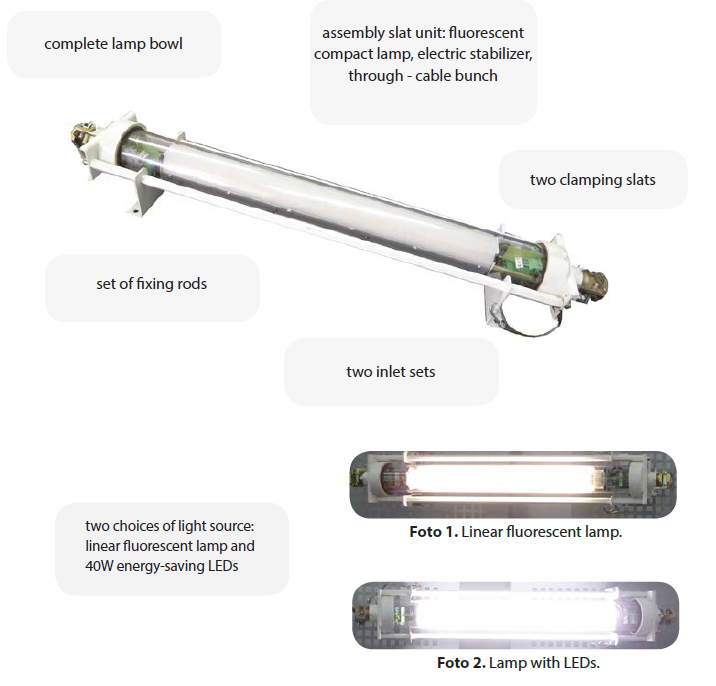

| Version | standard (fluorescent tube) | LED |
| Voltage | 230V +/-10% | 100-270V |
| Frequency | 50Hz | |
| Power consumption | 40W | 36W |
| Power factor | 0.98 | |
| Light source | DULUX L40W/21 or PL-L 40W/840 or UNIQUE-L 40W/840 Long life | LED Module |
| Luminous flux | 3500 lm | 4500 lm |
| Cap | 2G11 | - |
| ATEX marking | I M2 Ex db I Mb |
|
| Ingress protection | IP65 | |
| Cable gland | WKE 17-23 | |
| Ex blanking plug | 70.090 | |
| Max. conductor cross-section | 1.5 x 4mm2 | |
| Current carrying capacity of the terminals | 20A | |
| Protection class | I | |
| Ambient temperature | -10oC up to +40oC | |
| Acceptable humidity at +35oC | 95% | |
| Weight | 7.8 kg | |
| External dimensions | 155 x 120 x 925 mm | |
