SWIT-14

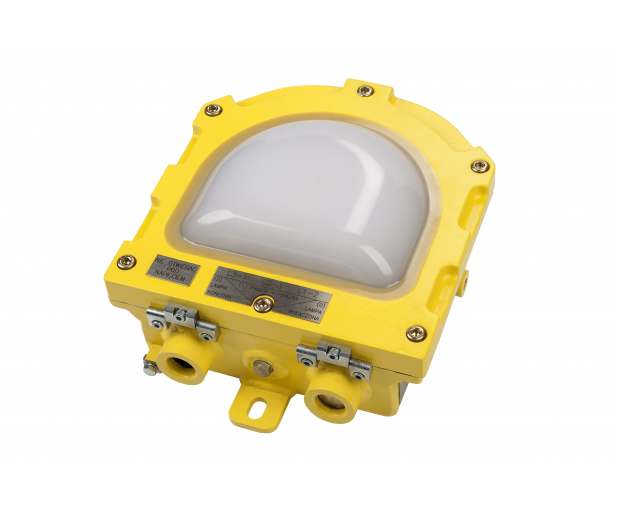

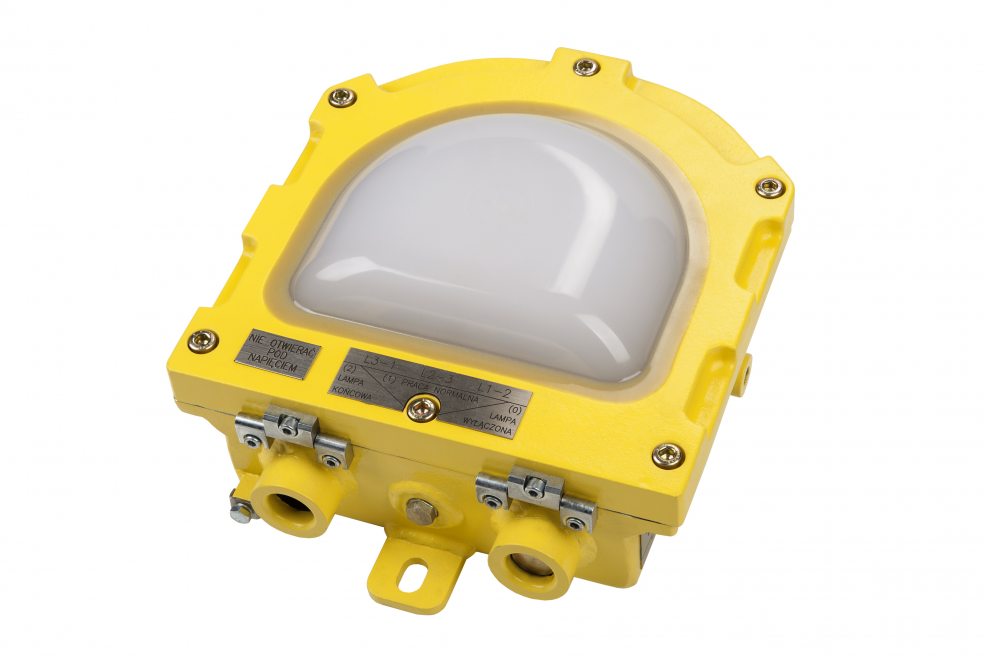

SWIT-14 LAMP FOR LONGWALLS
CERTIFICATE:
I M2 Ex db I Mb
The ŚWIT-14 lamps have been optimised for use at the powered roof supports of longwalls. The solution is intended for use in methane and/or coal dust explosive atmospheres.
FEATURES/TECHNICAL SPECIFICATION
|
Parameter |
Value |
||
|
Product name |
ŚWIT-14/ |
||
|
Version |
/230 |
/42 |
/24-230 |
|
Voltage range |
100-270V |
35-50V |
24-230V |
|
Nominal power |
max. 45W |
||
|
Frequency range |
50-60Hz |
||
|
Power factor |
min 0.9 |
min 0.5 |
min. 0,75 |
|
Ingress protection |
IP65 |
||
|
Source of light |
12 x LED |
||
|
Luminous flux of the light source |
up to 5000 lm |
||
|
Nominal CCT |
4000 K (white neutral) |
||
|
Cable gland |
WKW 17-23 |
||
|
Conductor diameter |
10 mm2 |
||
| Terminal strip | Phoenix Contact | ||
| Current carrying capacity of the terminals | 25A | ||
|
Protection Class |
I |
||
|
Working temperaturę range |
-10°C do +40°C |
||
|
Maksimum humidity (at +35°C) |
95% |
||
|
Weight |
12,0 kg |
||
|
External dimmentions |
284 x 250 x 122 mm |
||
| ATEX Certificate number | FTZU 13 ATEX 0145X | ||
