EFI-BRI-13
EFI-BRI-13

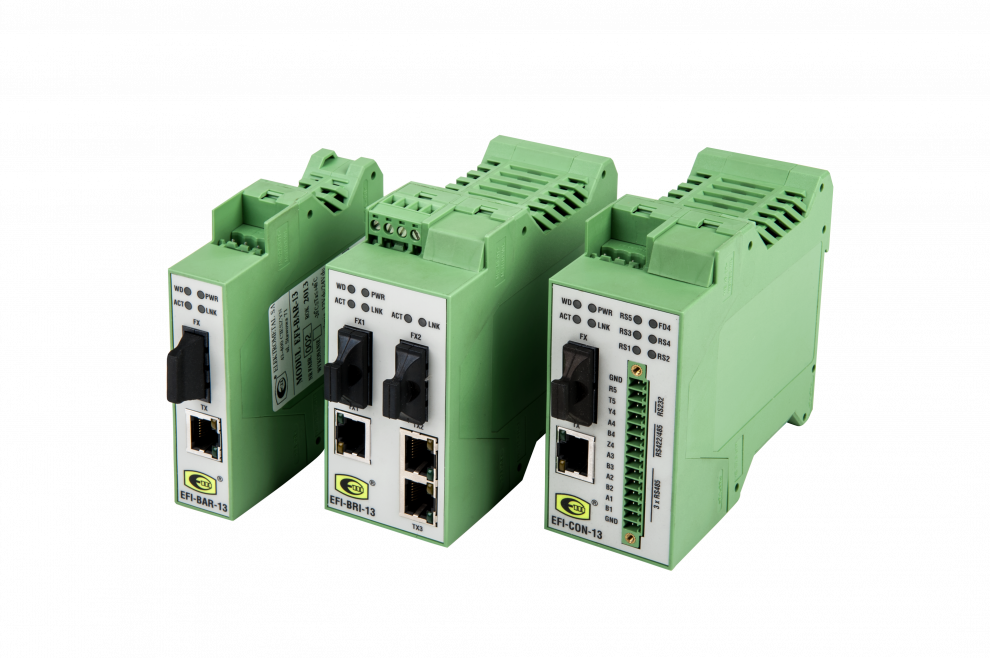

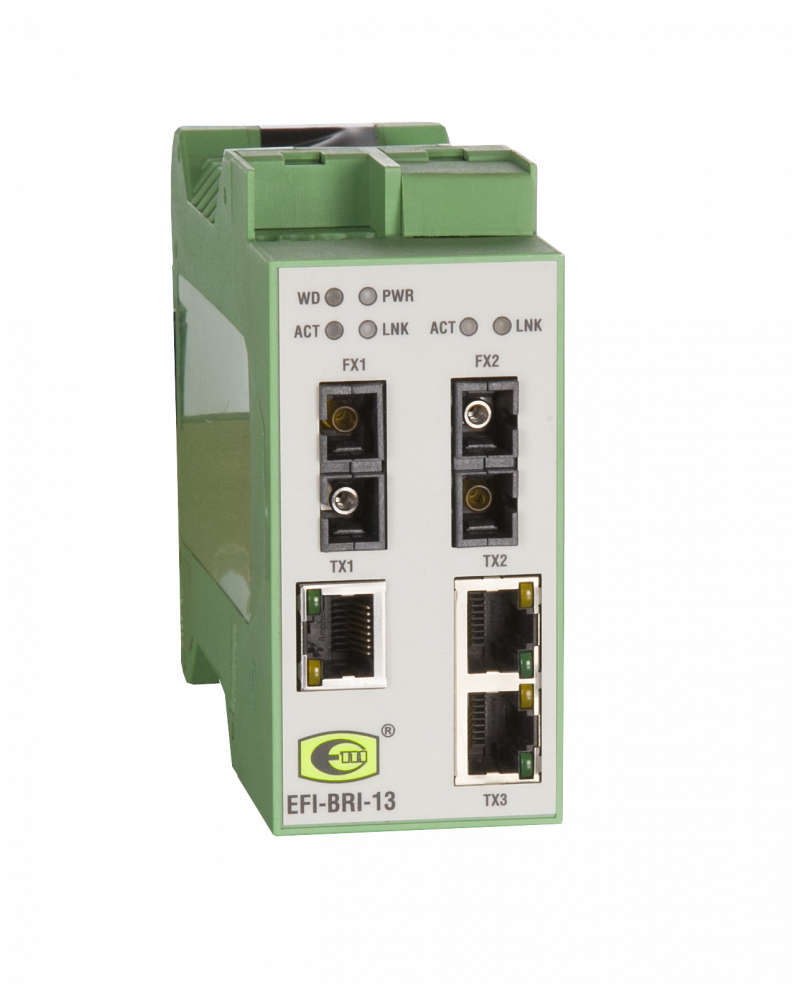

Module EFI-BRI-13 is a multiport Ethernet switch. It can be used as:
- 5-port Ethernet switch (3 x TX, 2 x FX),
- Ethernet medium converter from copper twisted pair to optical fiber,
- Ethernet medium converter from fiber optic transmission using two optical fibers to fiber optic transmission using a single optical fiber.
The module can be used as an accompanying device with "op is" fiber optic outputs (version 2) or as an intrinsically safe device (version 1).
The module is available in both intrinsically safe and standard versions. Regardless of the version, it acts as a 5-port switch. It is equipped with three RJ-45 connectors and two SC fiber-optic connectors. It allows for loop-through connection to a fiber-optic Ethernet network and connection of additional devices via RJ45 connectors.
- intrinsically safe design - all connectors are intrinsically safe,
- standard construction - only the fiber optic connectors are intrinsically safe.
| Parameter name | Value (unit) | |
| Supply voltage | execution 1 | 12÷15VDC |
| execution 2 | 12÷24VDC | |
| Maximum current consumption | 350mA | |
| Number of Ethernet ports - TX standard | 3 | |
| Number of Ethernet ports - SC ports | 2 | |
| Maximum fiber optic length for transceiver Dual Fiber - Option N2 | 30km (see note) | |
| Maximum fiber optic length for transceivers single-fiber - option N3 and N5 | 15km (see note) | |
| Maximum diameter of Combicon connector cable | 2.5mm2 | |
| Operating temperature range | execution 1 | -20°C ÷ +40°C |
| execution 2 | -20°C ÷ +60°C | |
| Housing protection class | IP20 | |
| Classification of fiber optic transmitters | Class 1 | |
| Construction feature | execution 1 |  I M1 Ex ia [op is Ma] I Ma |
| execution 2 | I (M1) [Ex op is Ma] I | |
| Certificate No. | TEST 13 ATEX 0040X | |
| Module dimensions | 114.5 x 99 x 45.2mm | |
| Mass | 0.25kg | |

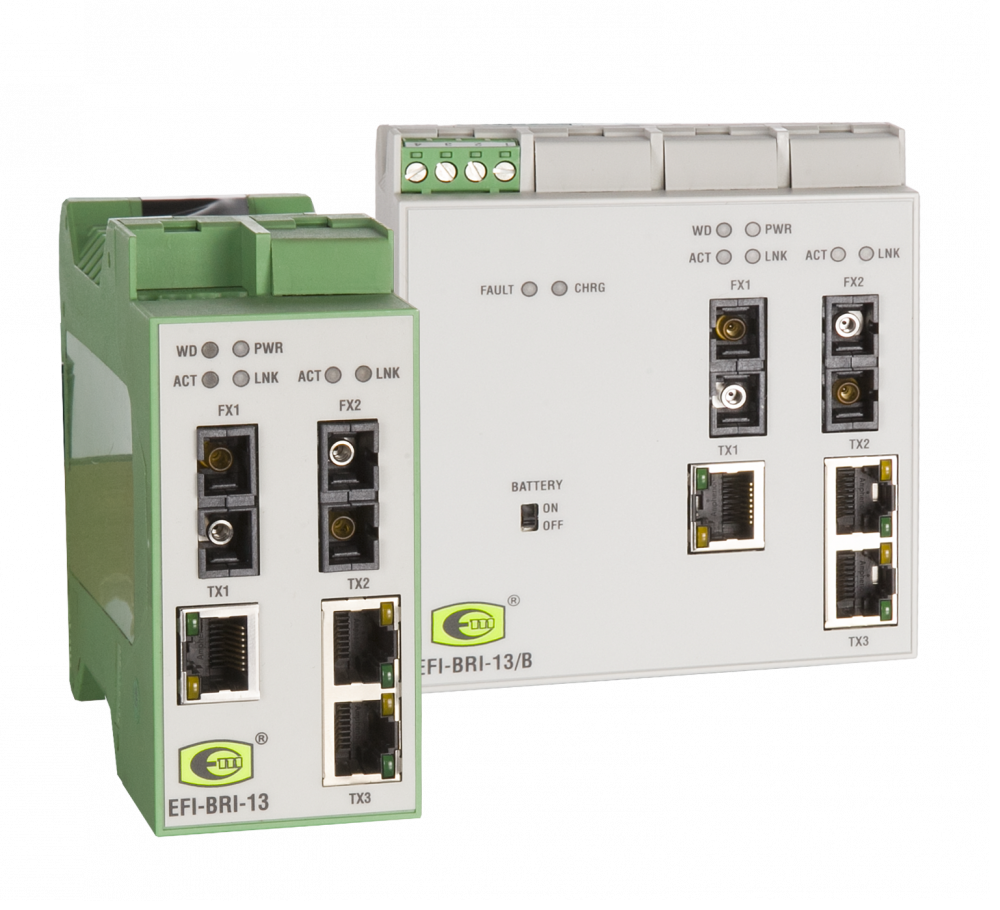

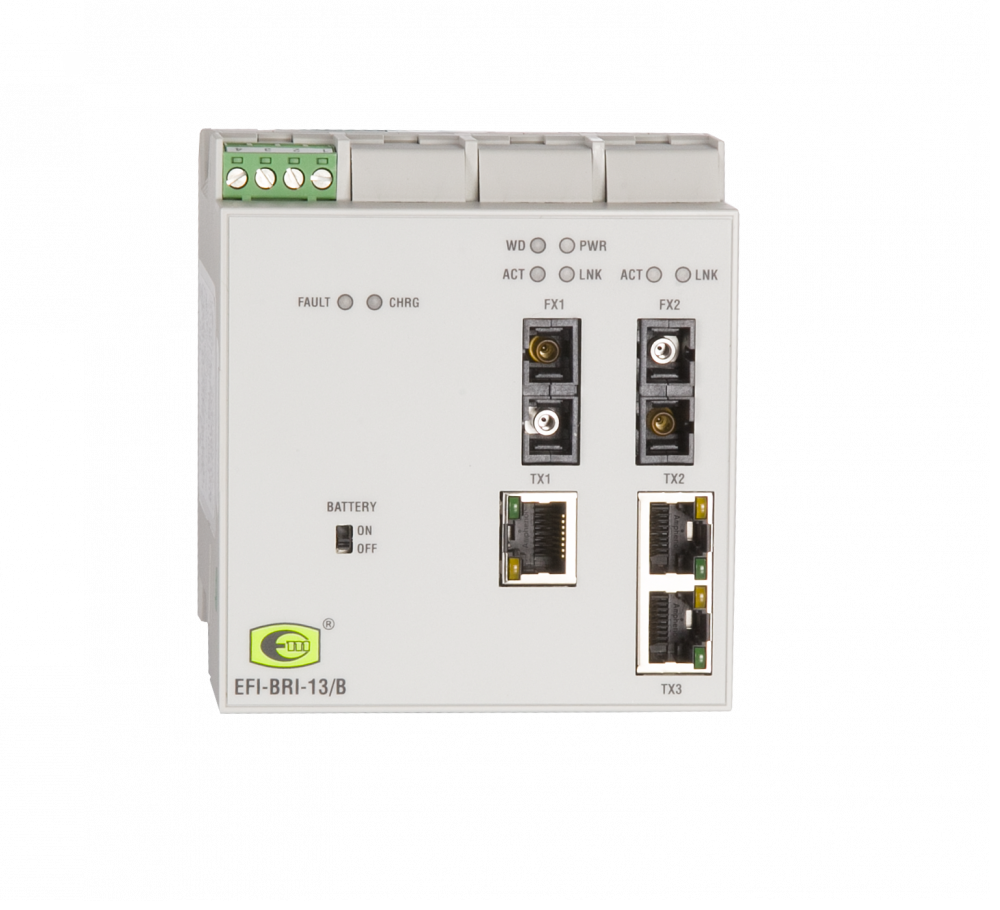

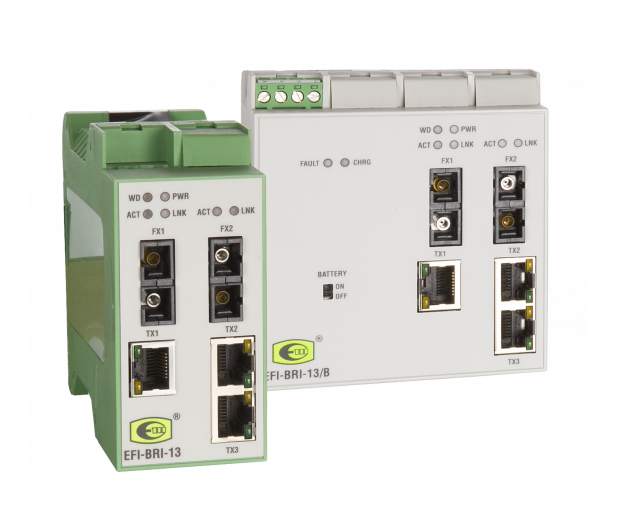

Basic parameters of the EFI-BRI-13/B module
| Parameter name | Value (unit) | |
| Supply voltage | execution 1 | 12÷15VDC |
| execution 2 | 12÷24VDC | |
| Maximum current consumption | 400mA | |
| Type of battery used | Li-Ion | |
| Minimum battery life | 8h | |
| Maximum battery charging time | 72h | |
| Number of Ethernet ports - TX standard | 3 | |
| Number of Ethernet ports - SC ports | 2 | |
| Maximum fiber optic length for transceiver Dual Fiber - Option N2 | 30km (see note) | |
| Maximum fiber optic length for transceivers single-fiber - option N3 and N5 | 15km (see note) | |
| Maximum diameter of Combicon connector cable | 2.5mm2 | |
| Operating temperature range | execution 1 | 0°C ÷ +40°C |
| execution 2 | 0°C ÷ +45°C | |
| Housing protection class | IP20 | |
| Classification of fiber optic transmitters | Class 1 | |
| Construction feature | execution 1 | I M1 Ex ia [op is Ma] I Ma |
| execution 2 | I (M1) [Ex op is Ma] I | |
| Certificate No. | TEST 13 ATEX 0040X | |
| Module dimensions | 114.5 x 99 x 45.2mm | |
| Mass | 0.6kg | |
Attention: The maximum fiber optic lengths given in the table above correspond to the parameters given in the catalog cards of the fiber optic transceiver manufacturer.
