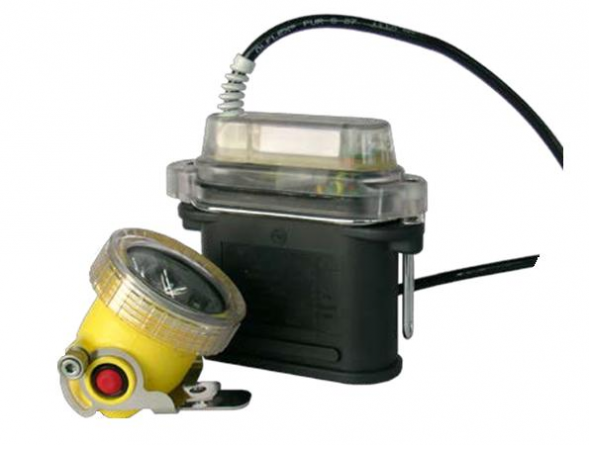

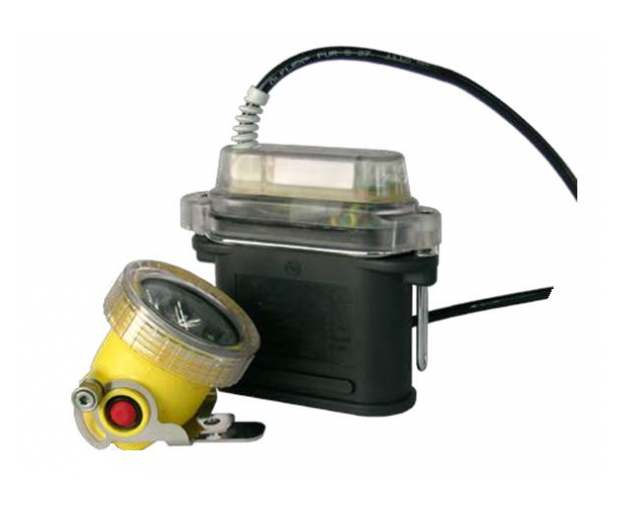

SMARTLIGHT-05/M2/L HELMET LAMP

Lamp SMARTLIGHT-05/M2/L contains significant innovations, as the light source is designed with a high-intensity diode system, and the power source is a small, maintenance-free battery. These two elements have led to a significant reduction in the size and weight of the lamp, which in turn has contributed to its easier use and maintenance.

The helmet lamp is equipped with a miners' personal locator transmitter and a system that guarantees automatic disconnection of the light source in the event of a power supply voltage drop in order to ensure long-term operation of the locator transmitter.

The lamp head is movable, which allows for individual adjustment of the angle of the light beam depending on the type of helmet used and the type of work performed (user preferences).

The housing of the location transmitter is equipped with a third LED diode which, in normal operation mode, informs about the correct operation of the transmitter, and in the event of a failure (damage to the head, cable), starts to glow continuously, thus providing illumination of the return route for the user.

Key Features:

• the light source lasts 100,000 hours,
• a transparent system for informing about the battery charge status,
• the ability to transmit data from the lamp to the lamp room visualization and operation supervision system,
• the light color is white and does not change when the battery discharges,
• dry, maintenance-free battery,
• low lamp weight – 1.3 kg,
• Charging can be done using an individual or multi-station charger.

LAMP

LIGHT SOURCE

CABLE

LOCATION TRANSMITTER
