ROK-6EM/B

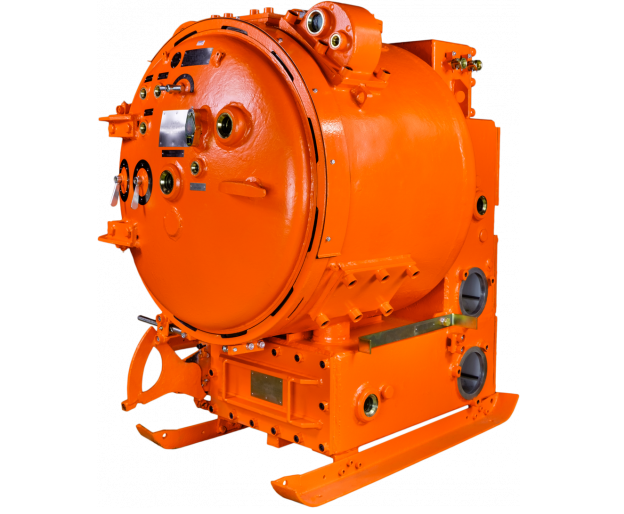

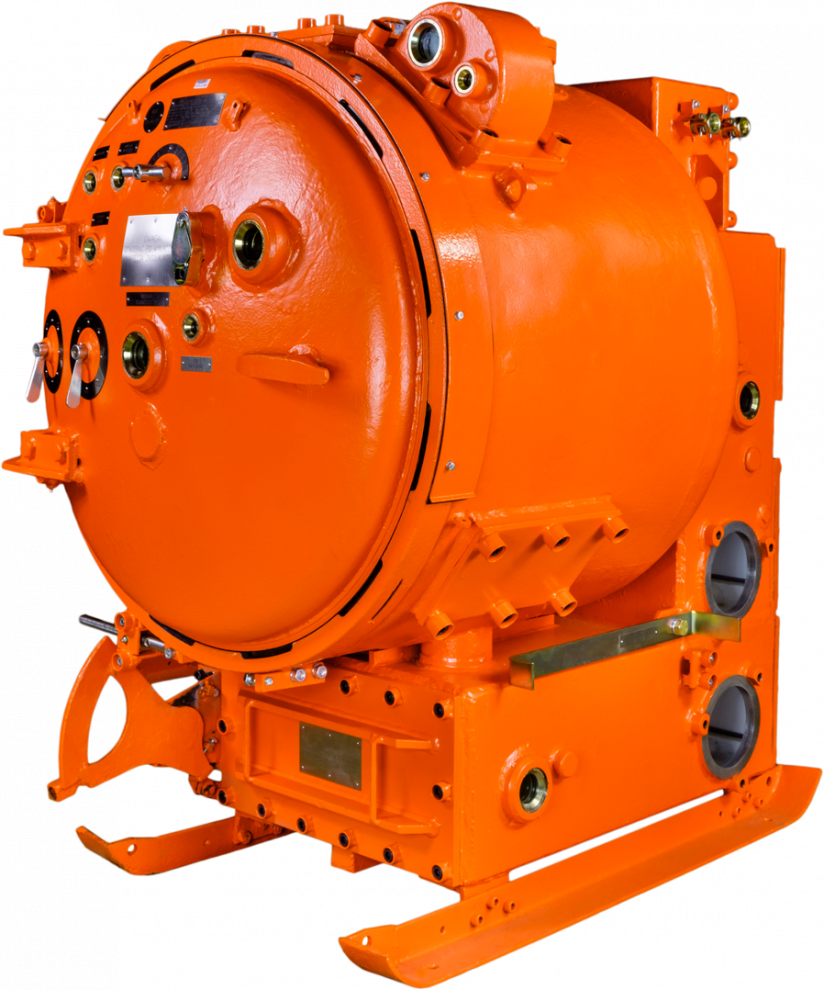

ROK-6EM/B FLAMEPROOF DISTRIBUTION BOARD
WE ALSO OFFER RETROFIT SOLUTIONS THAT ALLOW THEIR USE IN THE MODERN ROK-6EM OR ROK-6EM/A DISTRIBUTION FIELDS IN USE
TYPE e PROTECTION UNITS 2 TANGO, VACUUM CIRCUIT BREAKERS TYPE e 2 BRAVO AND TELETRANSMISSION EQUIPMENT IN PLACE OF THE CORRESPONDING OLD-TYPE COMPONENTS (OFTEN ALREADY WITHDRAWN FROM PRODUCTION).
YOU WILL FIND MORE INFORMATION HERE
The ROK-6EM/B type switchboard may consist of the following distribution panels:
- incoming intended for powering the switchboard busbars,
- outlets designed to power and control receivers in a three-phase network,
- clutch switches designed to operate as a reserve switch between two sections of the switchgear busbars.
For all versions of distribution panels, there are versions with teletransmission equipment in various variants distinguished by an additional symbol in the version designation (/WM, /WD or /WS).
In flameproof distribution bays, high-quality e2TANGO microprocessor protection units and e2BRAVO, ROLLARC medium voltage circuit breakers or contactors were used in power circuits. The use of the above-mentioned switchgear and bay controllers ensures high functionality and a high level of service safety in the energy systems of methane mines.
Nominal voltage | 6kV |
Highest operating voltage | 7.2kV |
| Rated current | max. 400 A |
| Nominal frequency | 50Hz |
Rated symmetrical short-circuit breaking current | 10 kA (ROLLARC), 16 kA (VC1, SION, VD4, e2BRAVO) |
| Rated short circuit making current | 25 kA (ROLLARC), 40 kA (VC1, SION, VD4, e2BRAVO) |
| Short circuit power | 100 MVA (ROLLARC), 160 MVA (VC1, SION, VD4, e2BRAVO) |
| Maximum mechanical durability (number of switching cycles) | 3x10 5 (ROLLARC, 250A), 3x10 4 (VC1, e2BRAVO), 10 4 (SION), 1.5x10 4 (VD4) |
Internal circuit voltage (depending on the equipment) | 100VAC, 24VAC, 130VDC, 15VDC, 24VDC, 42VAC |
| External auxiliary voltage | 24VAC, 42VAC |
| Category of intrinsically safe remote control circuits, technological interlocks and teletransmission systems | and she |
Ambient temperature | from -10°C to +40°C |
| Degree of protection | IP54 |
| Mass | approx. 1100 kg |
| Dimensions (H x W x D) | 1460x930x1270mm |
| Communication link signal standard | RS-422 / RS-485, ETHERNET |
| Electric arc resistance class | BFLR |
| Test current during arc resistance tests | 13 kA (OB 102), 16 kA (all types of covers) |
| Arc test duration | 0.5s (OB 102), 0.1s (all types of covers) |
| Category depending on the reaction to the opening of the compartment | LSC2A |
| WUG approval mark: | GX44/12 |
| EC type examination certificate number: | TEST 12 ATEX 010X + 4 Attachments |
| Explosion-proof construction feature: | |
| for versions without fiber optic bus: | Ex I M2 Ex d [ia] I Mb |
| for versions with a fiber optic bus type is: | Ex I M2(M1) Ex d [ia op is Ma] I Mb |
| for versions with a pr type fiber optic bus: | Ex I M2(M1) Ex d [ia op pr Mb] I Mb |
